Navigation System Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Global Positioning System (GPS) Antenna
GM1499752Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Global Positioning System (GPS) Antenna

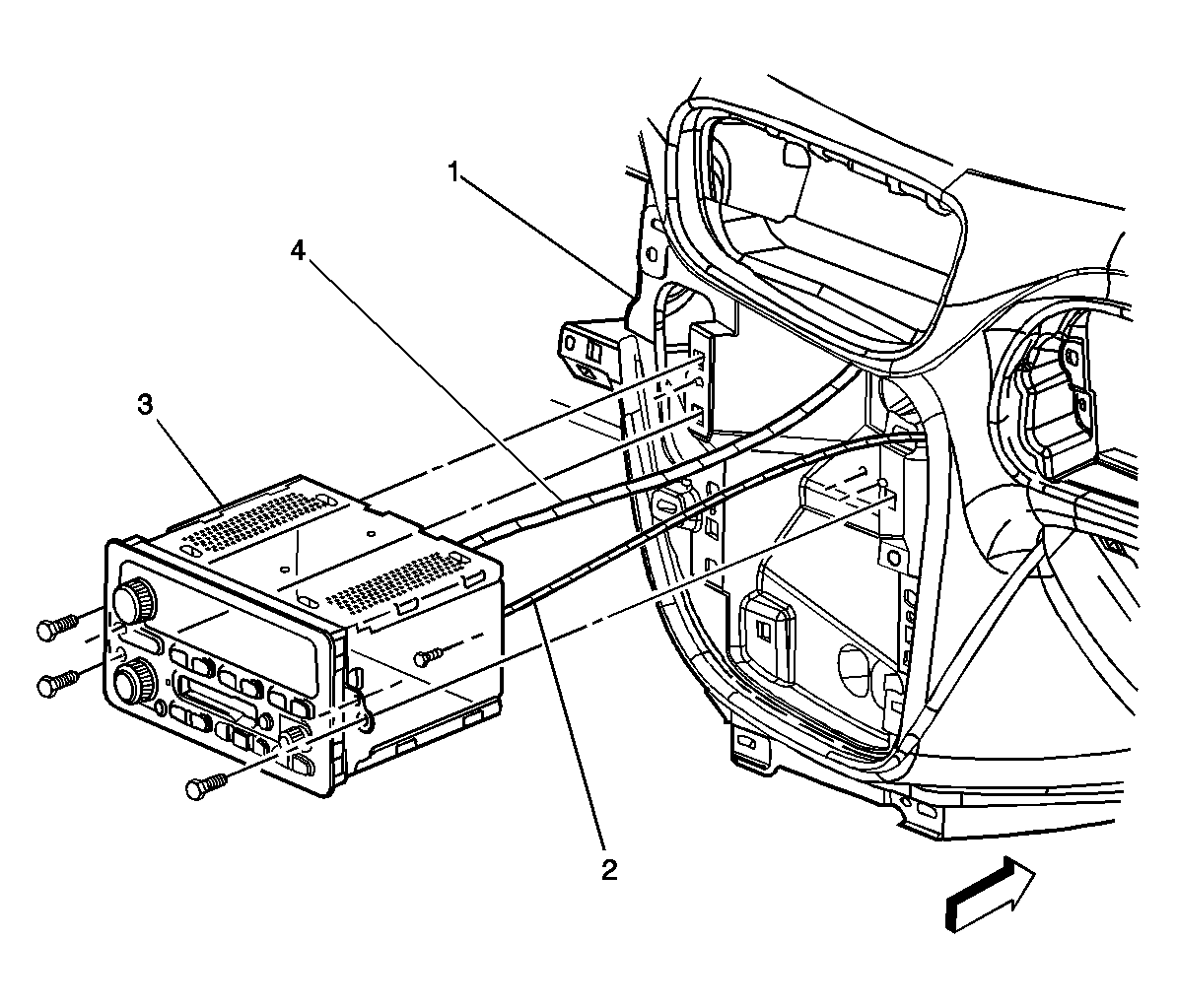

Fig 2: Radio Component View
GM749971Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel
2 Radio Antenna
3 Radio
4 Instrument Panel Harness
