Power Outlet Component Views

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2005 Isuzu Ascender, 2005 GMC Envoy XUV, 2005 GMC Envoy XL, 2005 GMC Envoy, and 2005 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

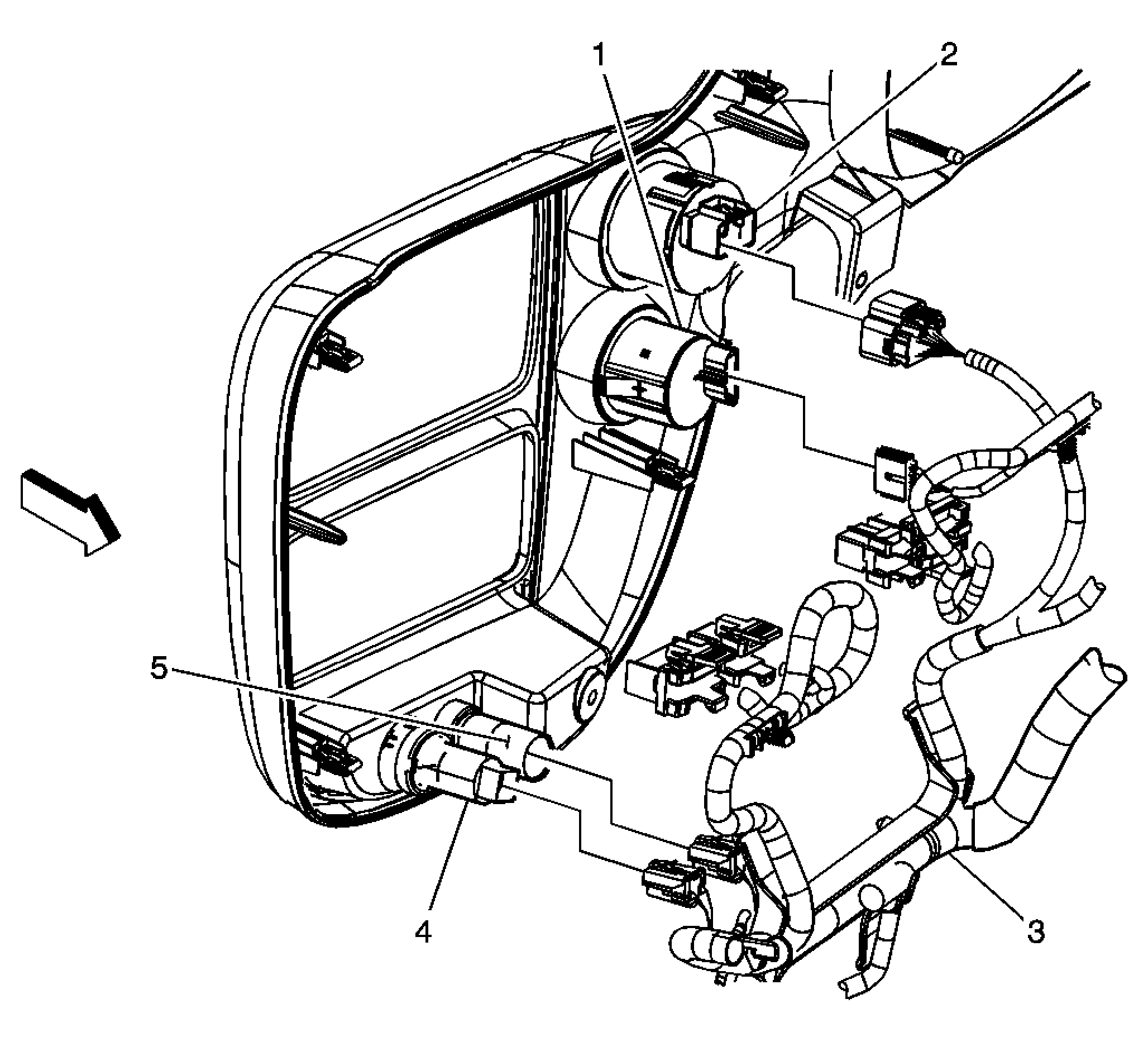

Fig 1: Behind the Center of the I/P (X88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Switch (CD6)
2	Transfer Case Shift Control Switch (NP8)/Traction Control Switch (NW7)
3	Instrument Panel Harness
4	Auxiliary Power Outlet - Front
5	Cigar Lighter

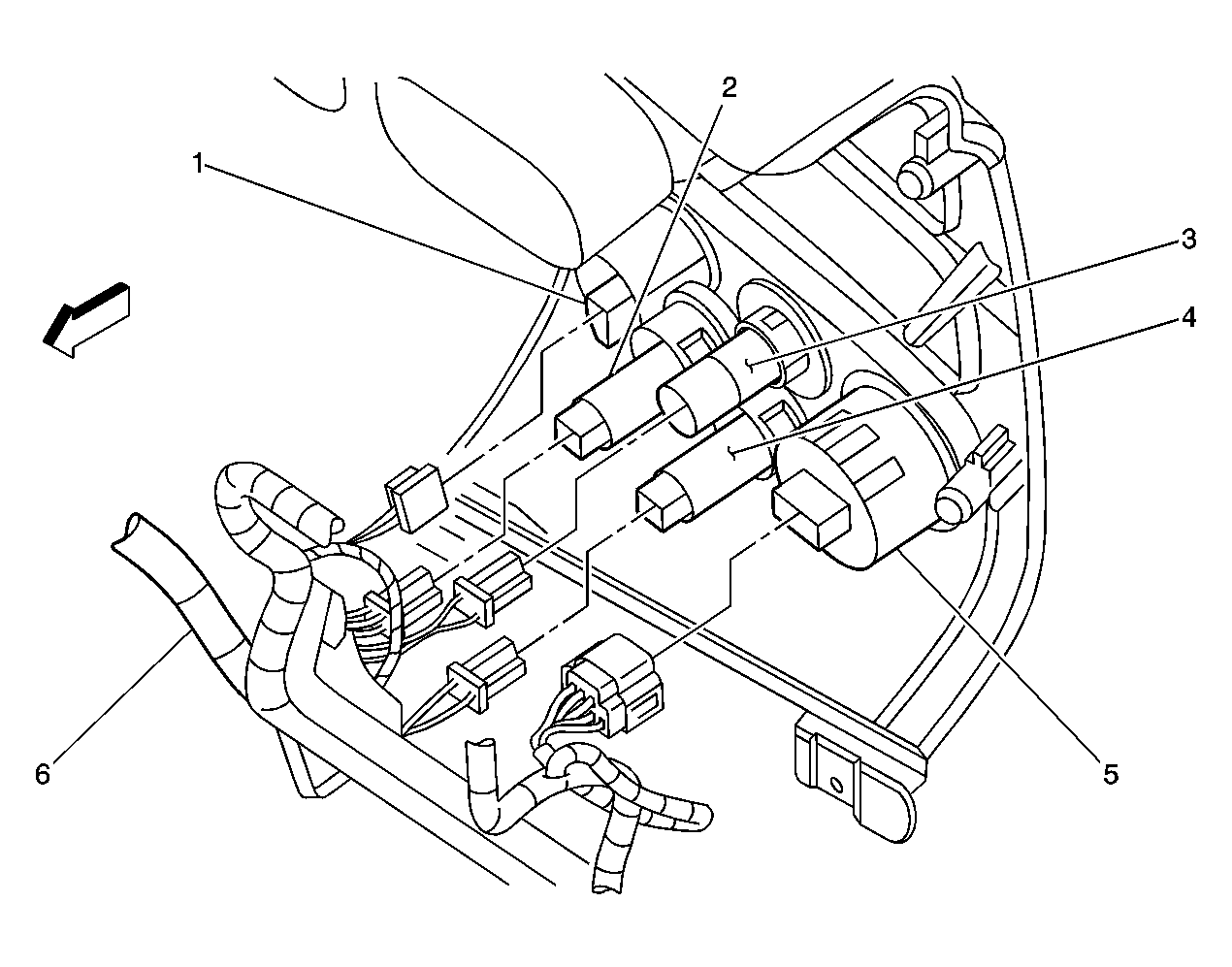

Fig 2: Behind the Center of the I/P (Z88/Z89)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Switch (CD6)
2	Auxiliary Power Outlet - Front
3	Cigar Lighter
4	Auxiliary Power Outlet - Front
5	Transfer Case Shift Control Switch (NP8)/Traction Control Switch (NW7)
6	Instrument Panel Harness

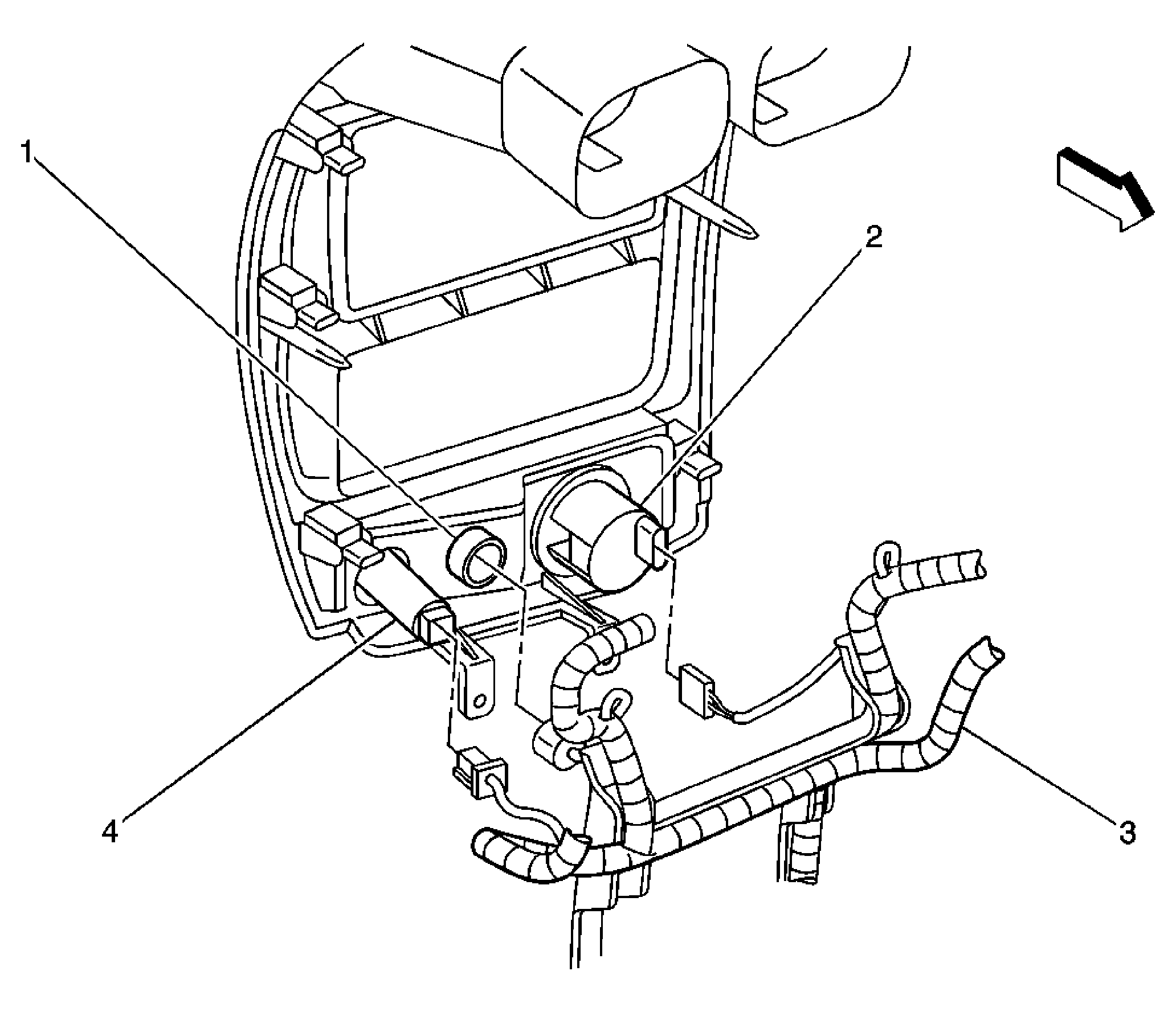

Fig 3: Behind the Center of the I/P (W49)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Rear Window Wiper/Washer Switch (CD6)
3	Instrument Panel Harness
4	Auxiliary Power Outlet - Front

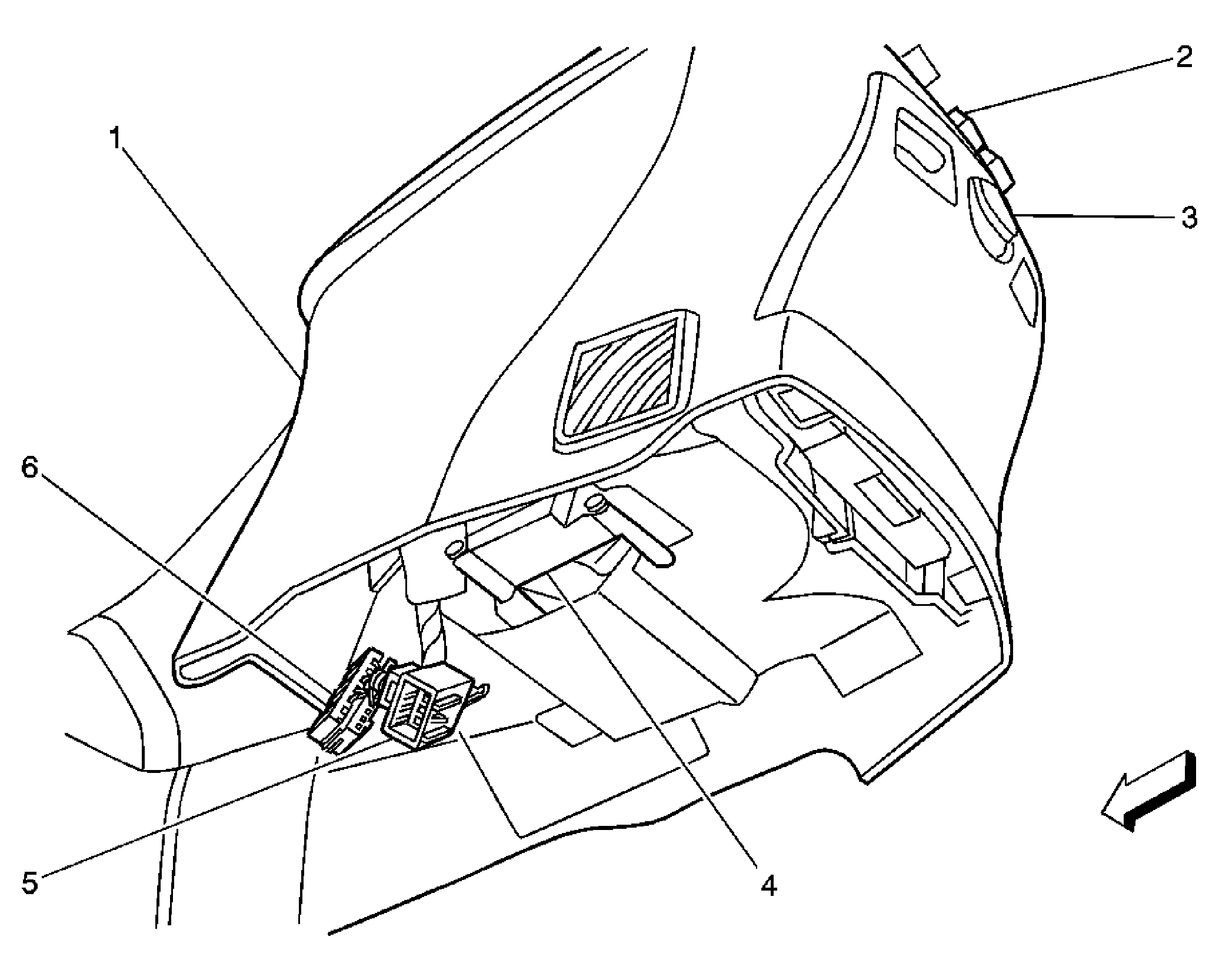

Fig 4: Lower Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Console
2	HVAC Control Module - Auxiliary
3	Auxiliary Power Outlet - Console
4	Console Mode Actuator - Auxiliary
5	C309
6	C307

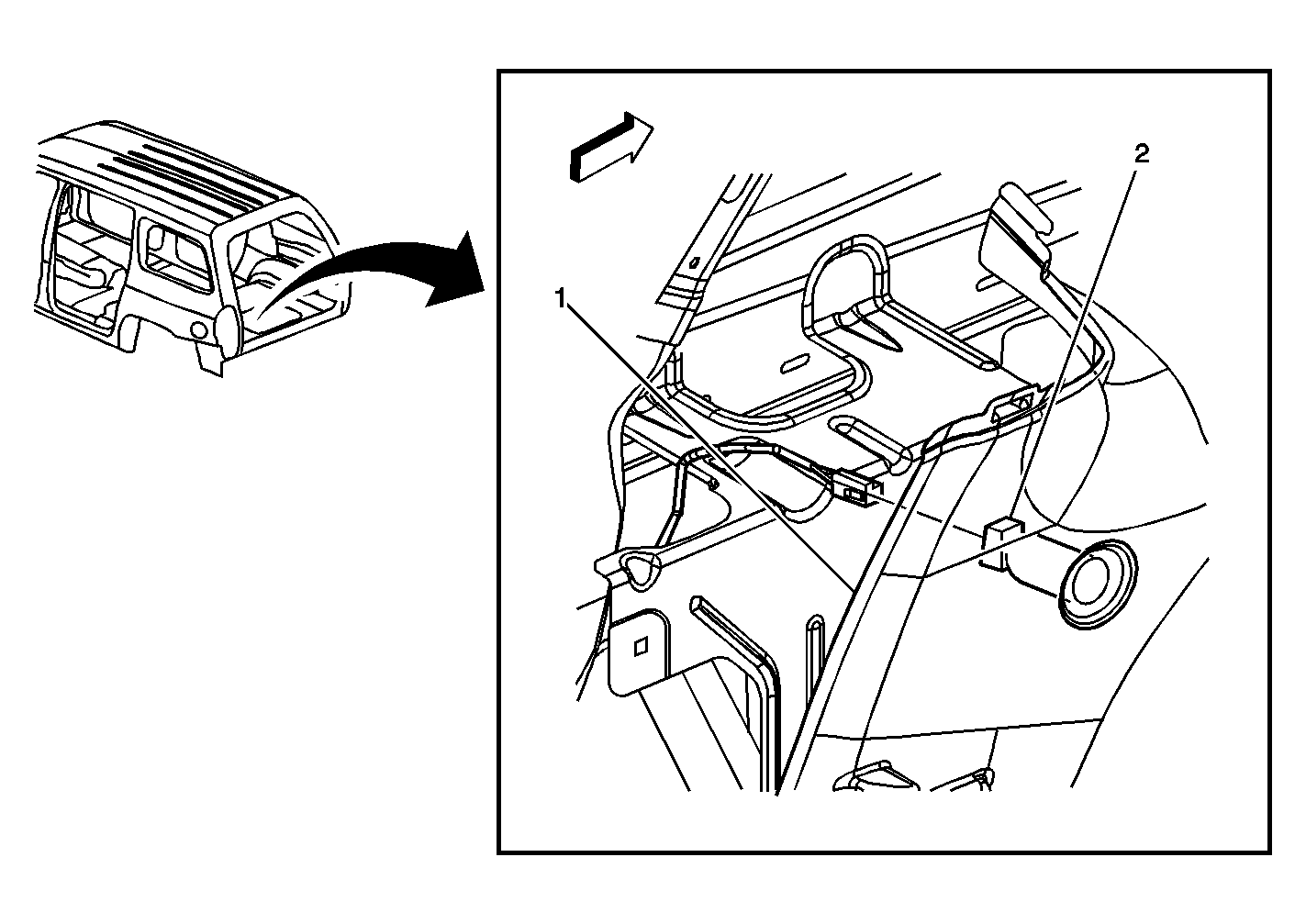

Fig 5: Left Rear Body Side Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Body Side Lower Trim Panel
2	Auxiliary Power Outlet - Rear
