Engine Temperature Sensor: Locations

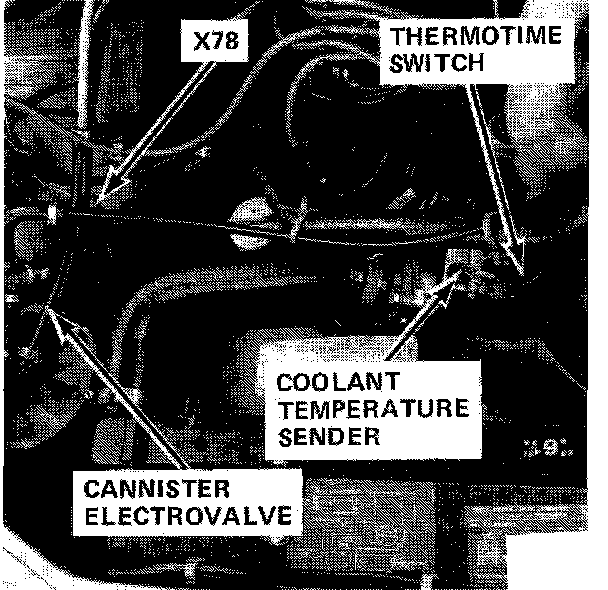

RH Front Of Engine Compartment.:




RH Front Of Engine Compartment

Applicable to: 1982-84 505 w/XN6 Engine
