Hall Effect Electronic Spark Control System: Overhaul: Reassembly

To reassemble, reverse disassembly procedure. Correct rotor has "E.S.A." stamped in its top. Check rotor for proper grounding of shutterblades.

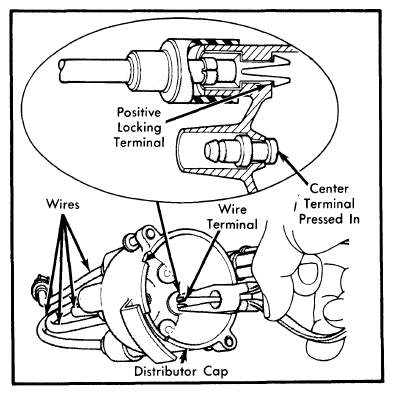

Fig 1: Use Pliers to Release Positive-Locking Spark Plug Wire Terminals

Courtesy of CHRYSLER GROUP, LLC
