Detonation Sensor

Used only on 5.2L with 4-barrel carburetor, this sensor is mounted in the intake manifold and sends a low voltage signal to the SCC whenever engine knock is detected. The SCC then retards timing a maximum of 11°, the actual amount being proportional to strength and frequency of detonation. When the condition no longer exits, timing is advanced to original value.

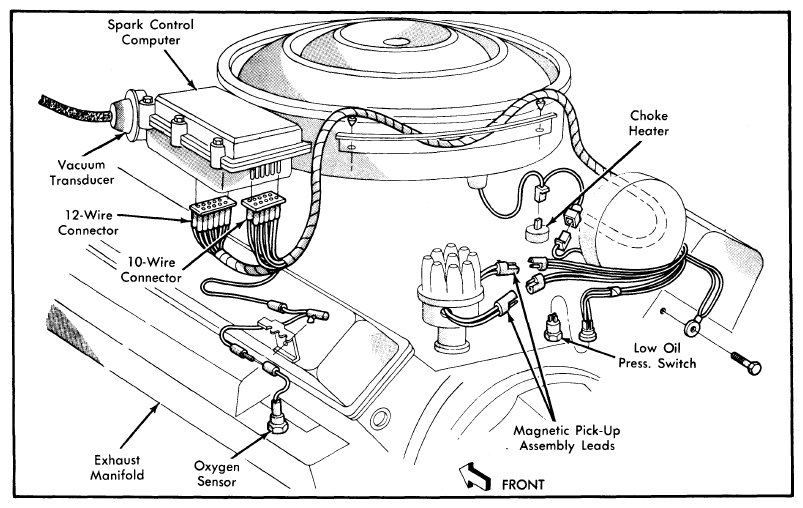

Fig 1: Location of Data Sensors on 3.7L Engines

Courtesy of CHRYSLER GROUP, LLC

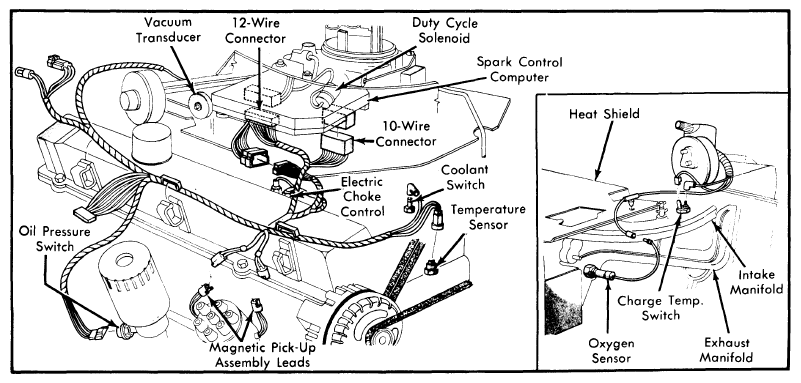

Fig 2: Location of Data Sensors on 5.2L Engine (Rear View)

Courtesy of CHRYSLER GROUP, LLC

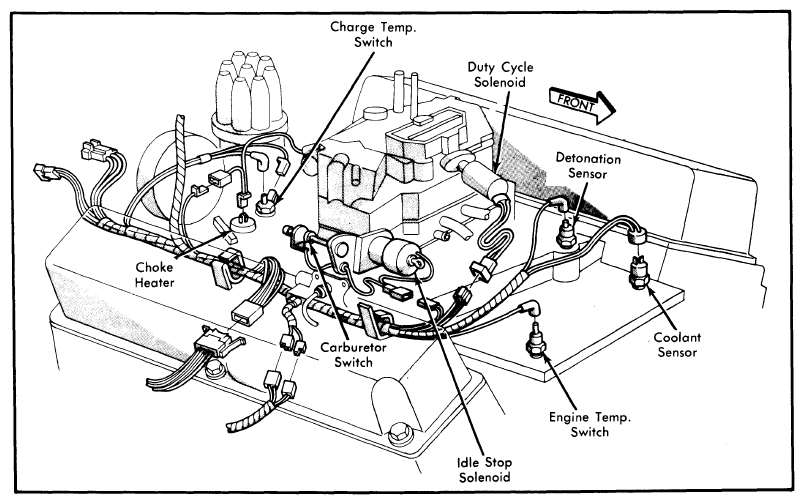

Fig 3: Location of Data Sensors on 5.2L Engine (Front View)

Courtesy of CHRYSLER GROUP, LLC
