Emission Control Systems: Locations

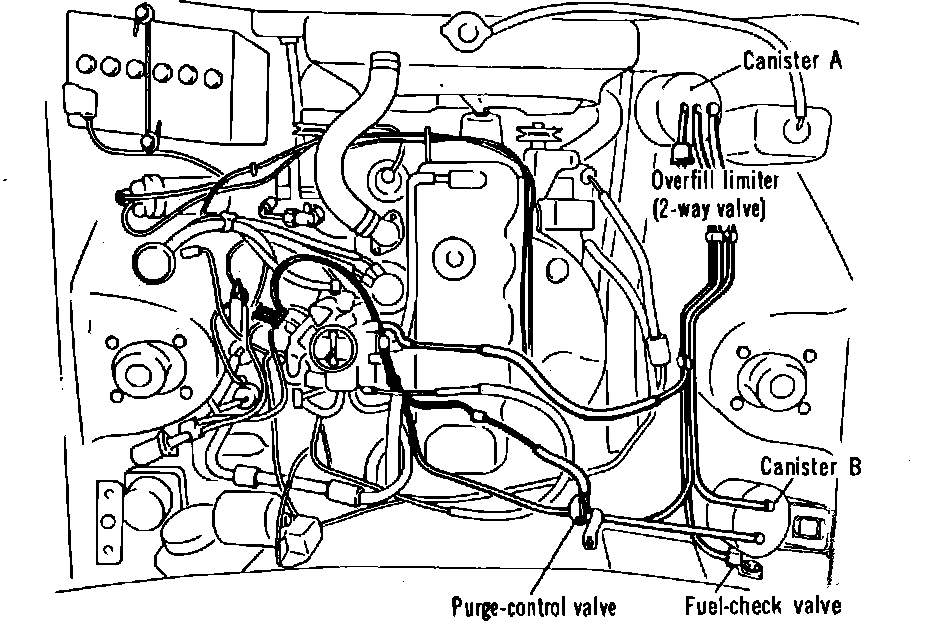

Evaporative Emission Control System. 1982-83 Challenger & Sapporo:



Exhaust Gas Recirculation System 1982-83 Challenger, Sapporo & 1982-84 Pickup, Calif. all & 2000cc engines, exc. Calif.:

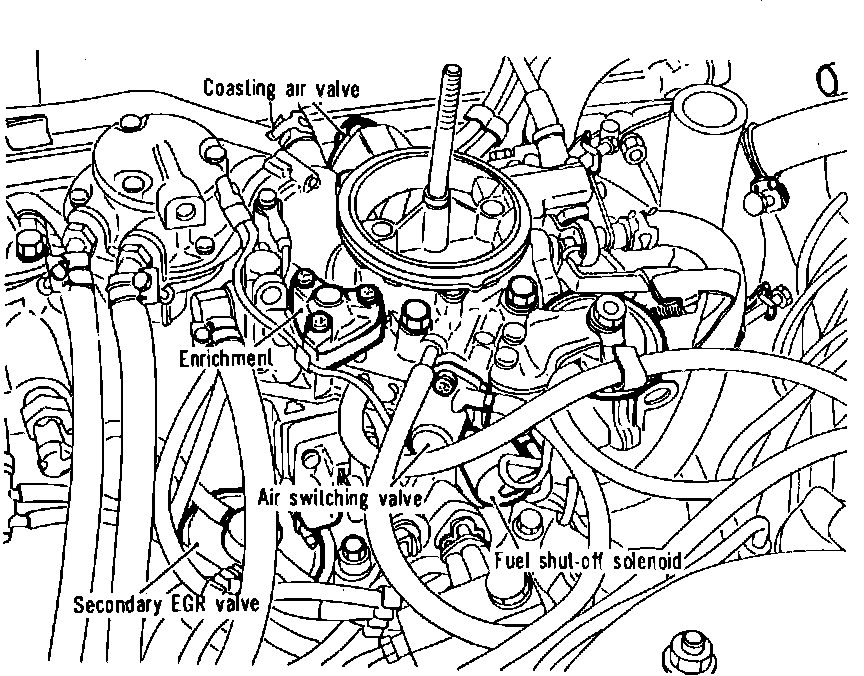

Emission Control System 1982-83 Challenger & Sapporo:



Fig. 11 EGR System 1982-83 Challenger, Sapporo & 1983 Pickup (exc. 2600cc Federal engine):
