Output Signal Test Charts
Fig 1: Output Signals for Colt Vista Man. Trans. (Part 1 of 2)
Fig 2: Output Signals for Colt Vista Man. Trans. (Part 2 of 2)

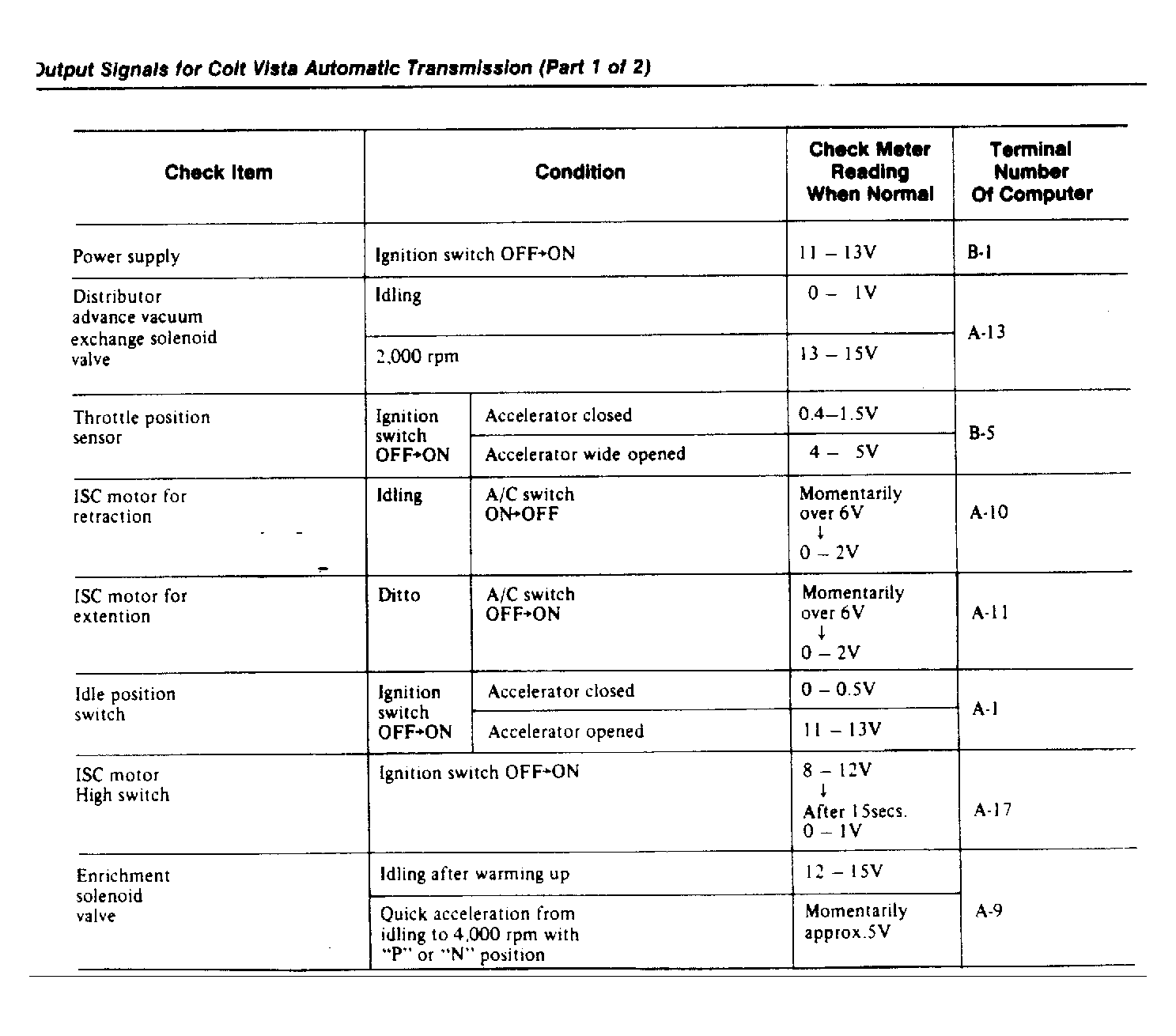

Fig 3: Output Signals for Colt Vista Auto. Trans. (Part 1 of 2)

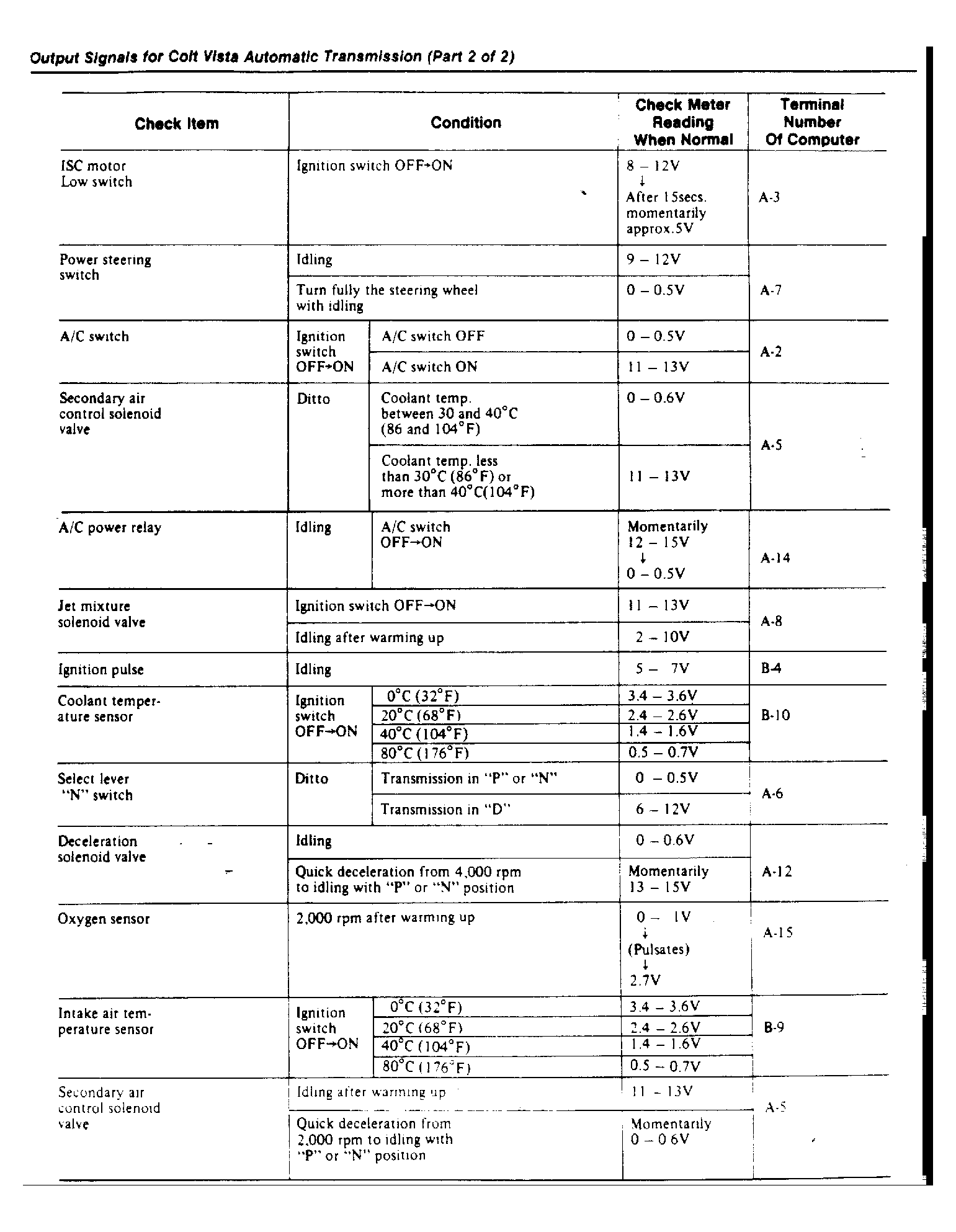

Fig 4: Output Signals for Colt Vista Auto. Trans. (Part 2 of 2)
