Ecu Connector Pin Location & Functions

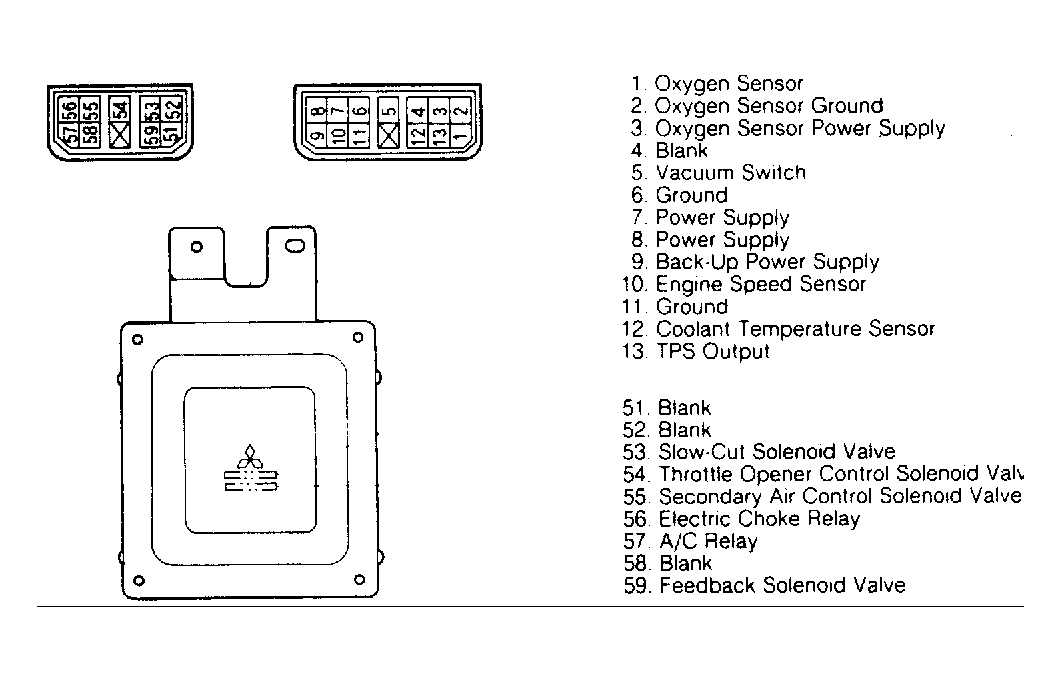

Fig 1: ECU Connector Pin Location & Function (Raider & Ram-50)
G61368

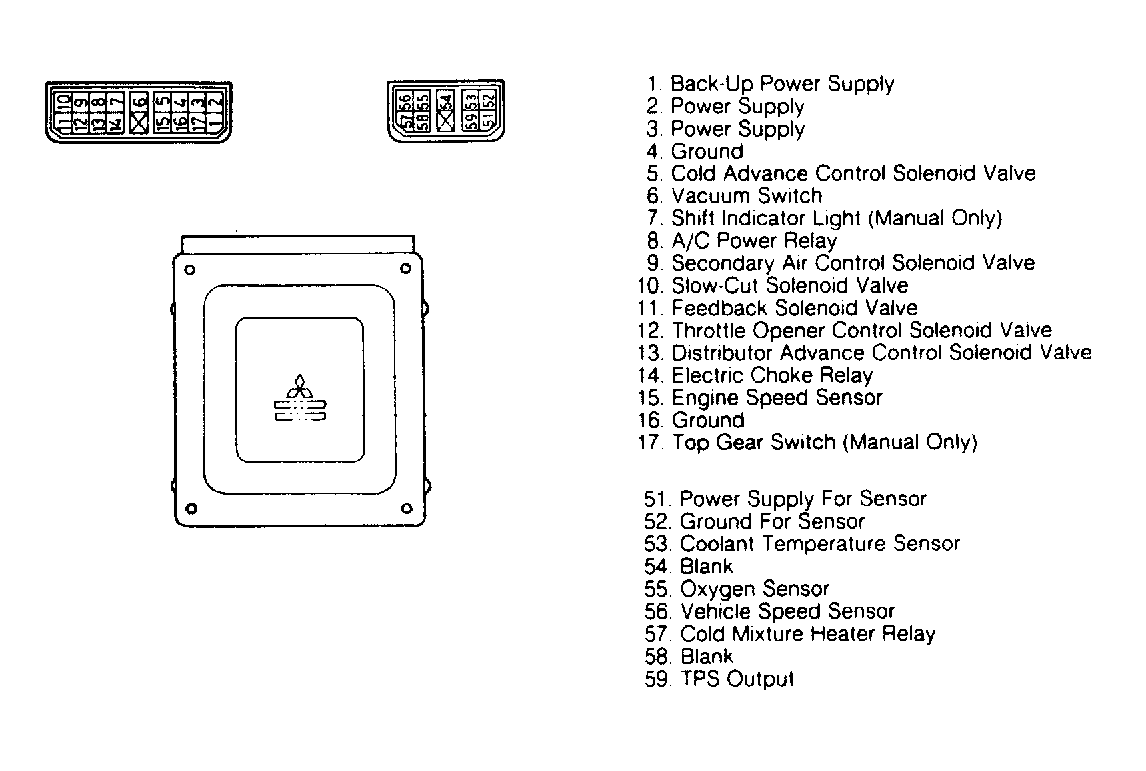

Fig 2: ECU Connector Pin Location & Function (Colt)
G61367
