Computers and Control Systems: Locations

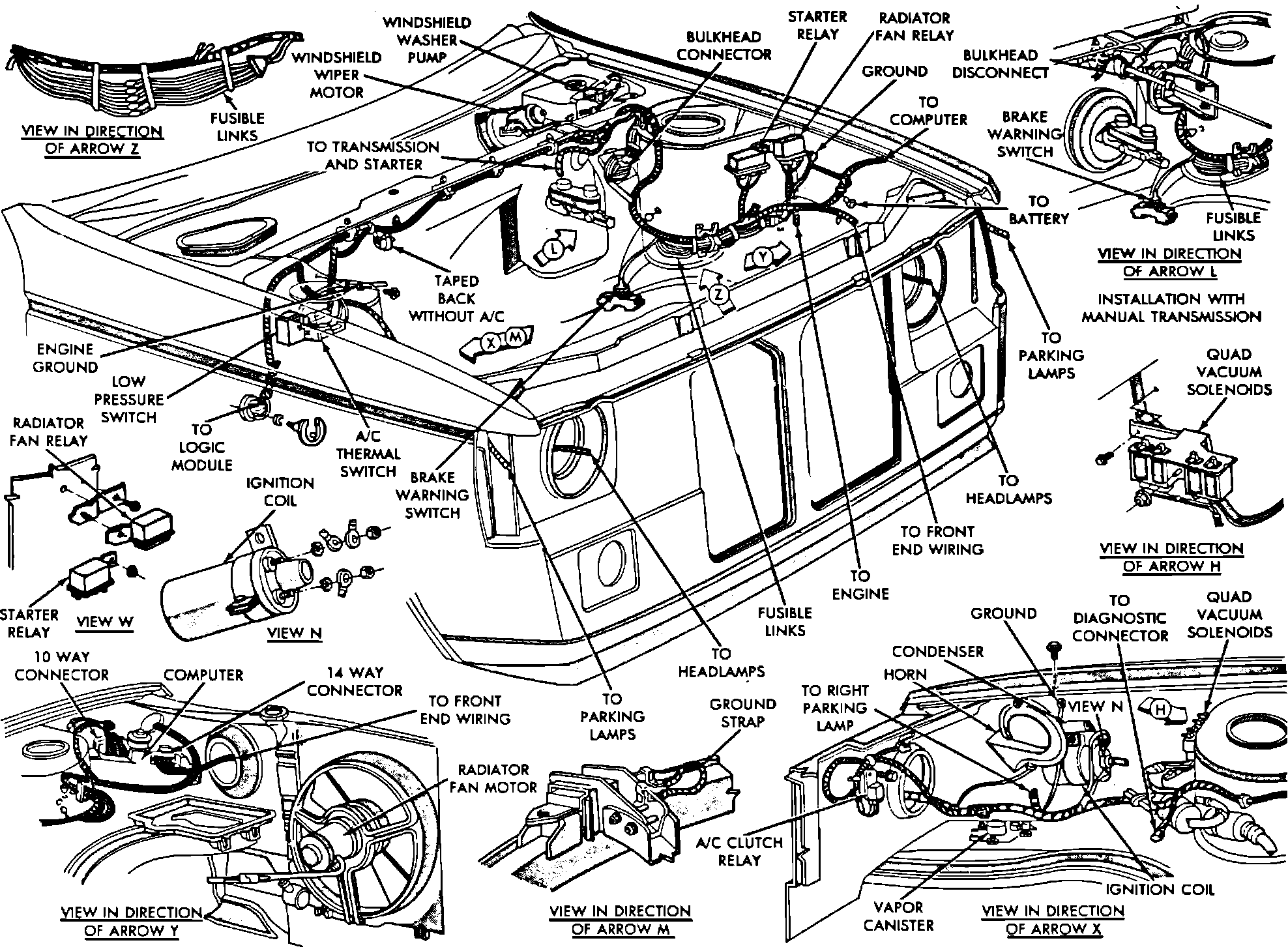

Front end & engine compartment components.:




Upper RH Side Of Firewall

Applicable to: 1986-87 Charger, Horizon, Omni & Turismo Exc. turbocharged engine

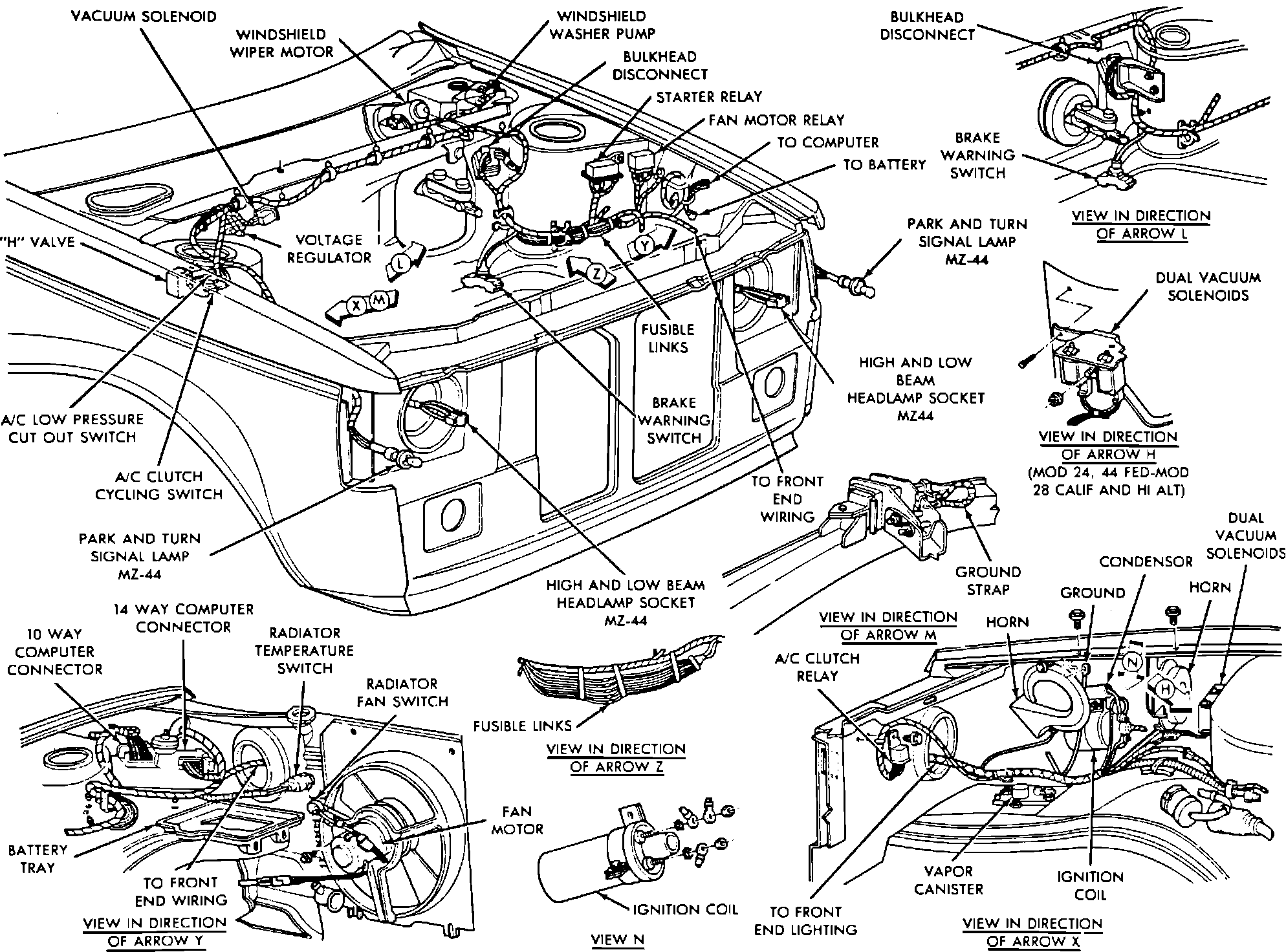

Front end & engine compartment components.:




On RH Strut Tower

Applicable to: 1986-87 Charger, Horizon, Omni & Turismo W/turbocharged engine
