Coolant Temperature Sensor/Switch (For Computer): Locations

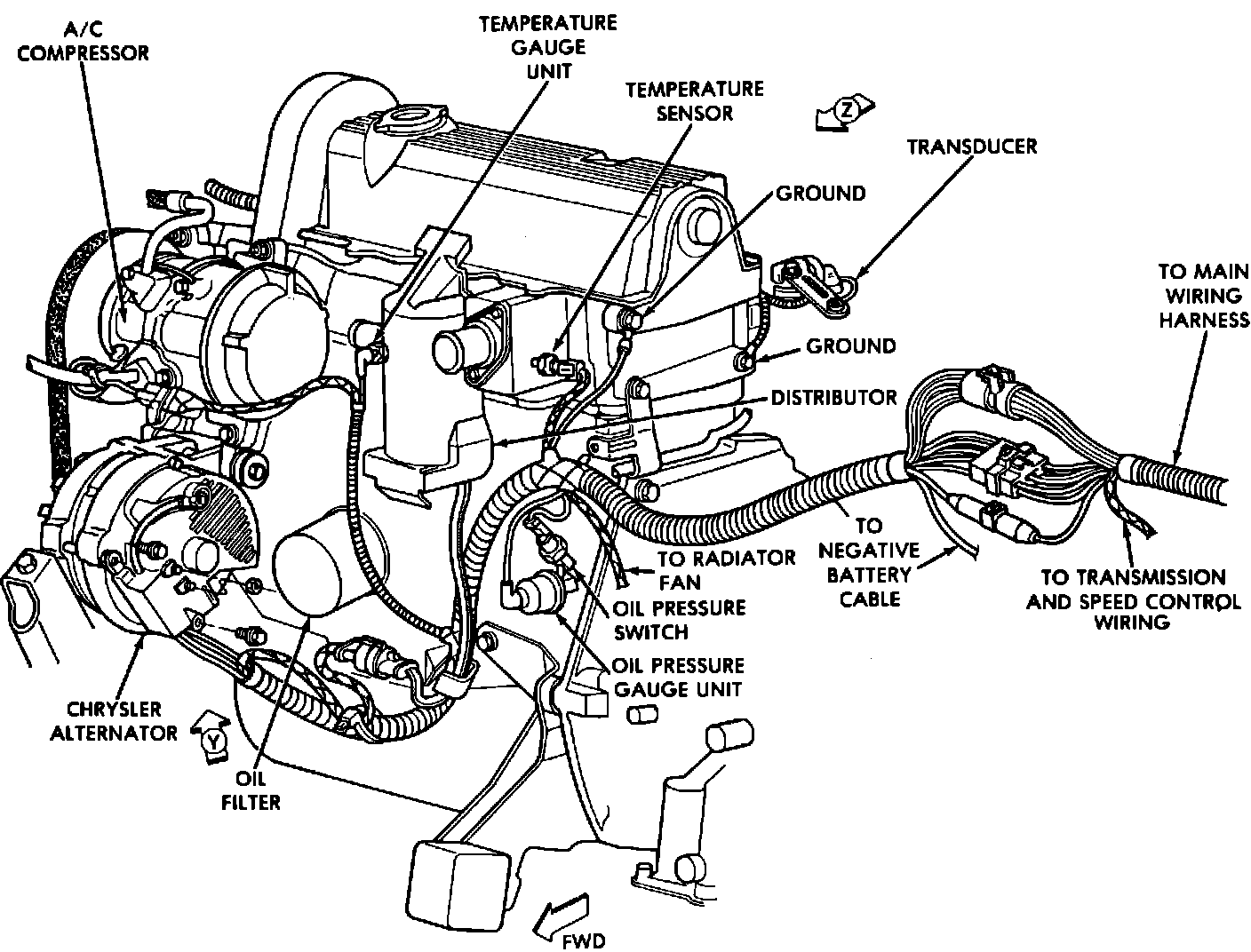

Engine compartment components.:




RH Side Of Engine, Above Transaxle Bellhousing

Applicable to: 1986-87 Aries & Reliant
