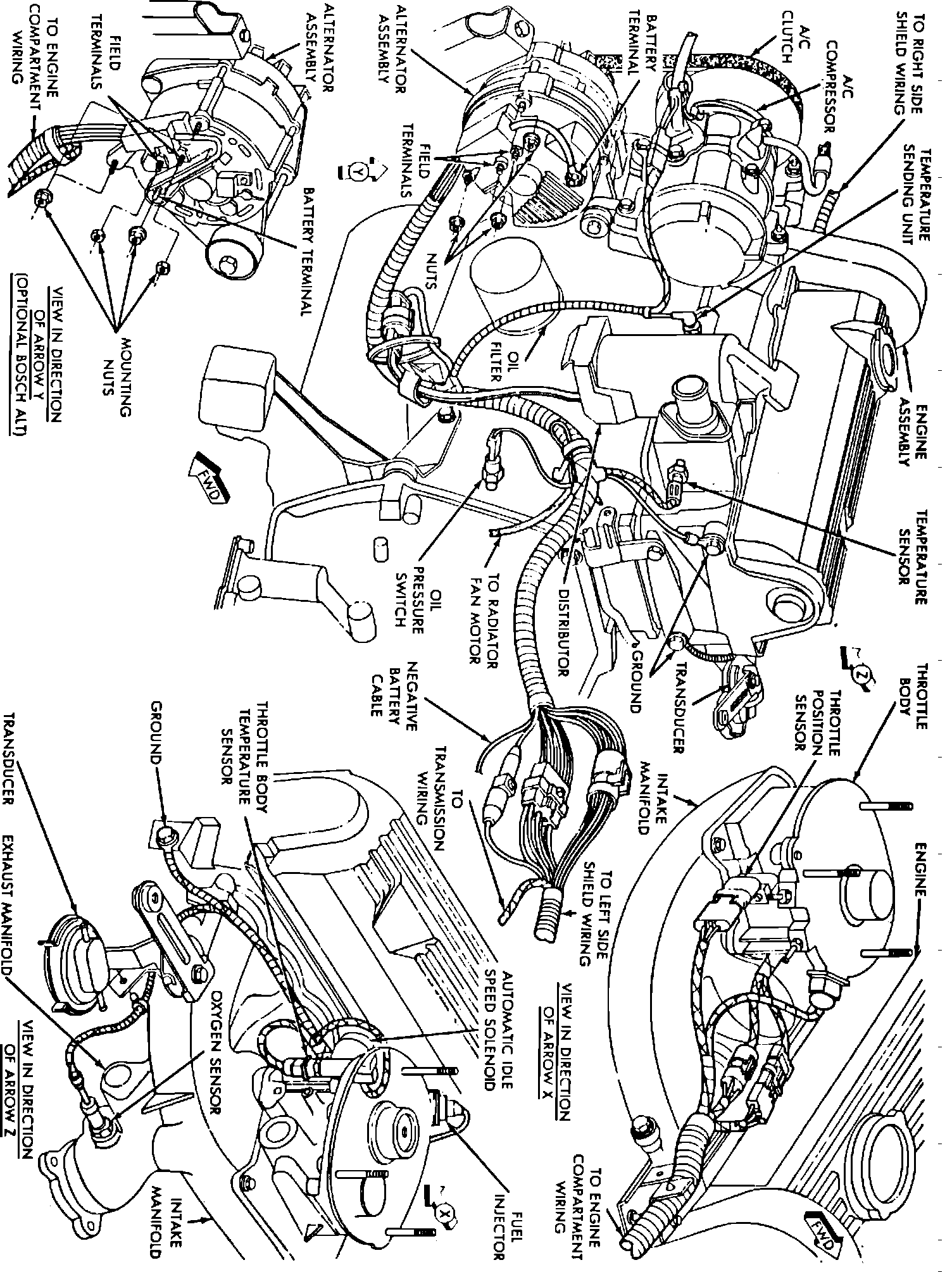

Throttle Position Sensor: Locations

Engine electrical & related components.:




On Throttle Body Unit

Applicable to: 1987 Shadow & Sundance W/4-135 Exc. Turbo engine
