Pulse Air Feeder

With engine running, remove hose from air cleaner. Check for vacuum at hose opening by covering with hand.
If no vacuum is generated, check hoses for air leaks and evidence of oil leaks.

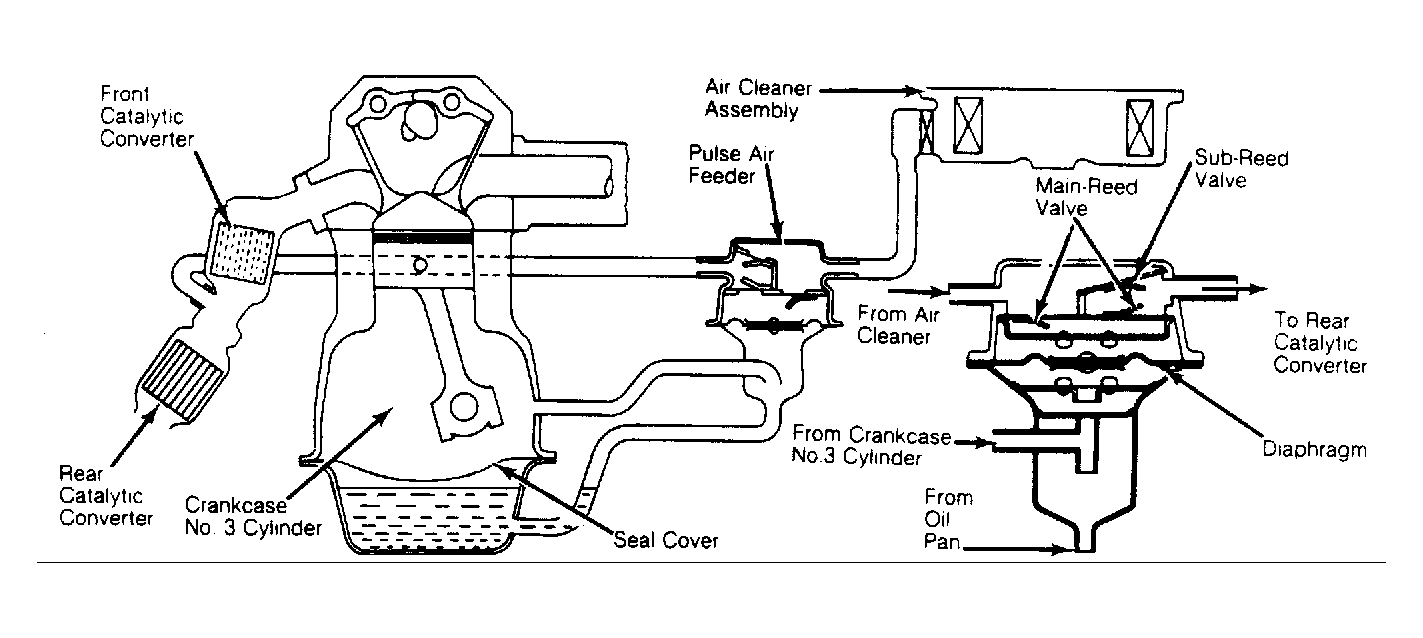

Fig 1: Pulse Air Feeder System (2.6L)

Courtesy of CHRYSLER MOTORS.
