Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

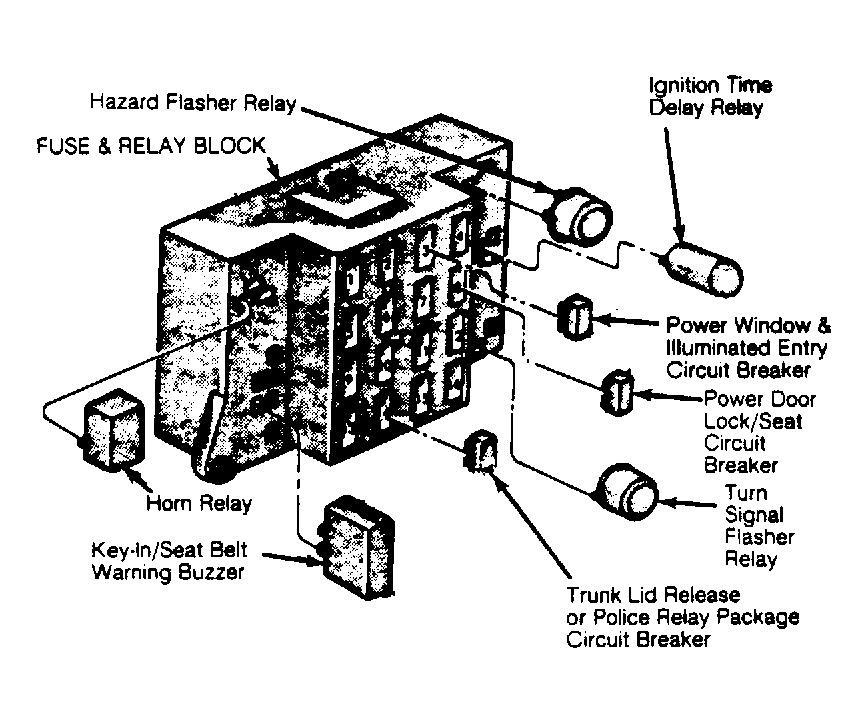

| Fuse & Relay Block | Under lower left side of dash. See Figure . | |
| Fusible Links | ||
| Charging System (Red/14 ga.) | Rear of left front wheelwell. | |
| Hazard Flasher (Orange/20 ga.) | Behind battery. | |
| Headlight Switch (Gray/18 ga.) | Rear of left front wheelwell. | |
| Accessories (Gray/18 ga.) | Rear of left front wheelwell. | |
| Ignition System (Gray/18 ga.) | Rear of left front wheelwell. | |
| Ignition/Starter System (Orange/18 ga.) | Rear of left front wheelwell. | |
| Rear Window Defrost (Gray/18 ga.) | Rear of left front wheelwell. | |
