Throttle Body

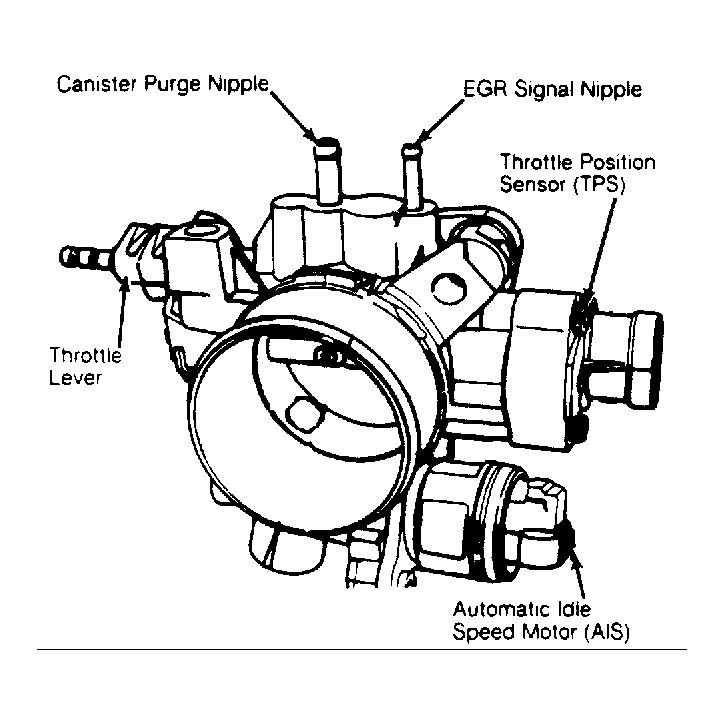

- Disconnect negative battery cable. Remove air cleaner hose at throttle body. Remove throttle cable and transaxle linkage. Disconnect AIS and TPS connectors. See Fig 1.
- Disconnect and mark vacuum hoses from throttle body. Remove throttle body retaining nuts. Remove throttle body. To install, reverse removal procedure.
