Connector Identification
CONNECTOR IDENTIFICATION DIRECTORY
| Connector | Illustration | |
|---|---|---|
| Body Control Computer | ||
| Blue | See Fig 1 | |
| Natural | See Fig 2 | |
| CCD Bus Diagnostic | See Fig 3 | |
| Compass/Mini-Trip Module | See Fig 4 | |
| Diode Assembly | See Fig 5 | |
| Front & Side Door Jamb Switch | See Fig 7 | |
| Fuel Pump/Sending Unit | See Fig 6 | |
| Instrument Cluster | See Fig 8 | |
| Ignition Key-In-Ignition | See Fig 9 | |
| Left Pod Switch Assembly | See Fig 10 | |
| Left Pod Switch Connectors | ||
| Blue & Gray | See Fig 11 | |
| Black | See Fig 12 | |
| Liftgate Switch | See Fig 13 | |
| Multifunction Switch | See Fig 14 | |

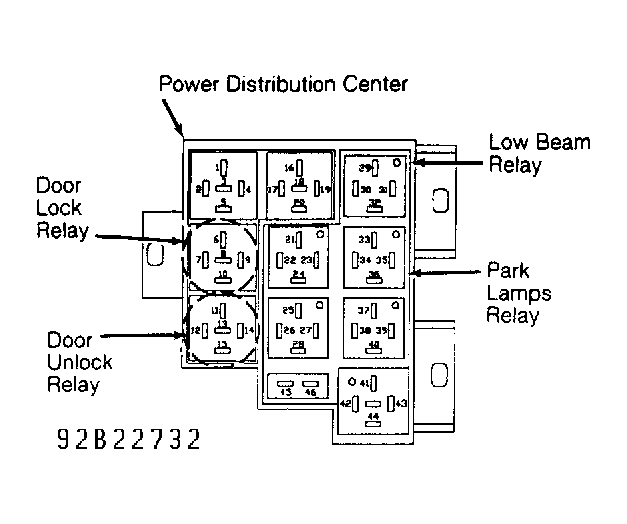

| Power Distribution Center Relay | See Fig 15 | |
| Single Board Engine Controller (SBEC) | See Fig 16 | |
