Service Indicator & Warning Lights: Notes

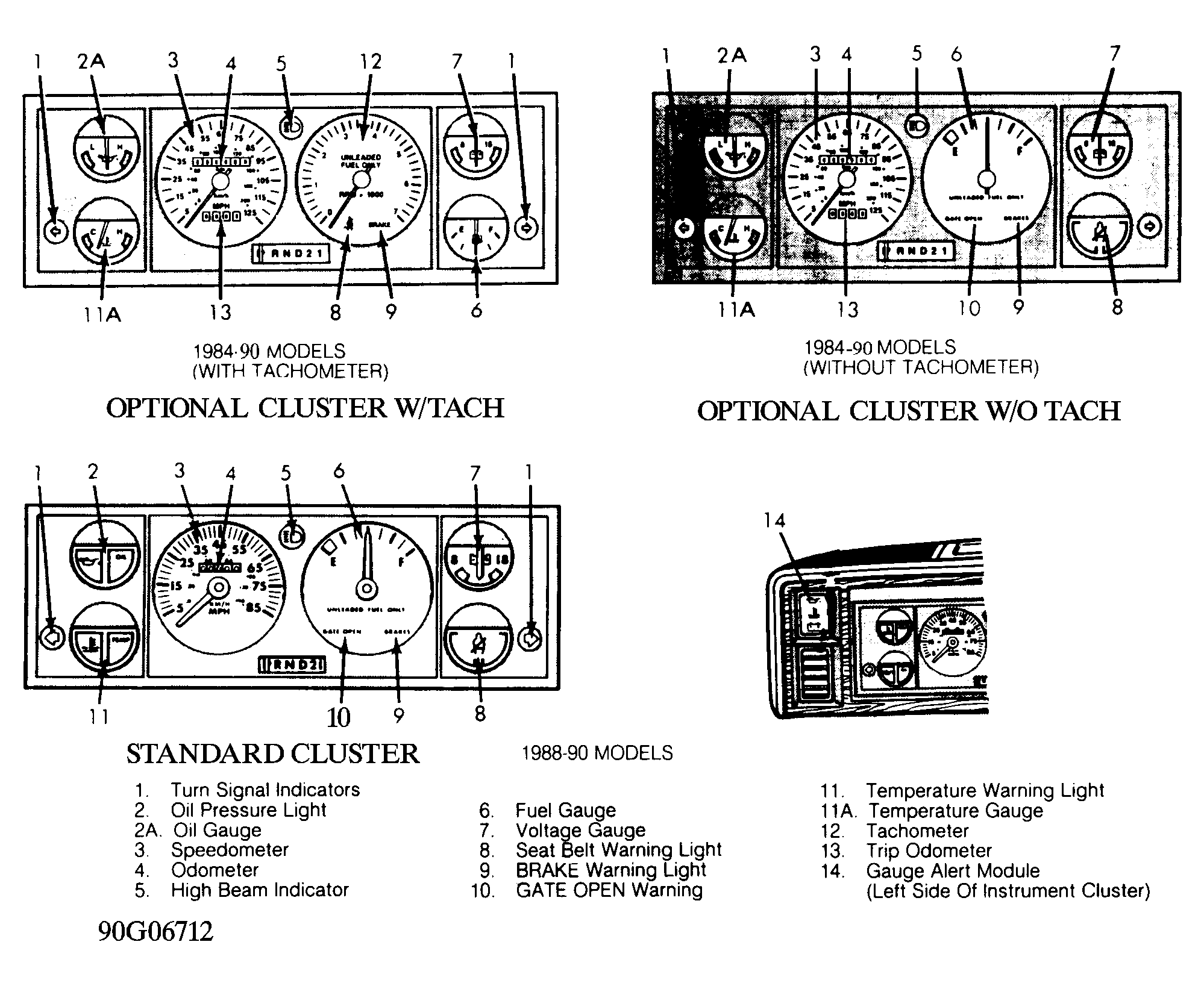

Fig 1: Instrument Panel Identification (1984-90)
G90G06712Courtesy of CHRYSLER MOTORS

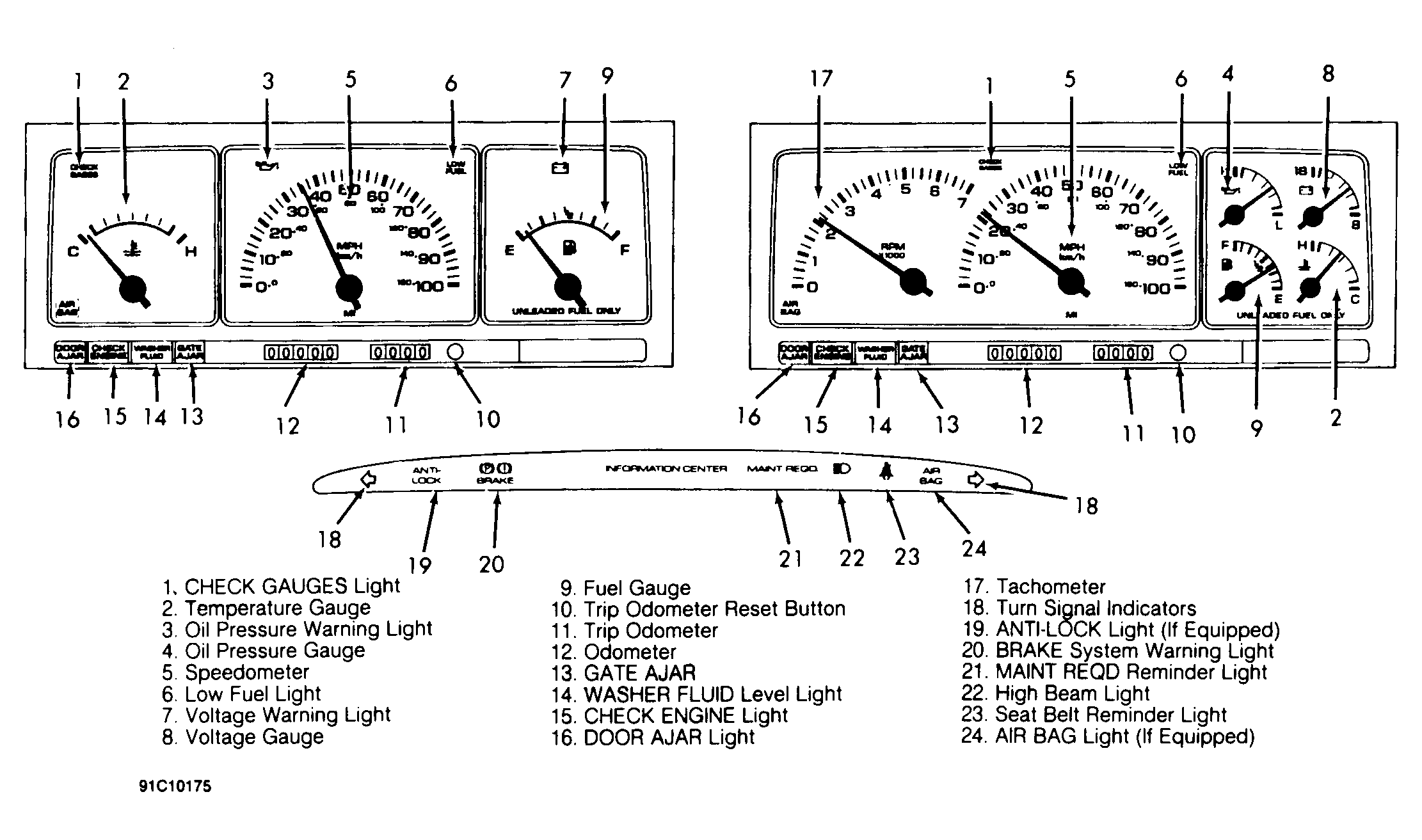

Fig 2: Instrument Panel Identification (1991-92)
G91C10175Courtesy of CHRYSLER MOTORS
