Camber

1. Perform preliminary inspection procedures outlined under "Preliminary Inspection".
Preliminary Inspection
2. Position vehicle on alignment equipment and read camber.

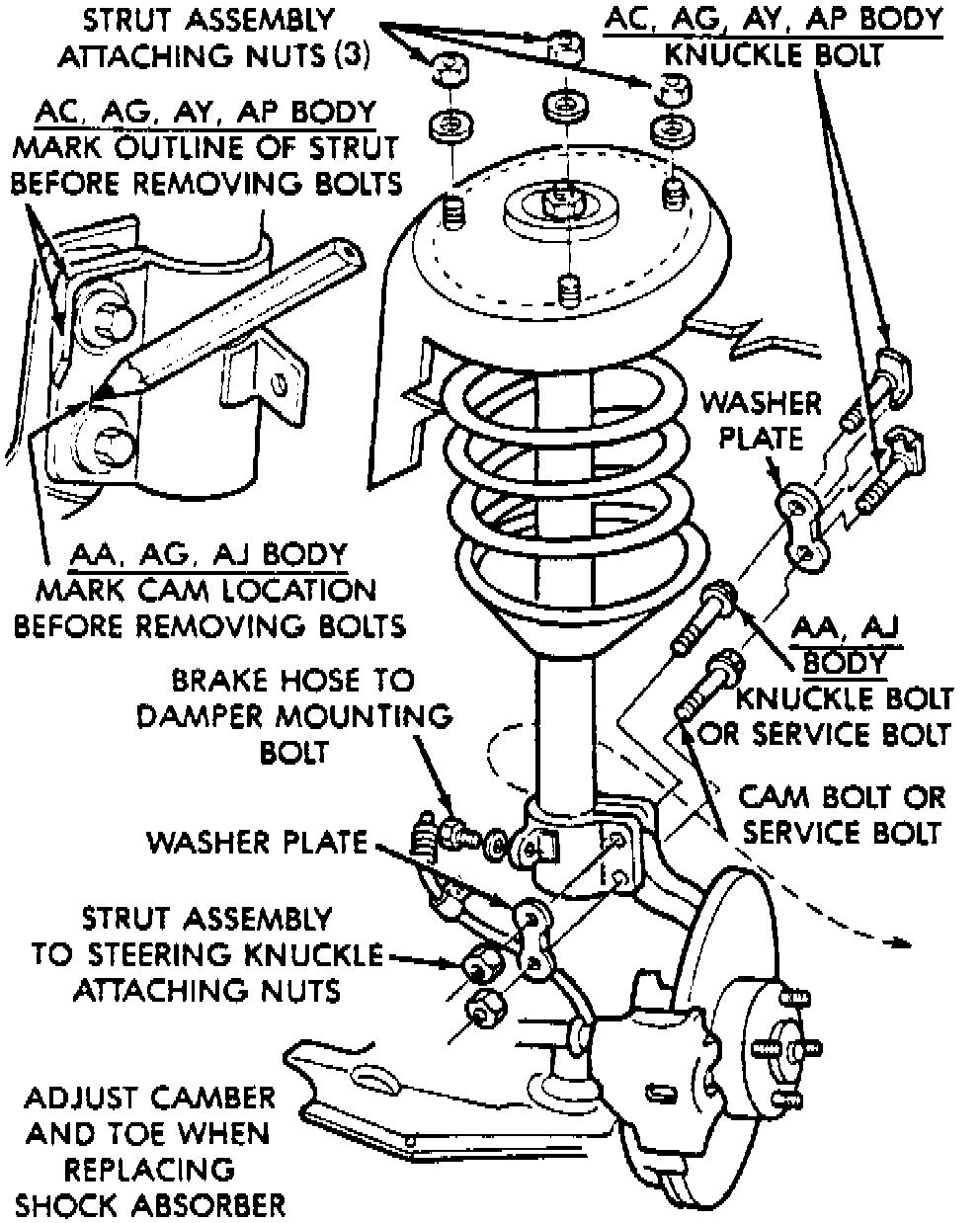

3. Remove strut assembly to steering knuckle bolts and replace them with bolts provided in alignment cam and bolt service package.





4. Rotate adjusting cam bolt to obtain specified camber setting.
5. Carefully reach around tire and tighten knuckle bolts to retain camber setting then torque knuckle bolts to 75 ft-lbs plus an additional 1/4 turn.
