Fuse Block

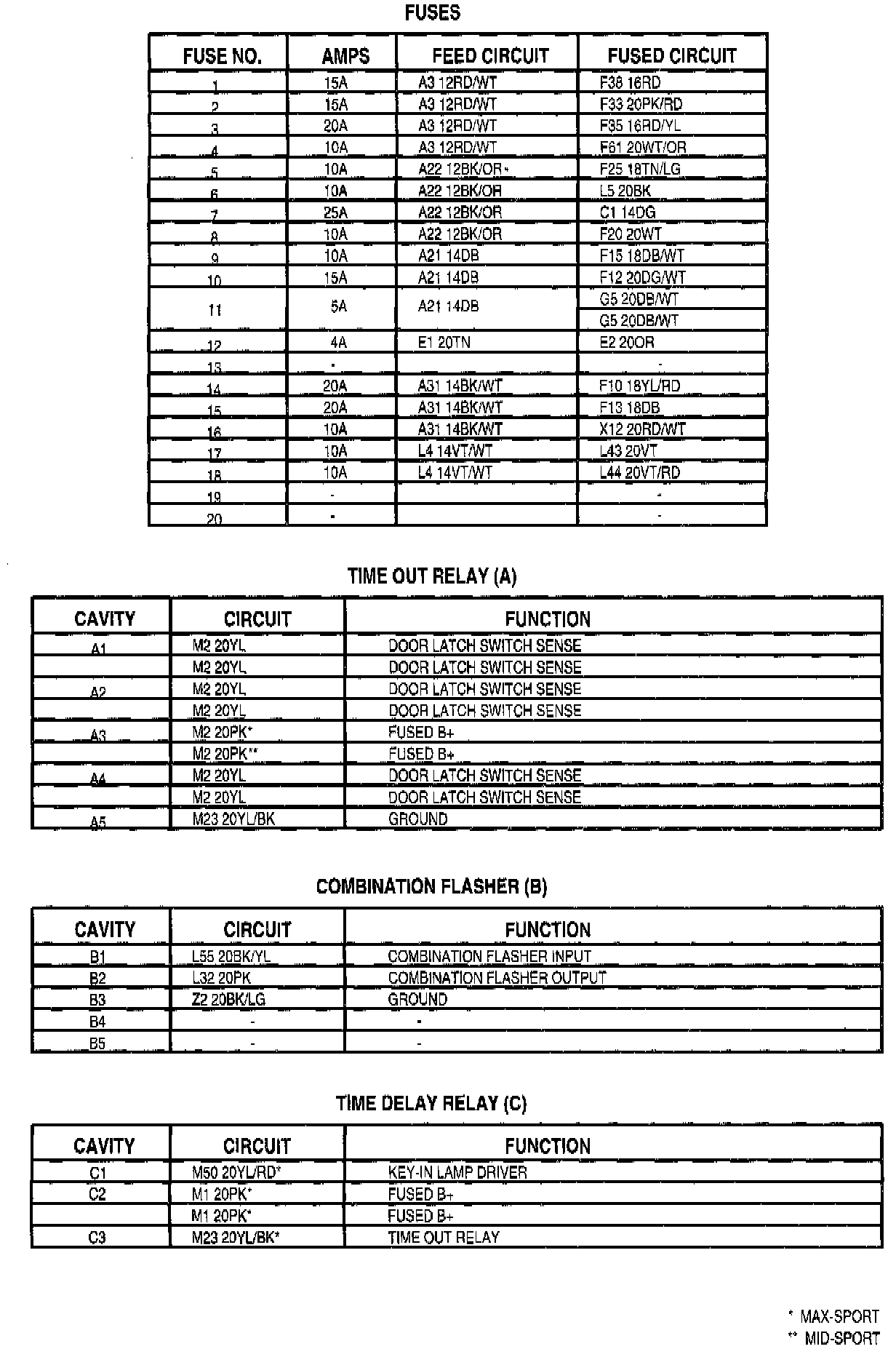

Fuse Block (Part 1 Of 2):

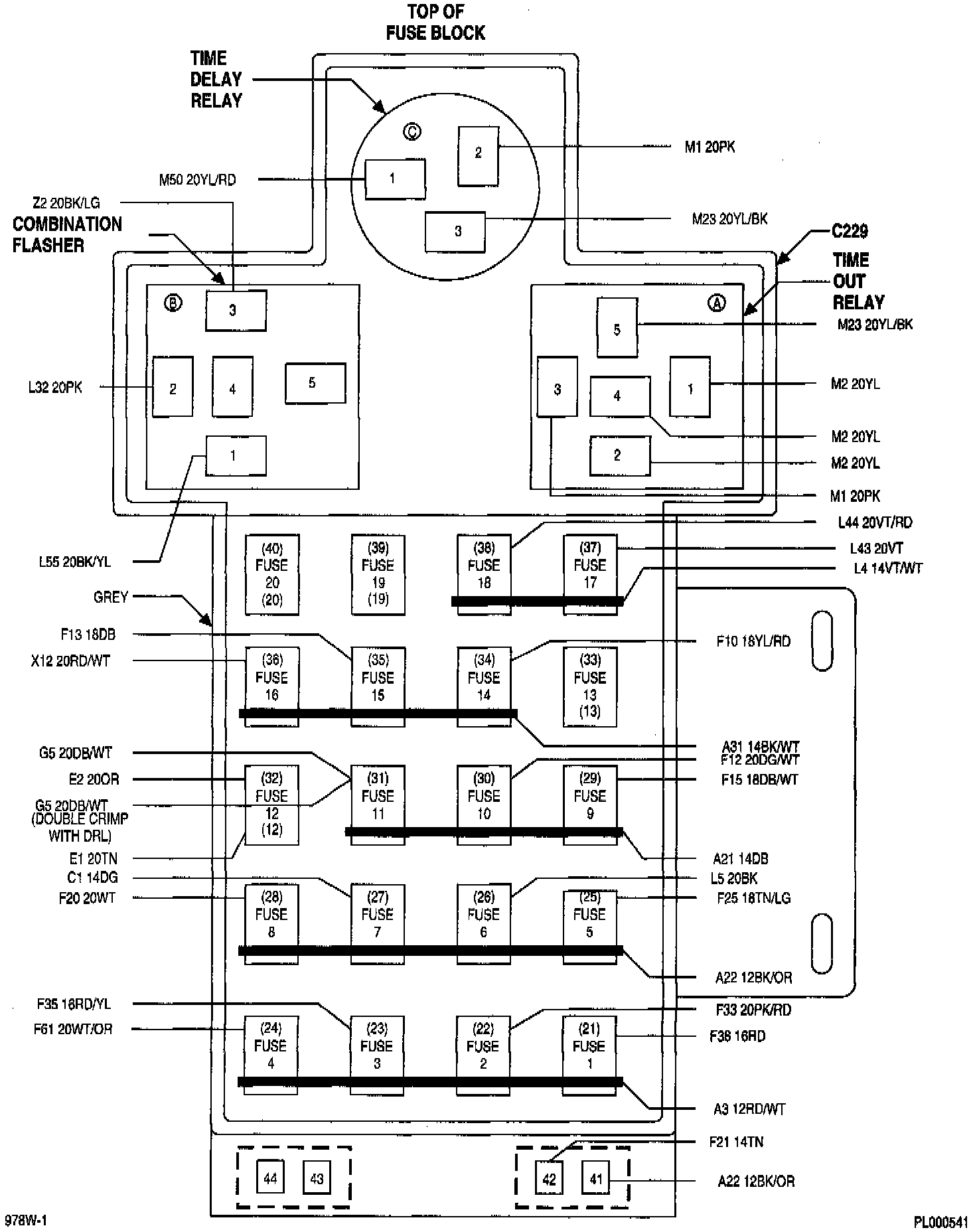

Fuse Block (Part 2 Of 2):






NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
