Fuel Level Sensor: Removal

NOTE: Remove fuel pump module. Refer to Fuel Pump Module. The pump module harness on TOP of flange is not serviceable or removable.

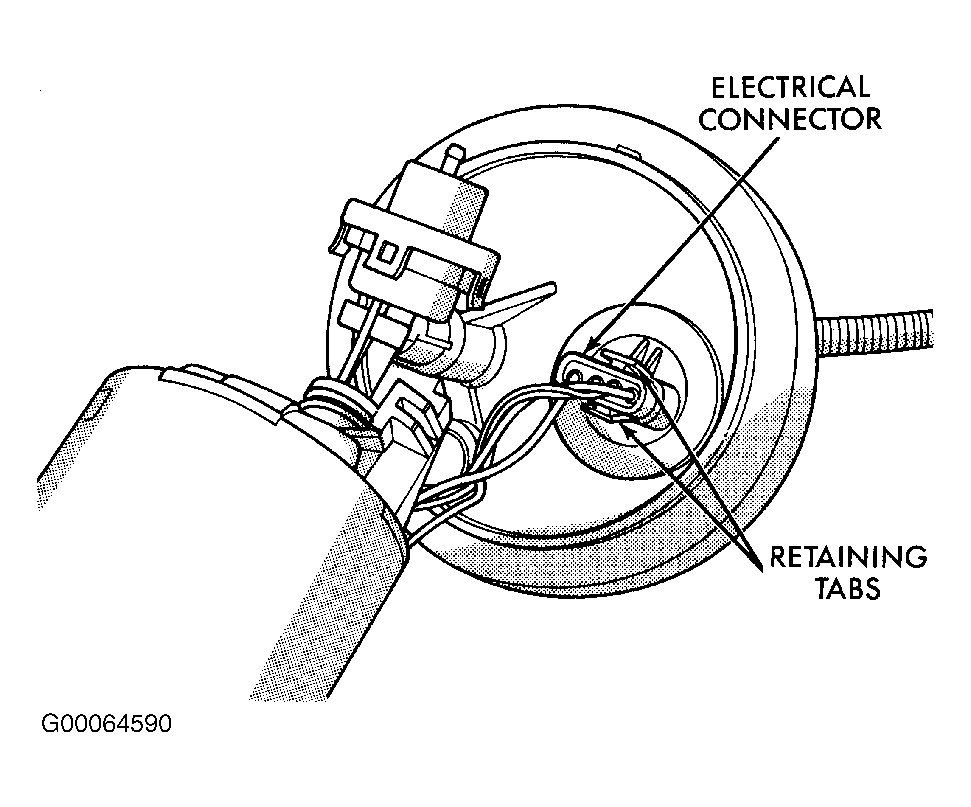

  1. Depress retaining tab and remove the fuel pump/level sensor connector from the bottom of the fuel pump module electrical connector. See Figure.

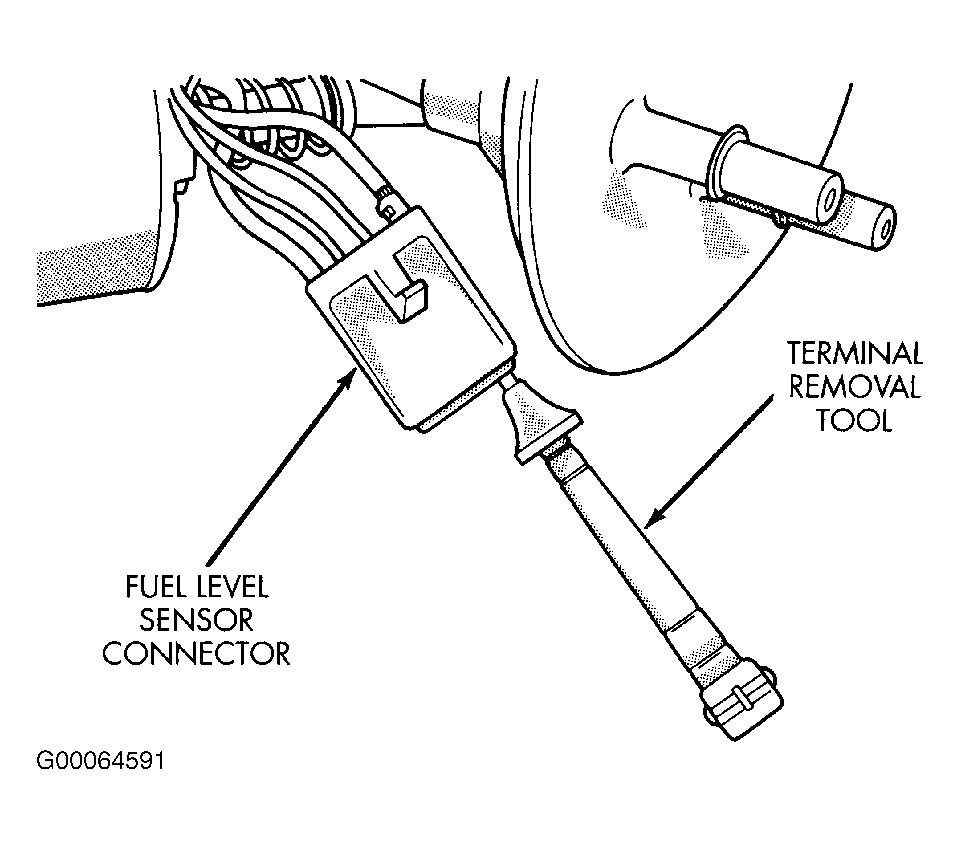

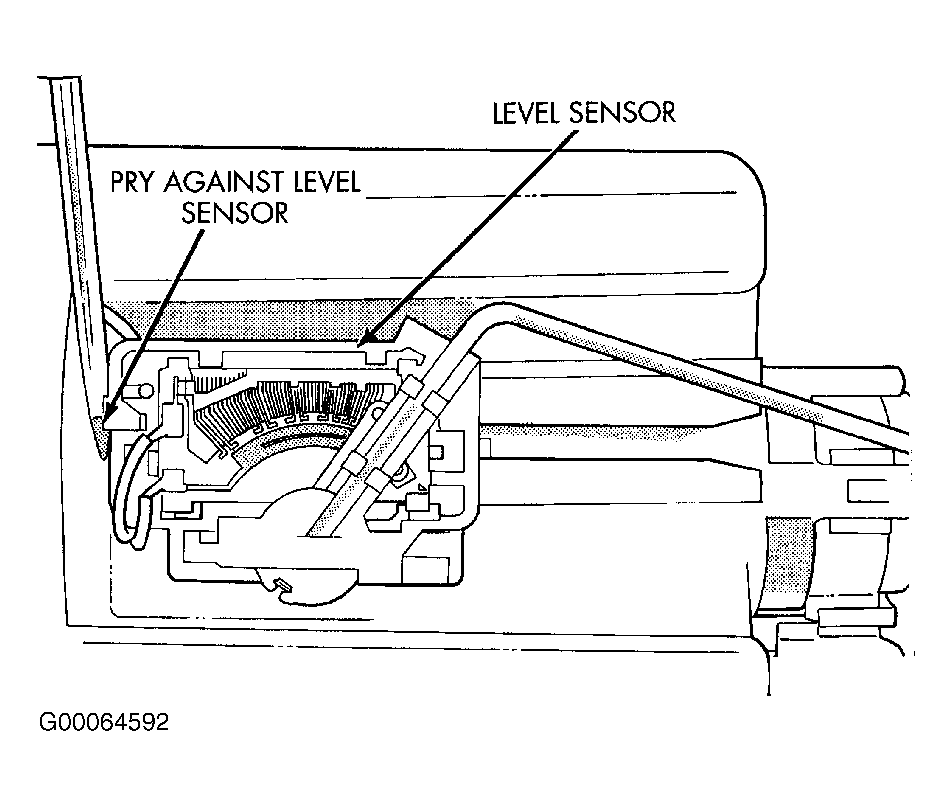

  2. Using Special Tool (C-4334) terminal remover or equivalent, remove terminals from level sensor connector. See Figure. Insert a screwdriver between the fuel pump module and the top of the level sensor housing. See Figure. Push level sensor down slightly.
  3. Slide level sensor wires through opening fuel pump module. See Figure. Slide level sensor out of channel in module.
