Ignition Switch: Installation

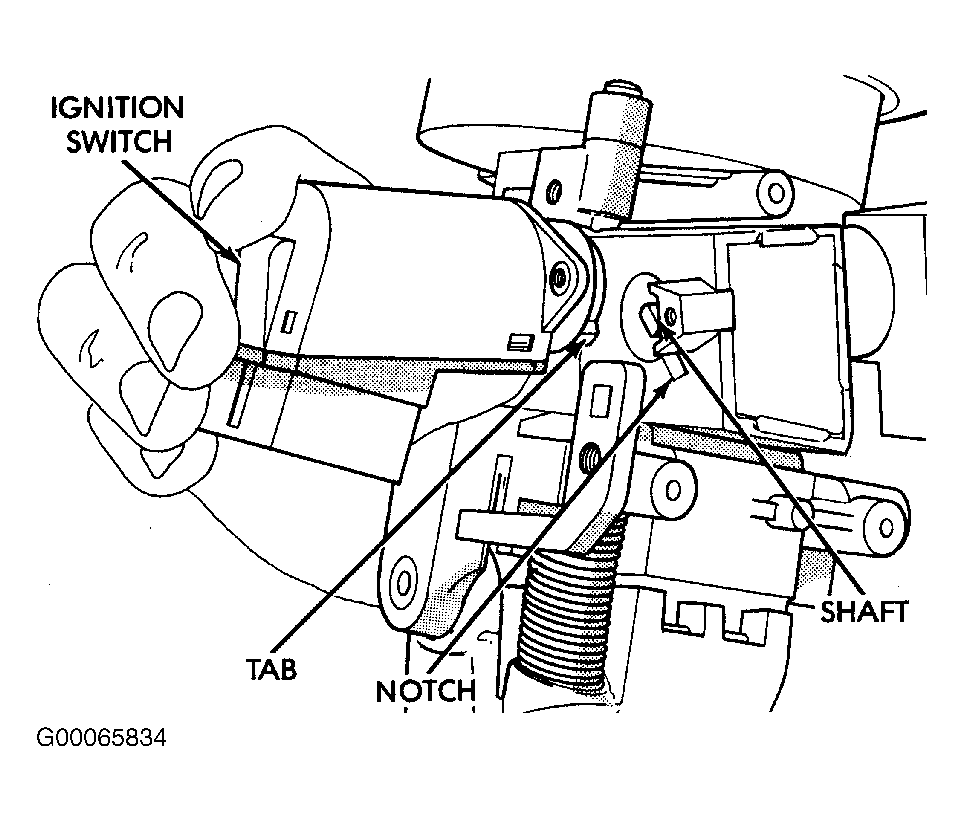

- A tab on the ignition switch indexes to a notch in the lock cylinder housing. See Fig 3. Also, a slot in the end of the ignition switch fits over the shaft in the end of the lock cylinder housing. Use the ignition key to rotate the lock cylinder to align the ignition switch with lock cylinder housing.
- Install and tighten ignition switch mounting screws. Attach electrical connector to ignition switch. Install multi-function switch.
- Install SKIM if equipped, see POWER DOOR LOCKS for installation. Install upper and lower cover on steering column. Install tilt lever. Connect negative cable to battery.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
Courtesy of CHRYSLER CORP.
