Fuse Block

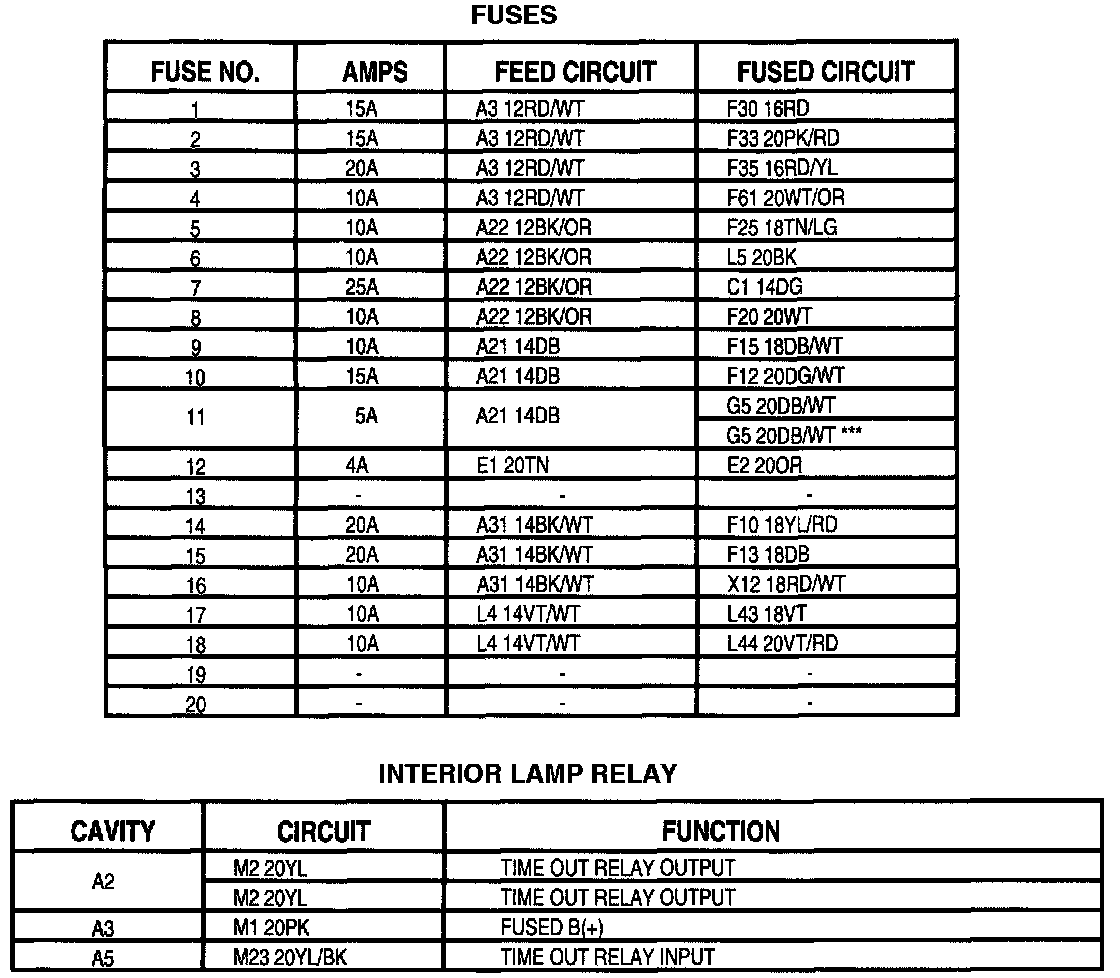

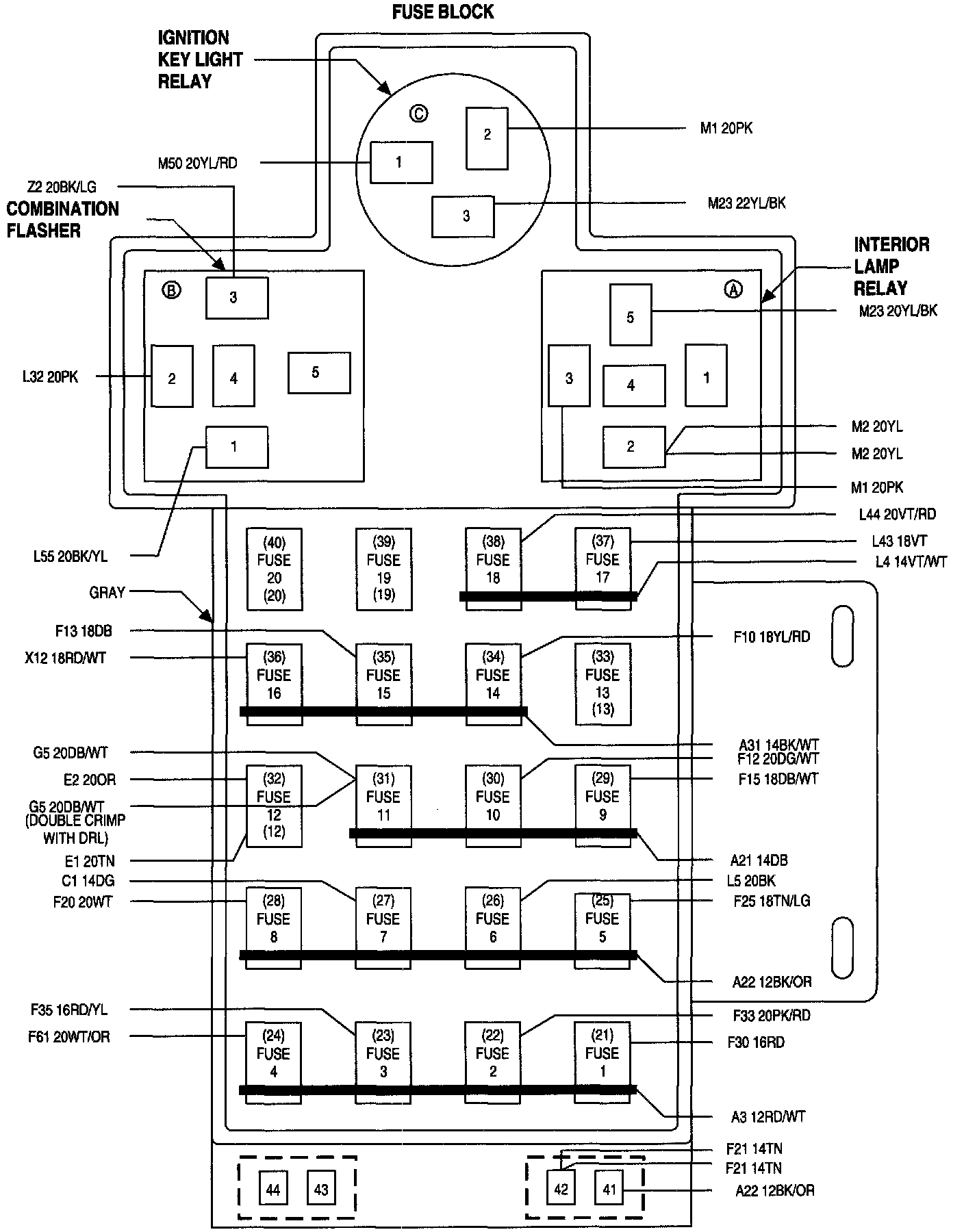

Fuse Block System -- Sheet 8w-11-2:
Fuse Block System -- Sheet 8w-11-3:
Fuse Block System -- Sheet 8w-11-4:
