Removal & Installation

  1. Remove body side panel. Remove 3 bolts from PCM brackets. Disconnect PCM 2 40-way connectors. See Fig 1. Remove PCM.
  2. Attach 2 40-way connectors to PCM. Install PCM. Tighten bolts to 4 N.m (35 INCH lbs.). Install body side panel. Using DRB scan tool, program mileage into PCM. Refer to DRB scan tool and appropriate SELF-DIAGNOSTICS article in ENGINE PERFORMANCE.

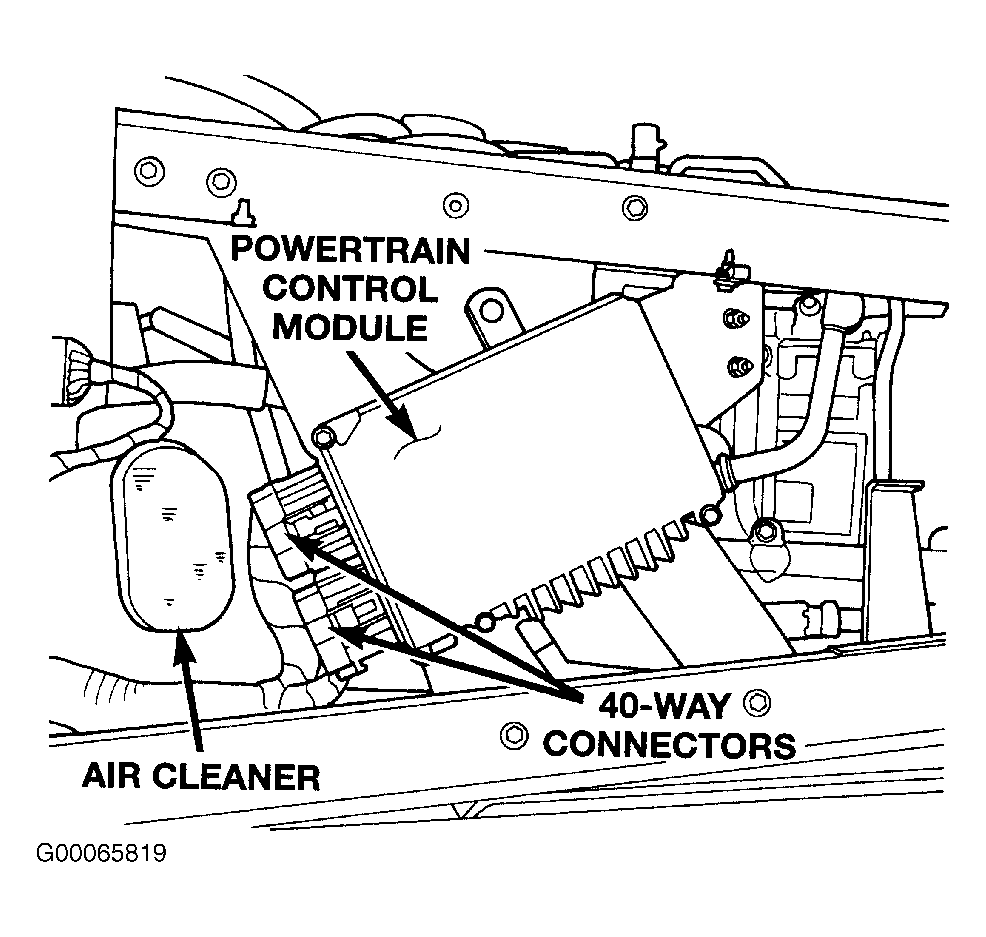

Fig 1: PCM Location
G00065819Courtesy of CHRYSLER CORP.
