Brake Switch

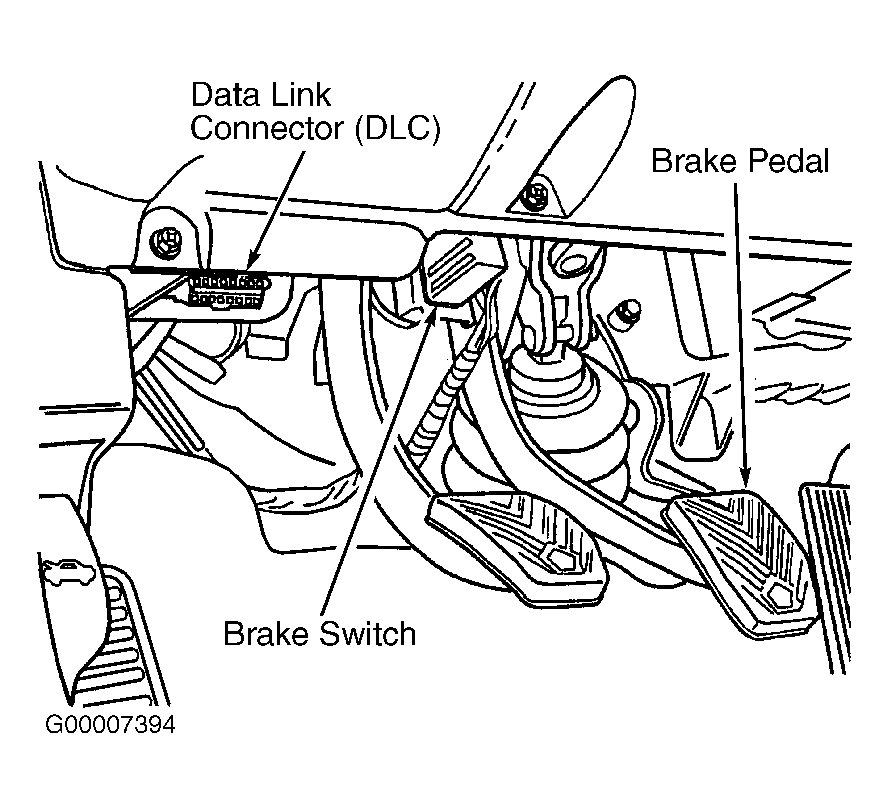

Disconnect brake switch 6-pin connector. See Fig 1. Using DVOM, measure for continuity at brake switch. See Figure. If continuity is not as specified in BRAKE SWITCH CONTINUITY table, check brake switch adjustment. See BRAKE SWITCH under REMOVAL & INSTALLATION. If brake switch adjustment is okay, replace defective brake switch.
BRAKE SWITCH CONTINUITY
| Switch Plunger Position | Check Between Terminals No. | Continuity |
|---|---|---|
| Released | 5 & 6 | Yes |
| Depressed | 1 & 2 | Yes |
| 3 & 4 | Yes | |
