Power Mirror Switch

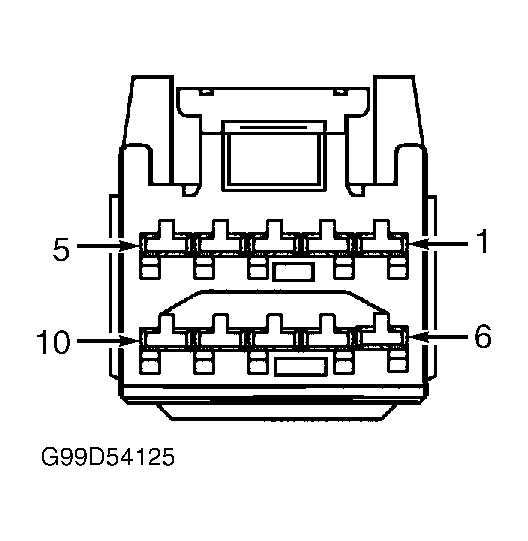

Remove power mirror switch and disconnect harness connector. Check continuity between appropriate terminal at mirror switch (component side) with switch in specified position. See POWER MIRROR SWITCH CONTINUITY TEST table. See Figure . If continuity is not as specified, replace power mirror switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Switch Position | Continuity Between Terminals No. | |
|---|---|---|
| Driver's Mirror | ||
| Up | 4 & 8; 6 & 10 | |
| Down | 4 & 6; 8 & 10 | |
| Left | 4 & 8; 7 & 10 | |
| Right | 4 & 7; 8 & 10 | |
| Passenger's Mirror | ||
| Up | 1 & 10; 4 & 8 | |
| Down | 1 & 4; 10 & 10 | |
| Left | 2 & 10; 4 & 8 | |
| Right | 2 & 4; 8 & 10 | |
