Fuse Block
CAUTION:
When replacing a blown fuse, it is important to use only a fuse having the correct amperage rating. The use of a fuse with a rating other than indicated may result in a dangerous electrical system overload. If a properly rated fuse continues to blow, it indicates a problem in the circuit that must be corrected.

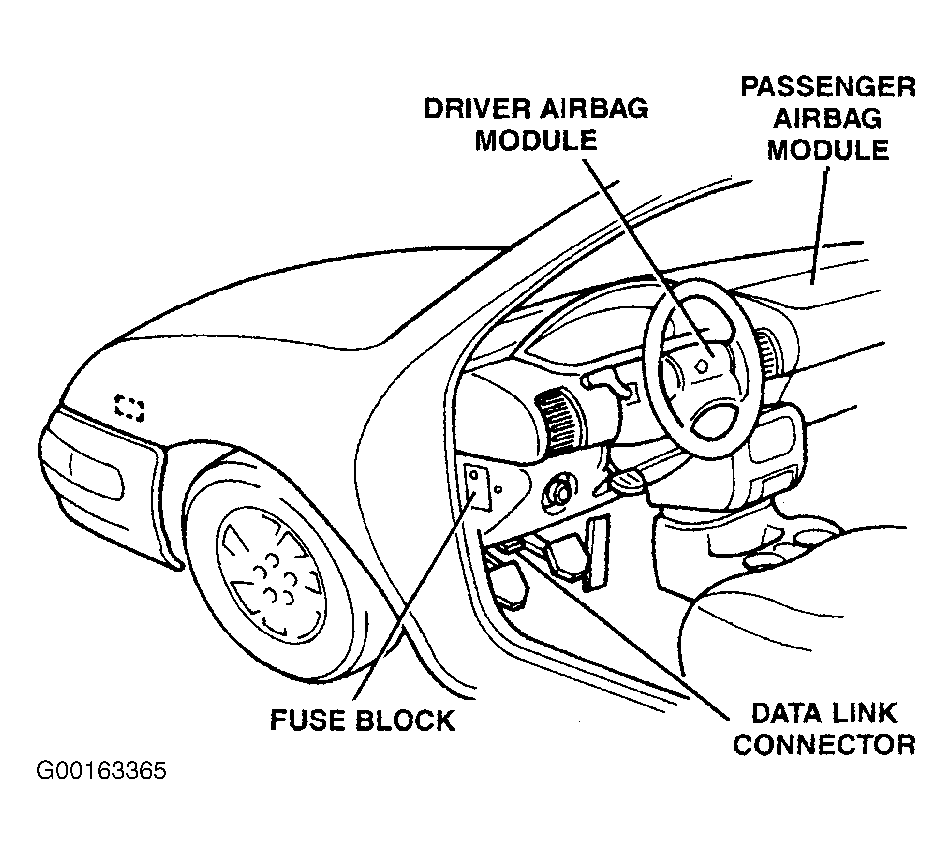

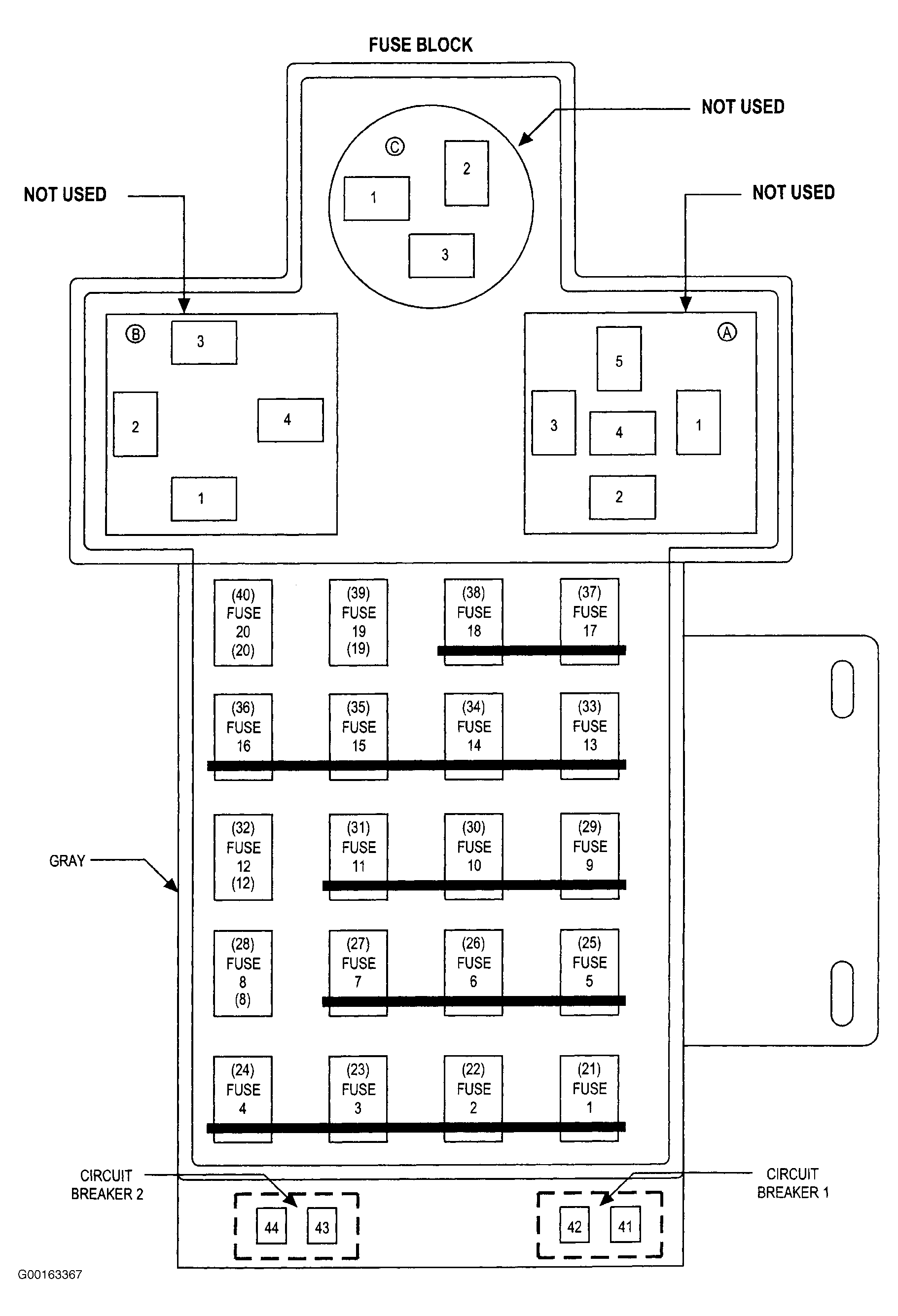

To identify fuse block fuse applications, see FUSE IDENTIFICATION table. The fuse block is located behind fuse access panel at the driver's side of the instrument panel. See Fig 1. To remove the panel, pull it out. To identify fuse block components, see Fig 2.
FUSE BLOCK FUSE IDENTIFICATION
| Fuse (Amp) | Application |
|---|---|
| 1 (10) | Multi Function Switch & Power Mirror Switch |
| 2 (10) | Radio |
| 3 (20) | Sunroof Control Module, Sunroof Switch, Map/Reading Lamp |
| 4 (20) | Wiper Motor & Wiper/Washer Switch |
| 5 (10) | Airbag Diagnostic Module |
| 6 (20) | A/C Heater Blower Motor |
| 7 (10) | Driver/Passenger Power Window Switch, Rear Window Defogger Switch, Brake Transmission Shift Interlock Solenoid, Park/Neutral Position Switch, Back-Up Lamp Switch, A/C Cycling Switch, Power Mirror Switch & Driver/Passenger Door Lock Switch |
| 9 (10) | Airbag Control Module & Left/Right Side Impact Airbag Controller Module |
| 10 (15) | Leak Detection Pump, Powertrain Control Module, Torque Converter Clutch Solenoid, Radiator Fan Relay, Fuel Pump Relay, A/C Compressor Clutch Relay & Controller Anti-Lock Brake |
| 11 (10) | Sentry Key Immobilizer Module, Remote Keyless Entry Module & Instrument Cluster |
| 14 (20) | Remote Keyless Entry |
| 15 (15) | Multi-Function Switch |
| 16 (5) | Remote Keyless Entry |
| 17 (10) | Left Headlight |
| 18 (10) | Right Headlight |
| 19 (10) | Instrument Cluster & Left/Right Fog Lamp |
| 20 (10) | Driver/Passenger Power Mirror |
