Power Distribution Center

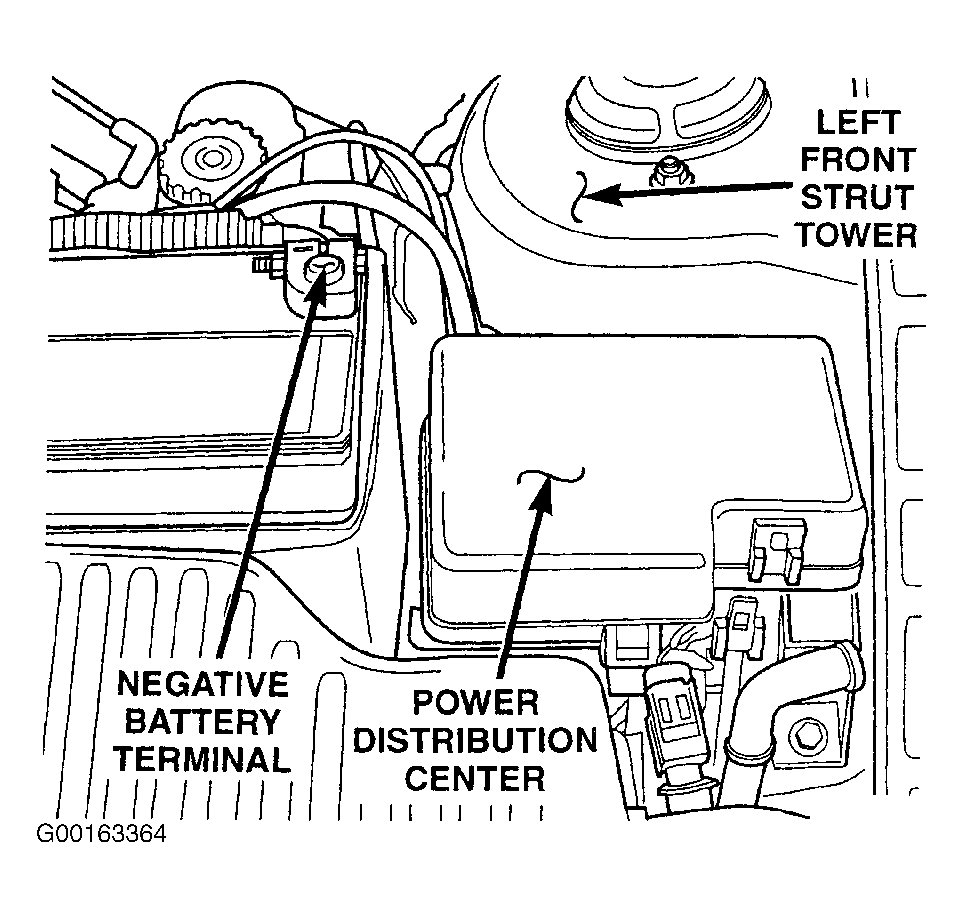

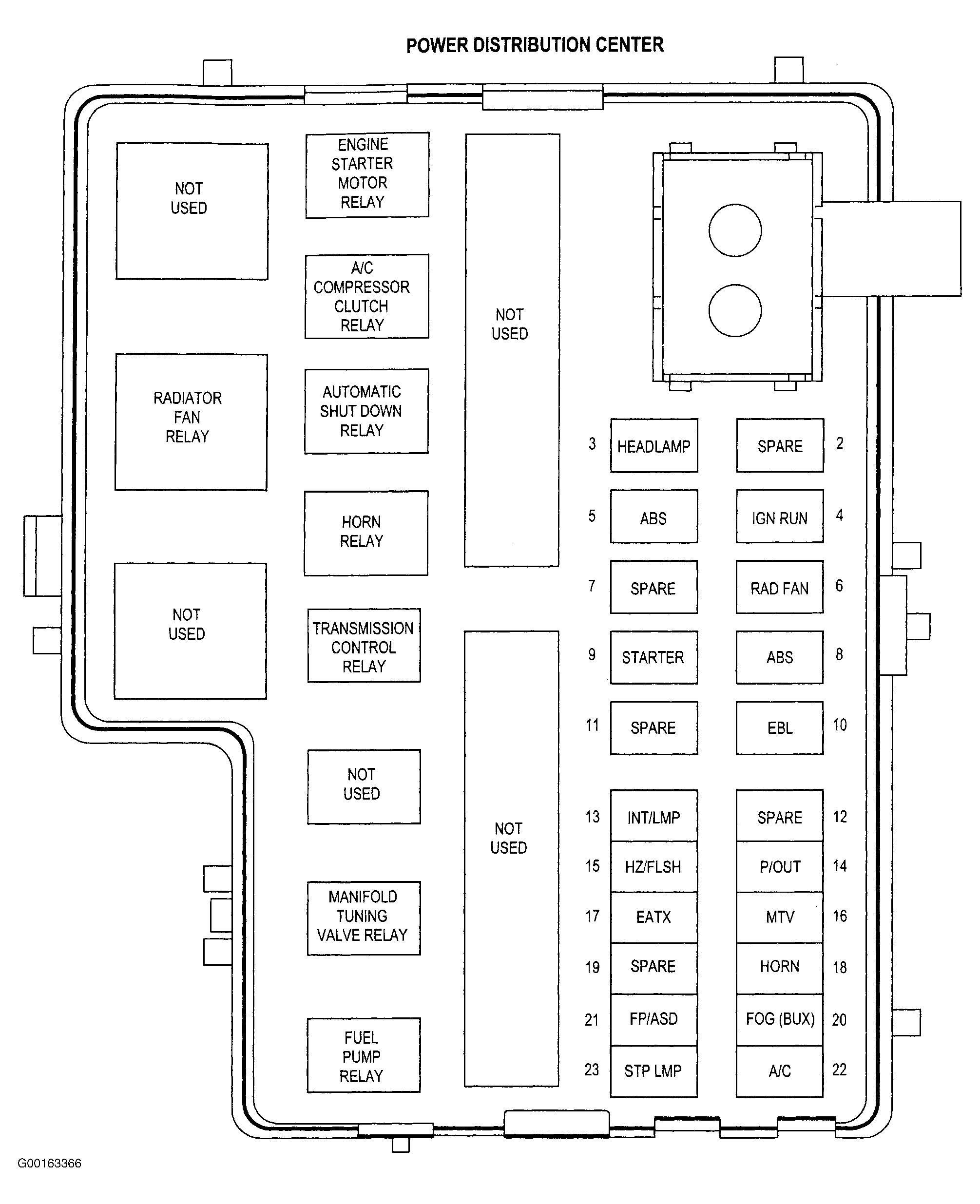

To identify power distribution fuse applications, see POWER DISTRIBUTION CENTER FUSE IDENTIFICATION table. Power distribution center is located in the engine compartment, behind the battery. See Fig 1. A label identifying the components and circuits is located on the underside of the cover. To identify power distribution center components, see Fig 2.
POWER DISTRIBUTION CENTER FUSE IDENTIFICATION
| Fuse (Amp) | Application |
|---|---|
| 3 (40) | Fuse Block |
| 4 (40) | Ignition Switch |
| 5 (30) | Controller Anti-Lock Brake |
| 6 (30) | Radiator Fan Relay |
| 8 (40) | Controller Anti-Lock Brake |
| 9 (30) | Ignition Switch, Engine Starter Motor Relay |
| 10 (40) | Rear Window Defogger Switch |
| 13 (15) | Dome Lamp, Cargo Lamp, Glove Box Lamp Switch, Radio, Sentry Key Immobilizer Module, Instrument Cluster & Left/Right Visor/Vanity Lamp |
| 14 (20) | Ignition Switch |
| 15 (15) | Multifunction Switch |
| 16 (15) | Manifold Tuning Valve Relay |
| 18 (20) | Horn Relay |
| 20 (25) | Not Used |
| 21 (20) | Fuel Pump Relay, Automatic Shut Down Relay, Data Link Connector & Power Control Module |
| 22 (10) | A/C Compressor Clutch Relay |
| 23 (15) | Brake Lamp Switch |
