Disassembly & Reassembly

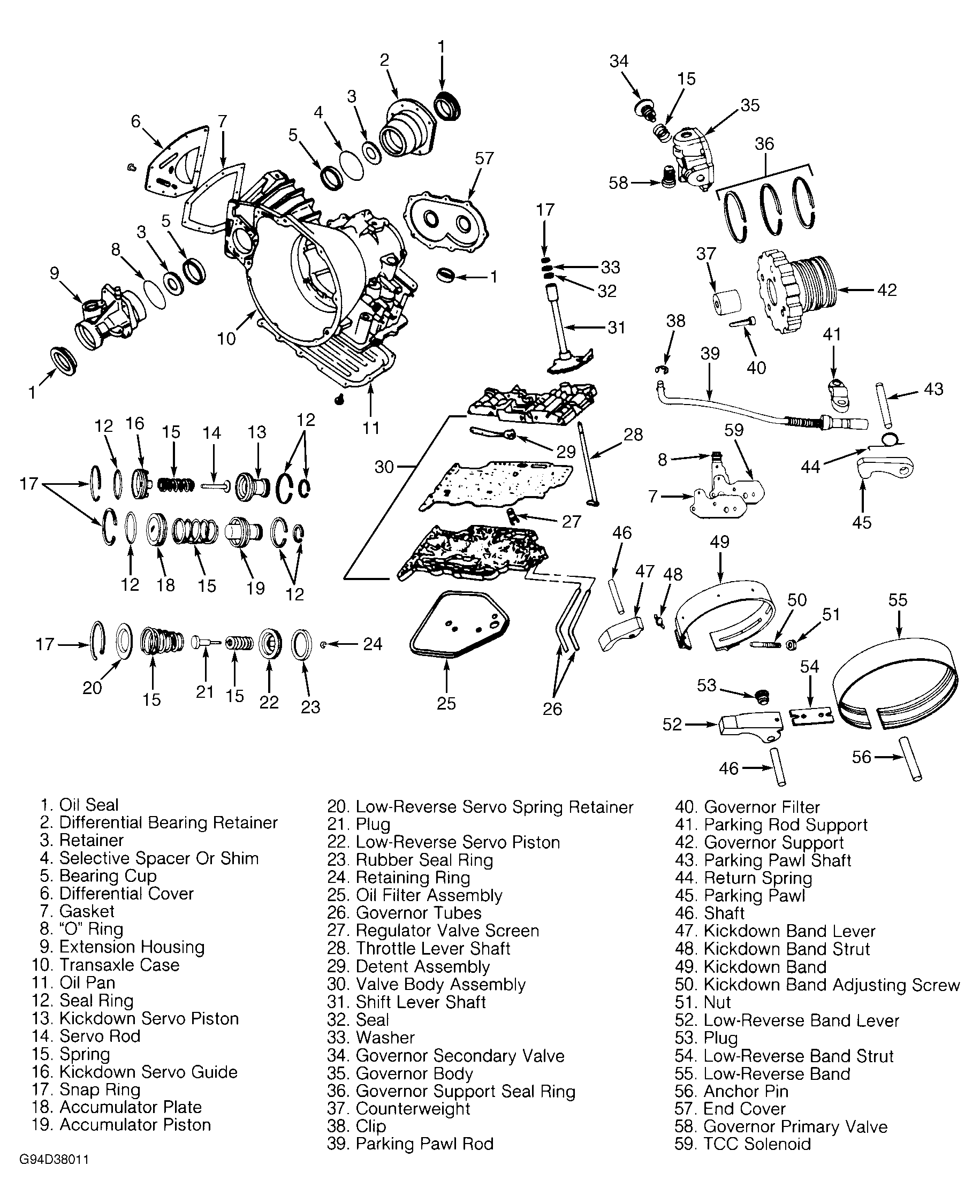

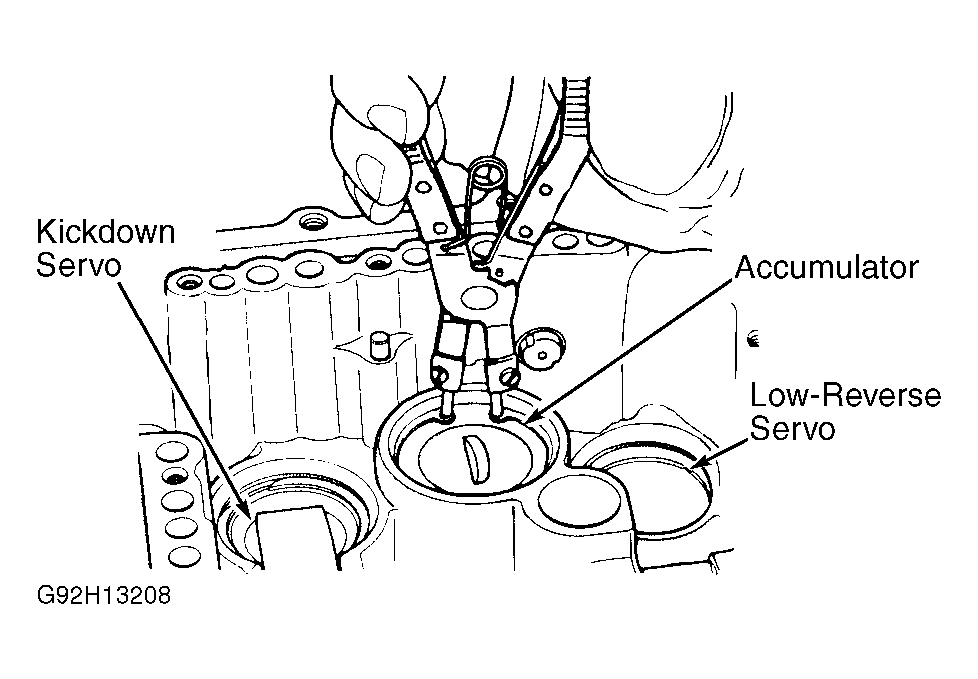

Note location of low-reverse servo. See Figure. Remove snap ring, low-reverse servo spring retainer, spring and low-reverse servo piston. See Figure. To reassemble, reverse disassembly procedure. Replace rubber seal ring on low-reverse servo piston (if necessary).
