Chime Sounds With Driver Door Open

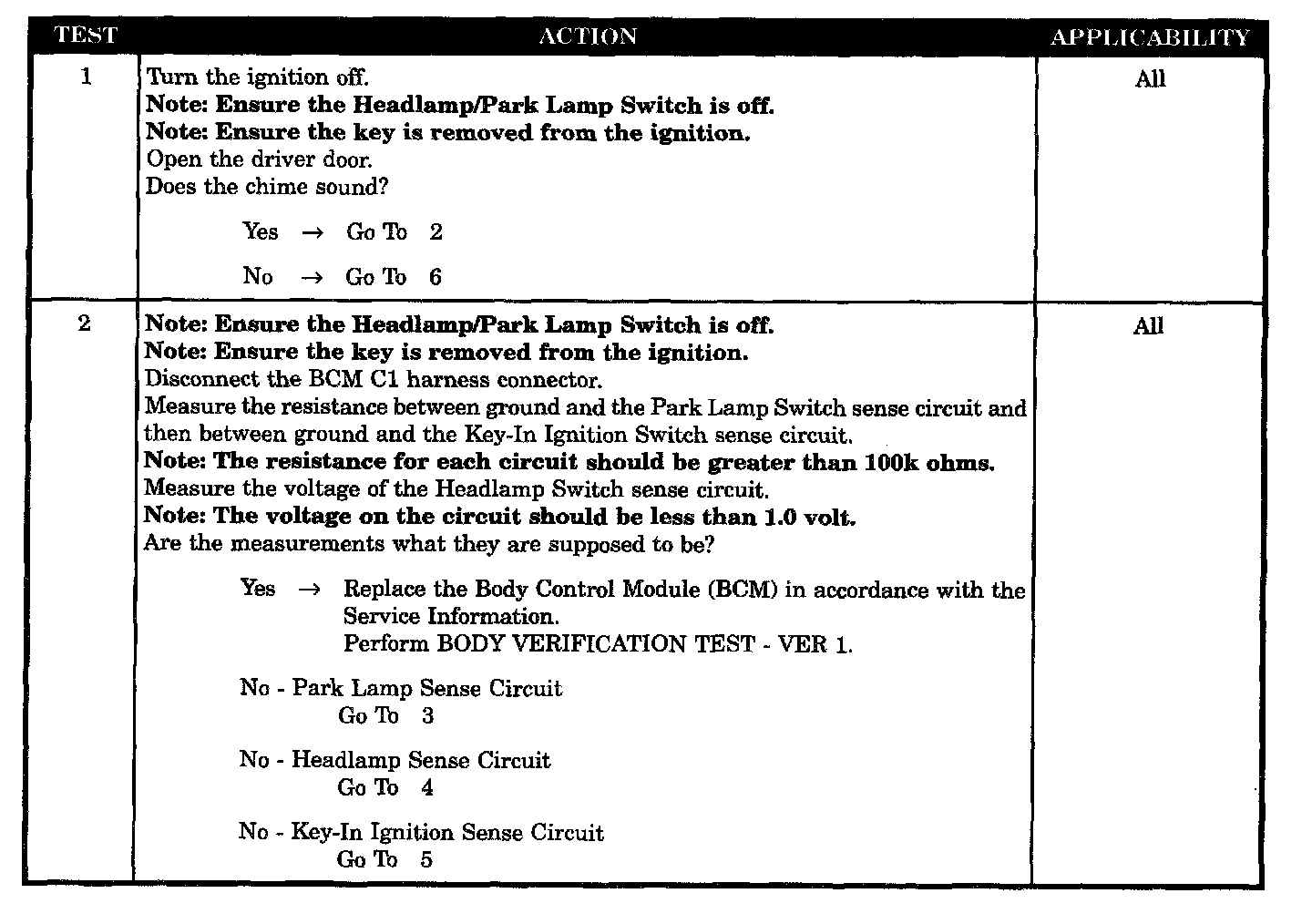

Test 1 - 2:

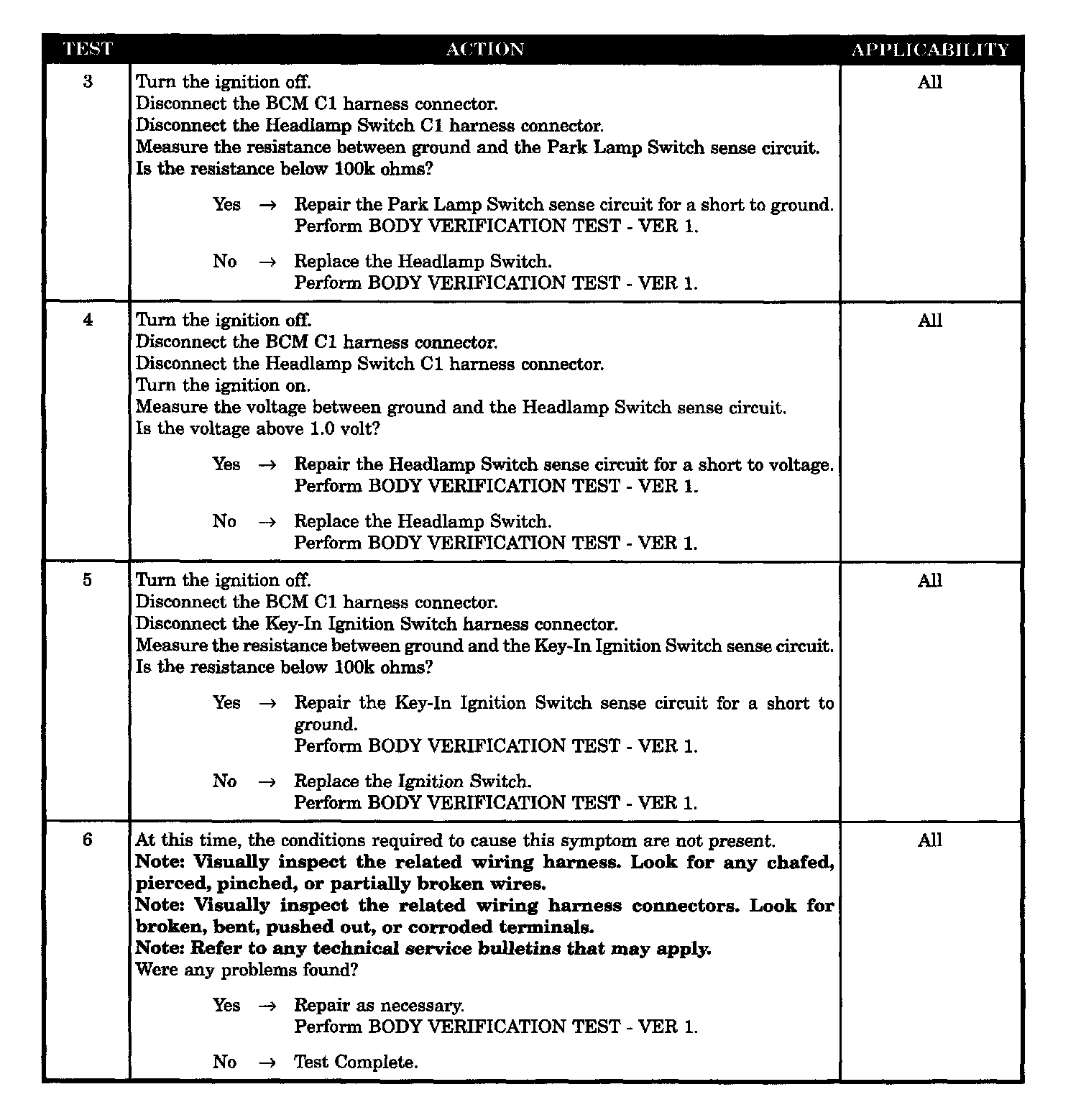

Test 3 - 6:

SYMPTOM
CHIME SOUNDS WITH DRIVER DOOR OPEN

POSSIBLE CAUSES
- Headlamp Switch (shorted internally)
- Key in Ignition Switch (shorted internally)
- Park Lamp Switch (shorted internally)
- Body Control Module
- Key-in Ignition Switch sense circuit shorted to ground
- Park Lamp Switch sense circuit short to ground
- Headlamp Switch sense circuit short to voltage
- Intermittent problem
