Tachometer Not Operating Properly

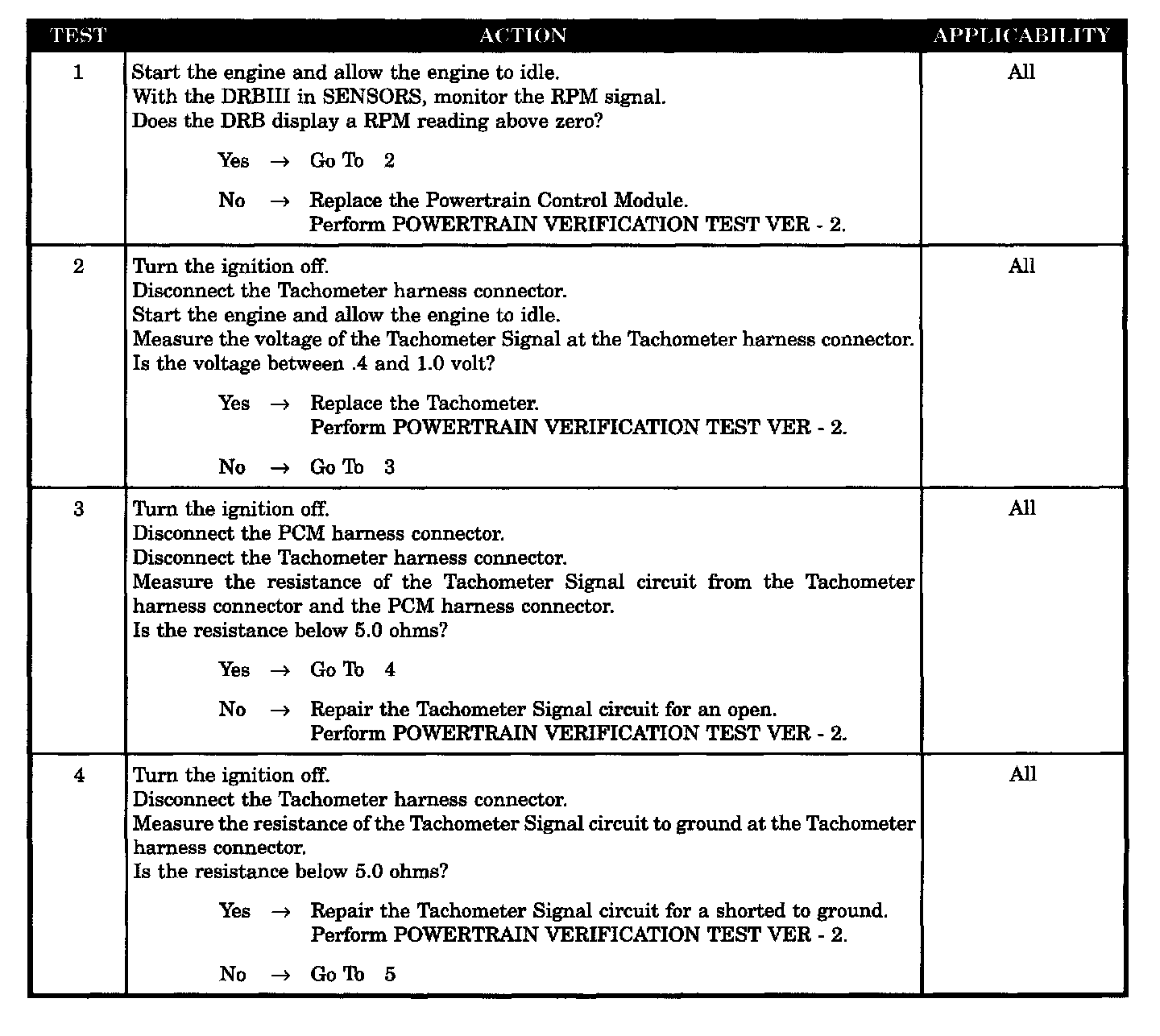

Tests 1 - 4:




Test 5:





SYMPTOM
TACHOMETER NOT OPERATING PROPERLY

POSSIBLE CAUSES
- RPM displayed on DRB
- Tachometer signal circuit open
- Tachometer signal output
- Tachometer signal circuit shorted
- PCM (tachometer)
