Power Distribution Center

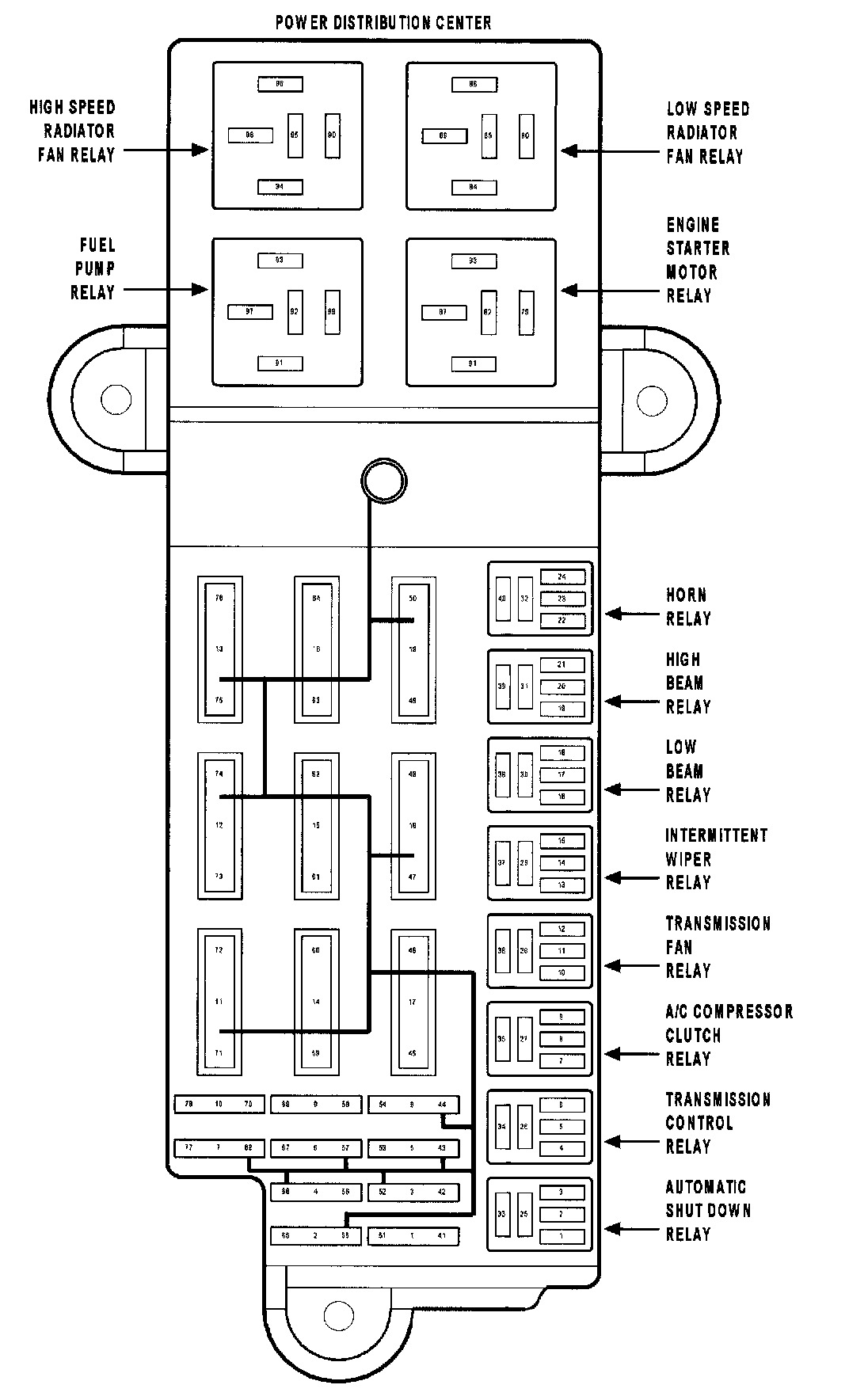

Power Distribution Center:

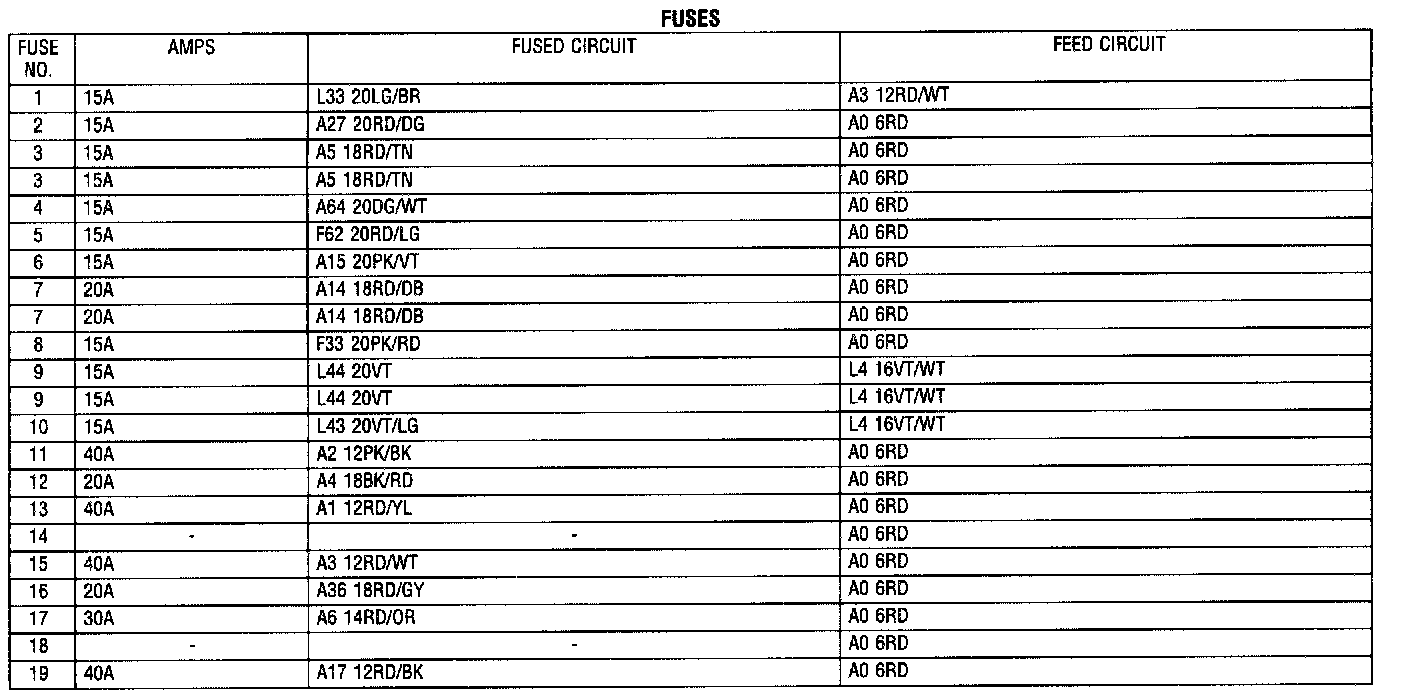

Fuses:

A/C Compressor Clutch Relay:

Automatic Shut Down Relay:

Engine Starter Motor Relay:

Fuel Pump Relay:

High Beam Relay:

High Speed Radiator Fan Relay:

Horn Relay:

Intermittent Wiper Relay:

Lo Beam Relay:

Low Speed Radiator Fan Relay:

Transmission Control Relay:

Transmission Fan Relay:
