Wiper Control Module: Service and Repair

REMOVAL
1. Open hood.
2. Disconnect and isolate the battery negative cable.

Wiper Motor And Linkage Module:

3. Remove wiper arms and blades, disconnect hoses from in-line connectors. Be sure that the in-line connector is saved.
4. Remove engine compartment hood.
5. Remove upper hood side panel left side.
6. Remove hood hinge.
7. Remove the cowl trim cover and disconnect the washer hose.
8. Remove the two braces.

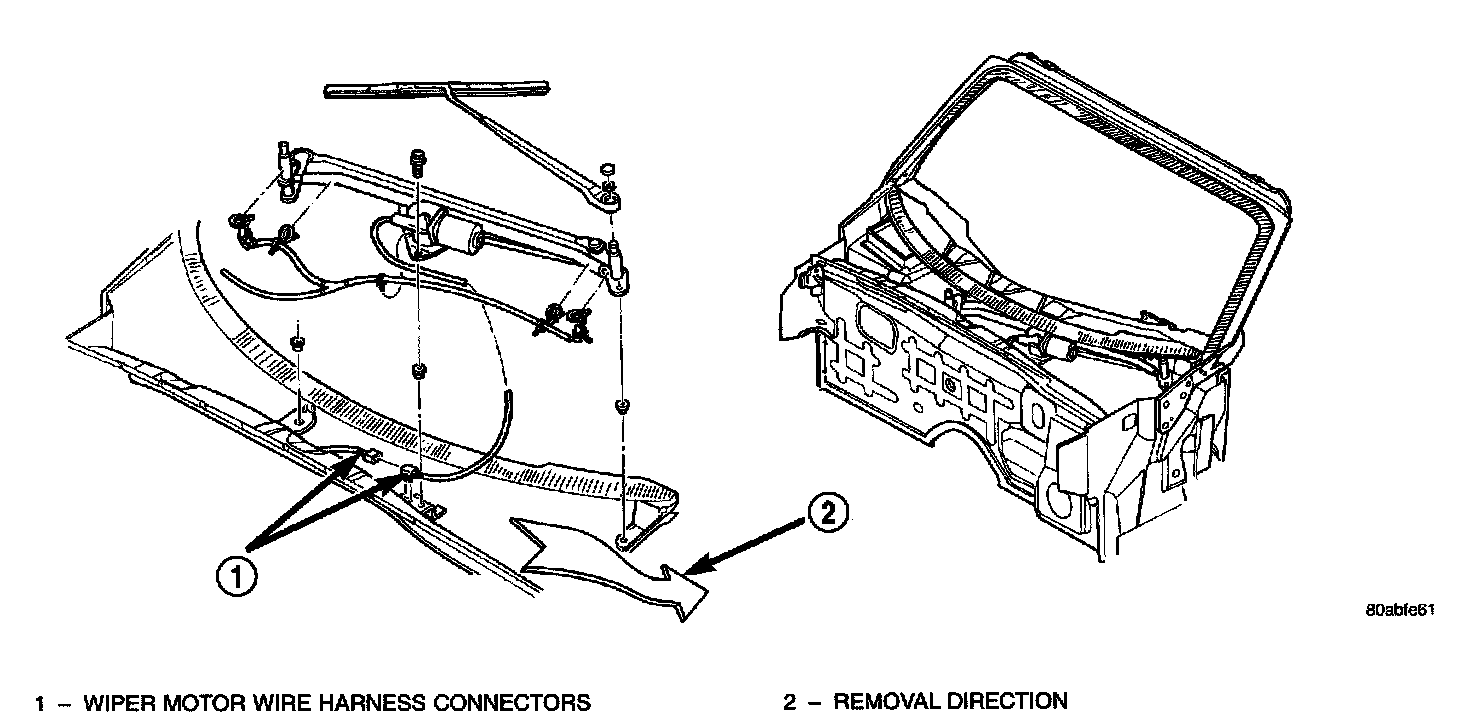

9. Disconnect the motor wire harness connector.
10. Remove three module mounting screws.
11. Slide the module assembly out the left of the cowl using care not scratch the surface of the vehicle.

INSTALLATION
For installation, reverse the above procedures. Tighten the motor assembly mounting screws to 1.7 - 2.26 Nm (15 - 20 in. lbs.) torque.
