HVAC Control Lamp Replacement

REMOVAL

Battery Negative Cable:

1. Disconnect and isolate the battery negative cable.

HVAC Control Lamps:

2. Remove radio bezel and HVAC Control.
3. Remove rear cover from HVAC control.

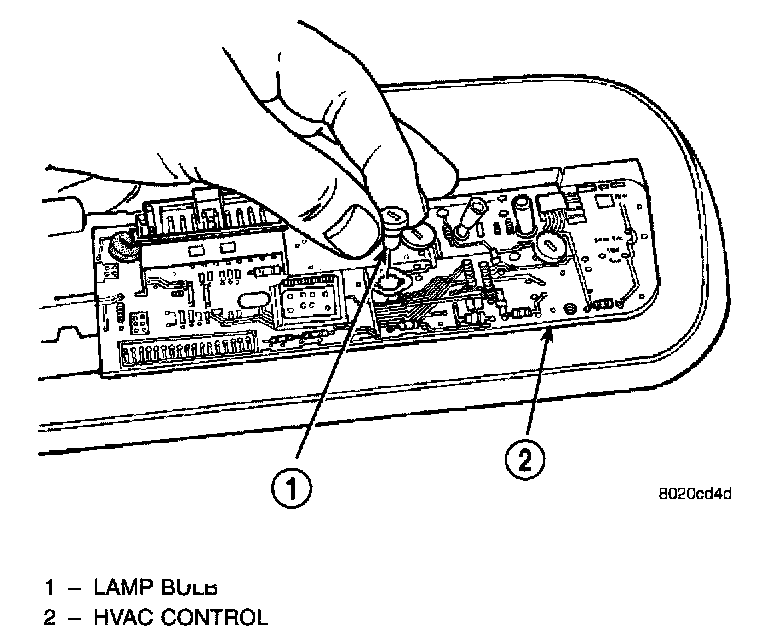

4. Rotate bulb socket counterclockwise one quarter turn.
5. Pull bulb socket from.

INSTALLATION
For installation, reverse the above procedures.
