Starter Controls - DELCO-REMY: Specifications

Solenoid Number Pull-in Winding (1)Amperes Hold-In Winding (2)Amperes
1114336 thru 382 13-15.5 14.4-16.5
(1) At 5 volts.
(2) At 10 volts.
Fig 1: Solenoid Winding Test Connections (Terminal Locations May Vary)
G09333284Courtesy of GENERAL MOTORS COMPANY

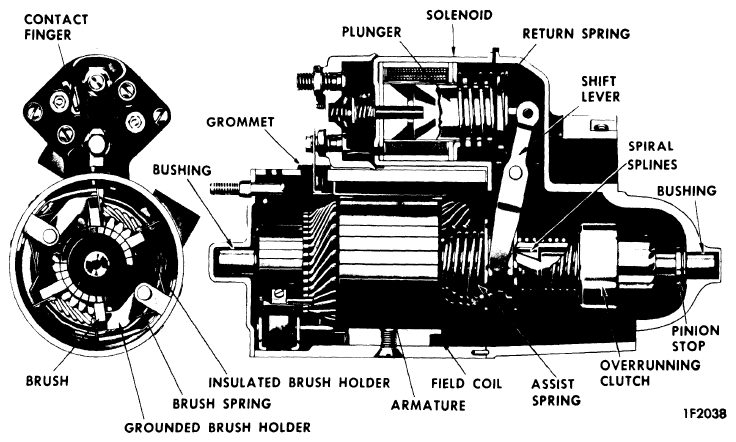

Fig 2: Delco-Remy Enclosed Housing Solenoid Pinion Shift Assembly
G09333285Courtesy of GENERAL MOTORS COMPANY
