Automatic Temperature Control Diagnosis Guide

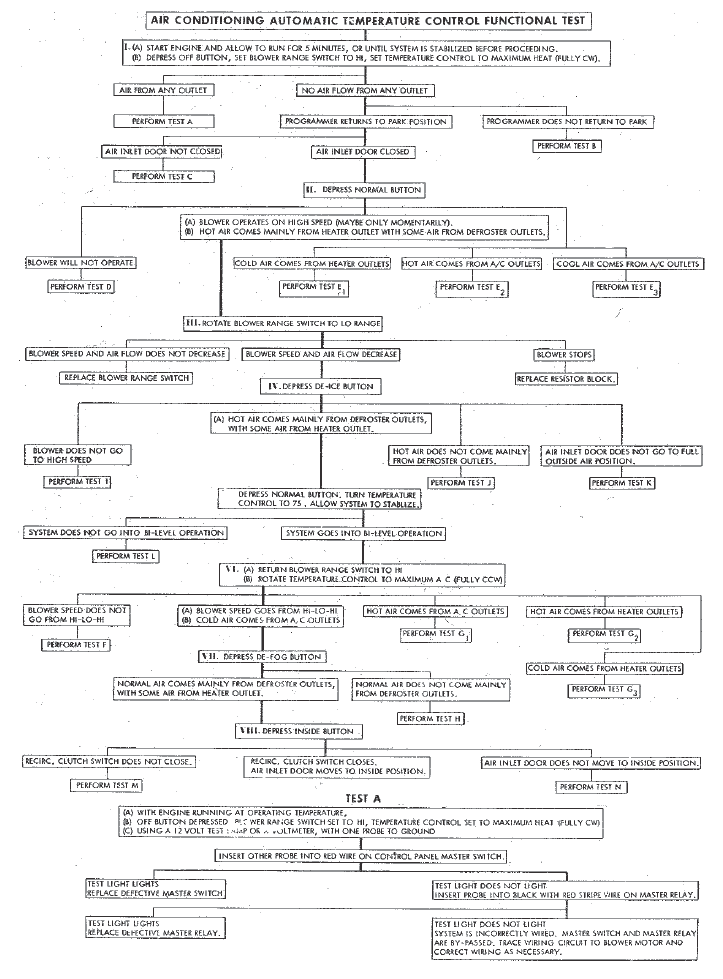

Fig 1: Automatic Temperature Control Diagnosis Chart (1 Of 5)
G09310889Courtesy of GENERAL MOTORS COMPANY

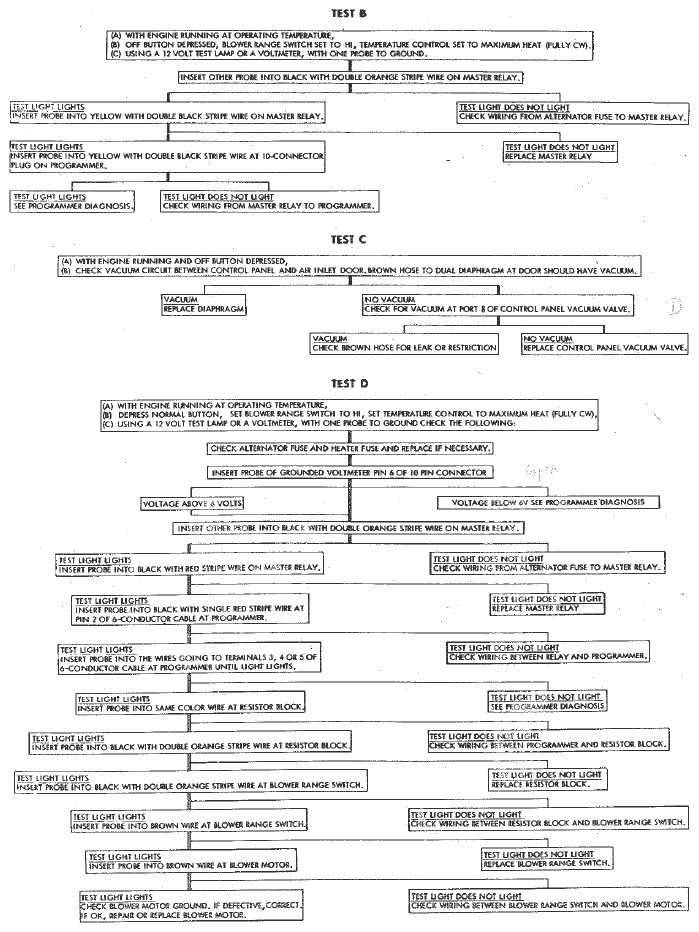

Fig 2: Automatic Temperature Control Diagnosis Chart (2 Of 5)
G09310890Courtesy of GENERAL MOTORS COMPANY

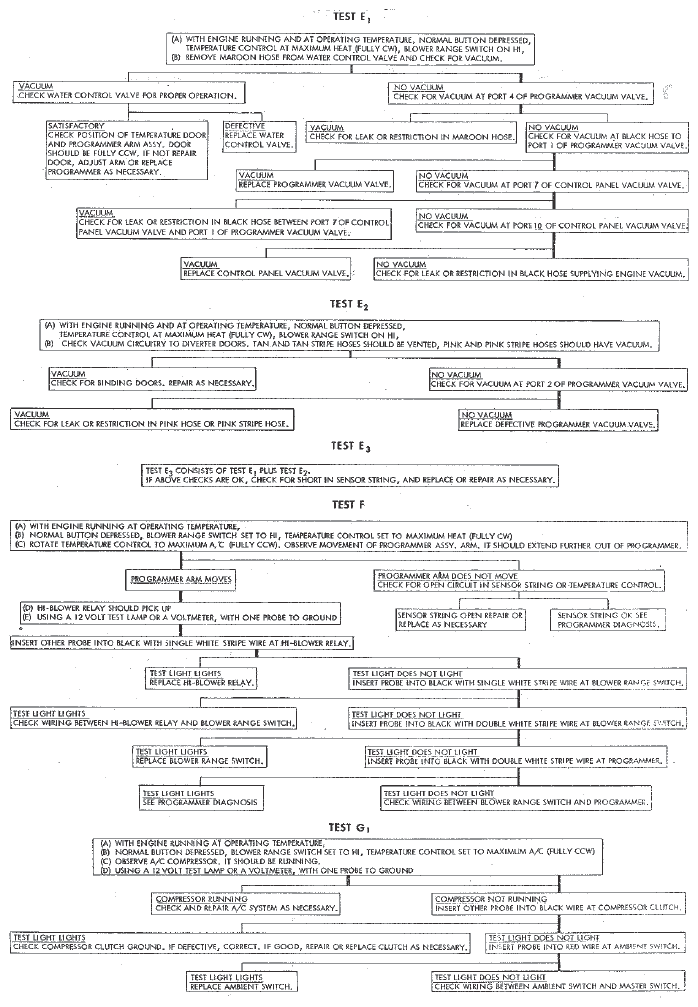

Fig 3: Automatic Temperature Control Diagnosis Chart (3 Of 5)
G09310891Courtesy of GENERAL MOTORS COMPANY

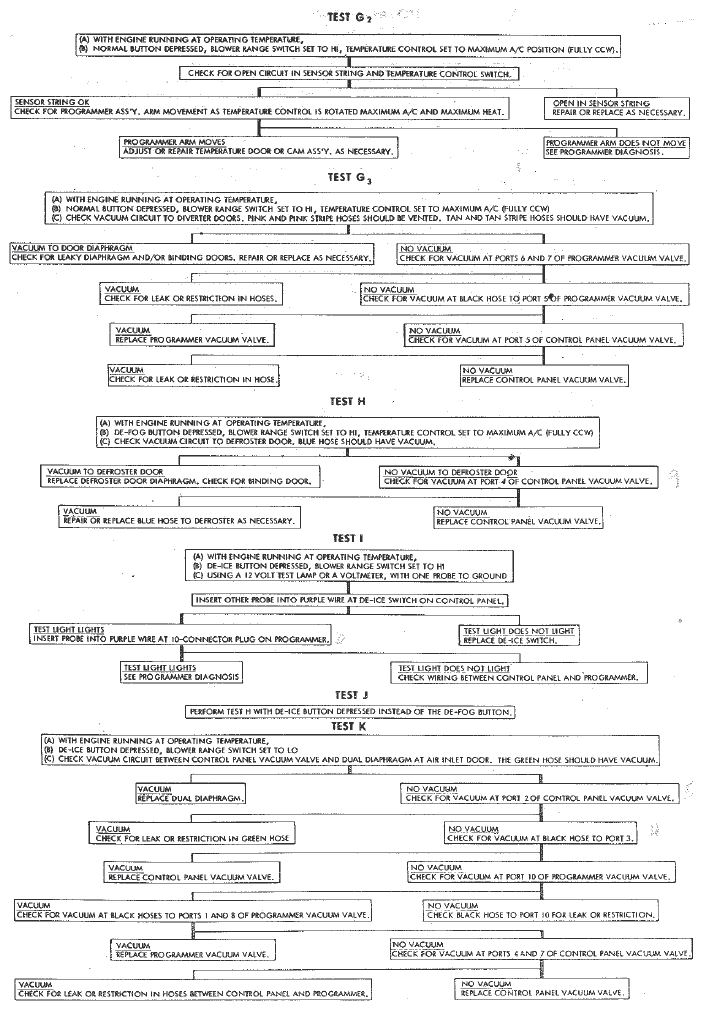

Fig 4: Automatic Temperature Control Diagnosis Chart (4 Of 5)
G09310892Courtesy of GENERAL MOTORS COMPANY

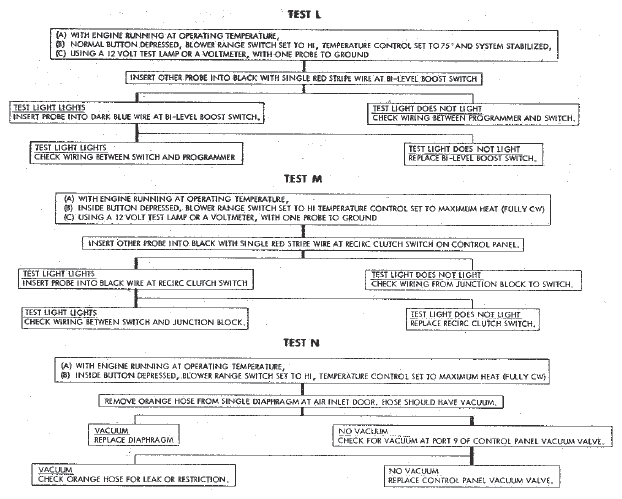

Fig 5: Automatic Temperature Control Diagnosis Chart (5 Of 5)
G09310893Courtesy of GENERAL MOTORS COMPANY

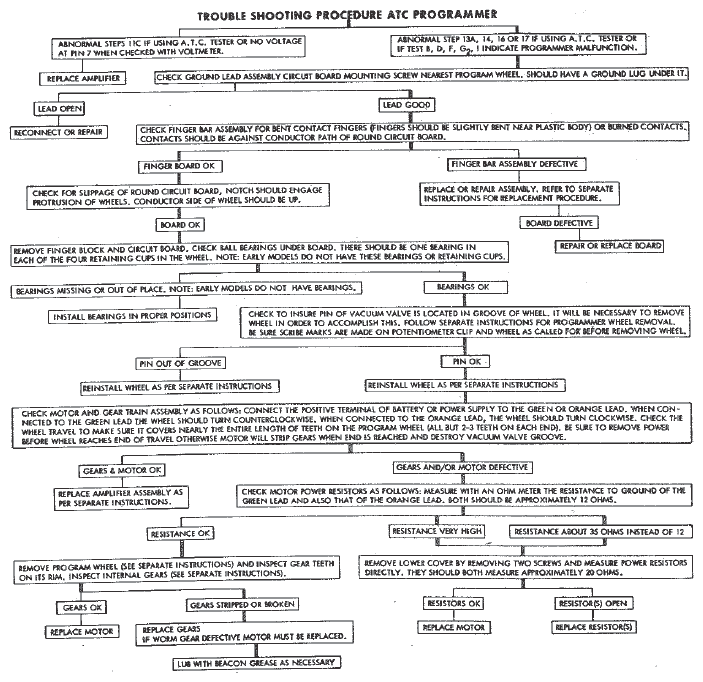

Fig 6: Trouble Shooting Procedure ATC Programmer
G09310894Courtesy of GENERAL MOTORS COMPANY
