Testing Procedure

Follow procedure given under "CONTROL DIAGNOSIS GUIDE" on following pages, or follow procedure listed on plastic cards attached to tester to locate system malfunctions.

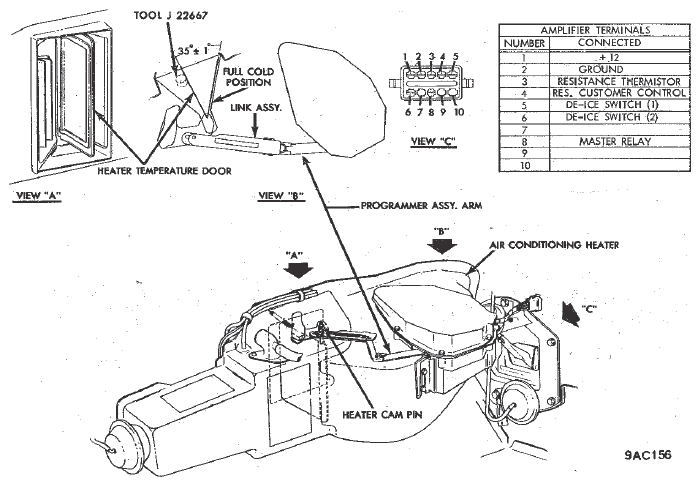

Fig 1: Temperature Door Adjusting Tool Installation

Courtesy of GENERAL MOTORS COMPANY

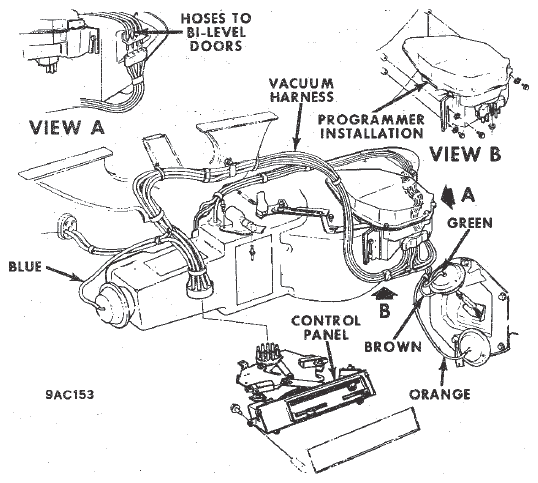

Fig 2: Pontiac Vacuum Control System

Courtesy of GENERAL MOTORS COMPANY

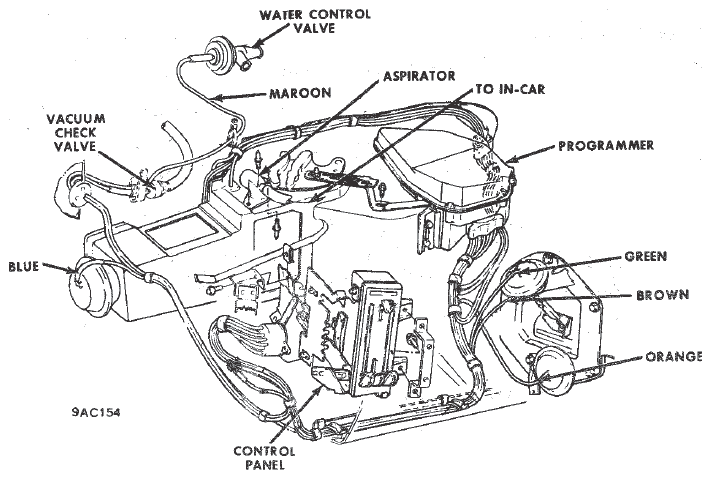

Fig 3: Grand Prix Vacuum Control System

Courtesy of GENERAL MOTORS COMPANY

Fig 4: Vacuum Valve

Courtesy of GENERAL MOTORS COMPANY

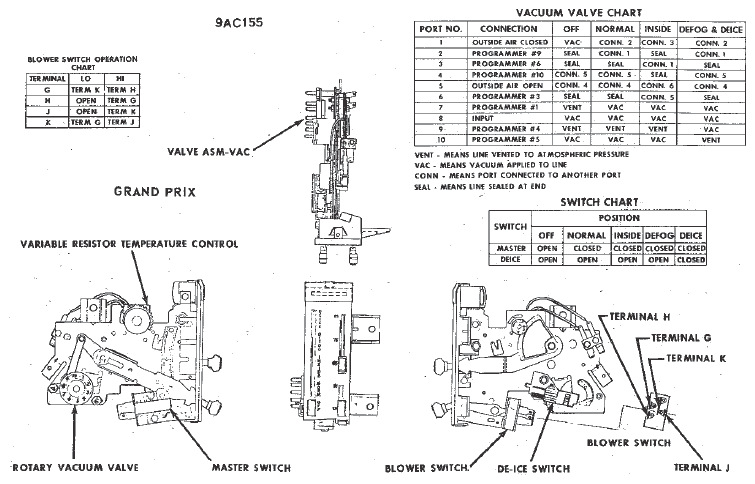

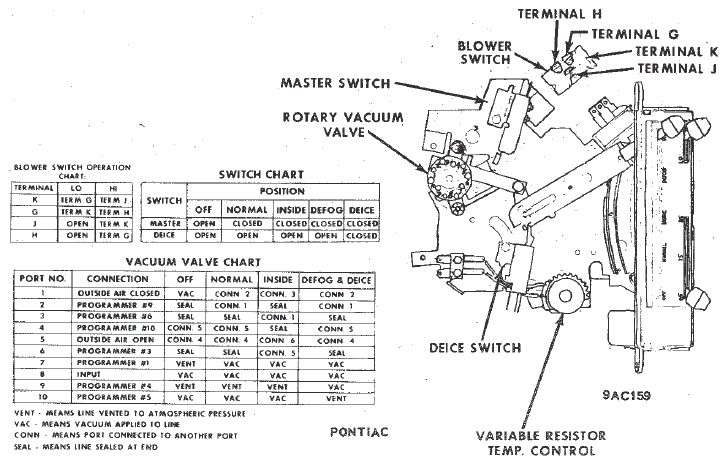

Fig 5: Control Panel Assemblies & Operations Chart

Courtesy of GENERAL MOTORS COMPANY
