Engine Number

FILTERS & CLEANERS

Filter Or Cleaner

Service Interval

Oil Filter

⁽¹⁾ 4 Mos. or 6000 Miles

Carb. Air Cleaner

⁽²⁾ 12 Mos. or 12, 000 Miles

Oil Filler Cap

⁽²⁾ 12 Mos. or 12, 000 Miles

Fuel Filter (In Carb.)

12 Mos. or 12, 000 Miles

P.C.V. Filter (In Air Cleaner)

⁽²⁾ 12 Mos. or 12, 000 Miles

P.C.V. Valve

⁽¹⁾ 12 Mos. or 12, 000 Miles

⁽¹⁾

Replace.

⁽²⁾	Clean & Reoil. After each occasion of driving under severe dust conditions, clean and reoil, regardless.

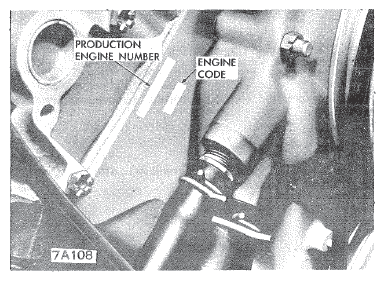

Fig 1: 8 Cylinder Engine Code Location

G09362741

Courtesy of GENERAL MOTORS COMPANY
