Automatic Temperature Control Functional Test

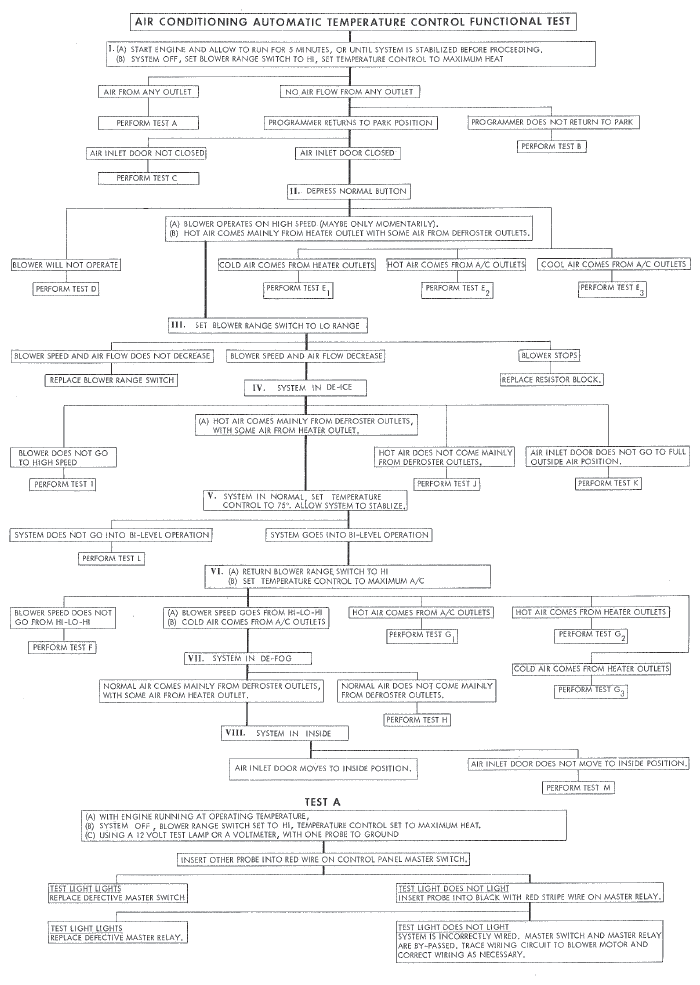

Fig 1: Automatic Temperature Control Diagnosis Guide
G09311138Courtesy of GENERAL MOTORS COMPANY

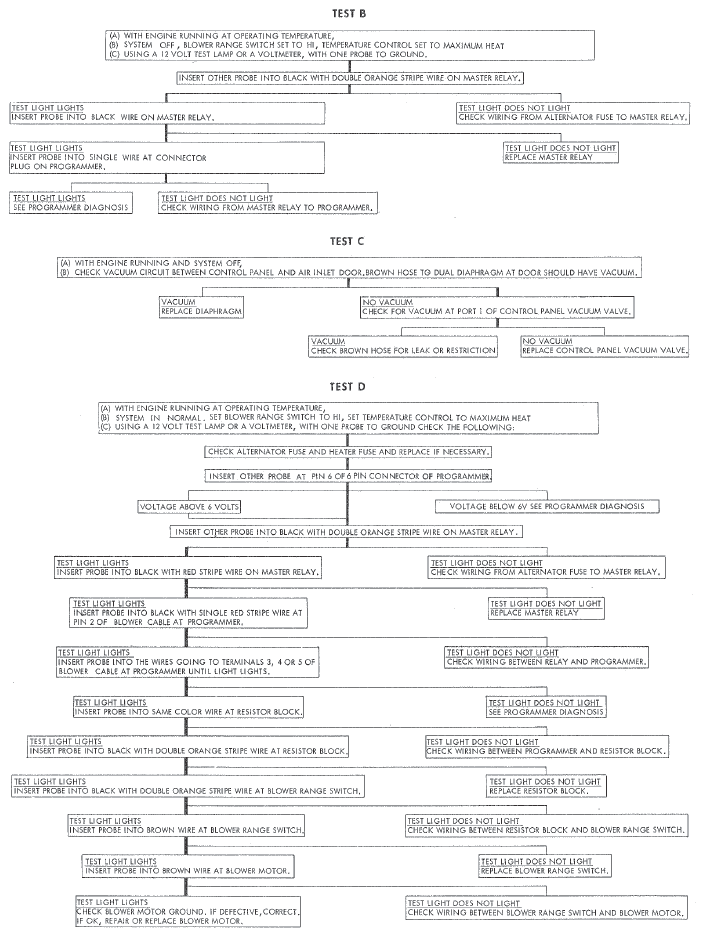

Fig 2: Test B, C & D
G09311139Courtesy of GENERAL MOTORS COMPANY

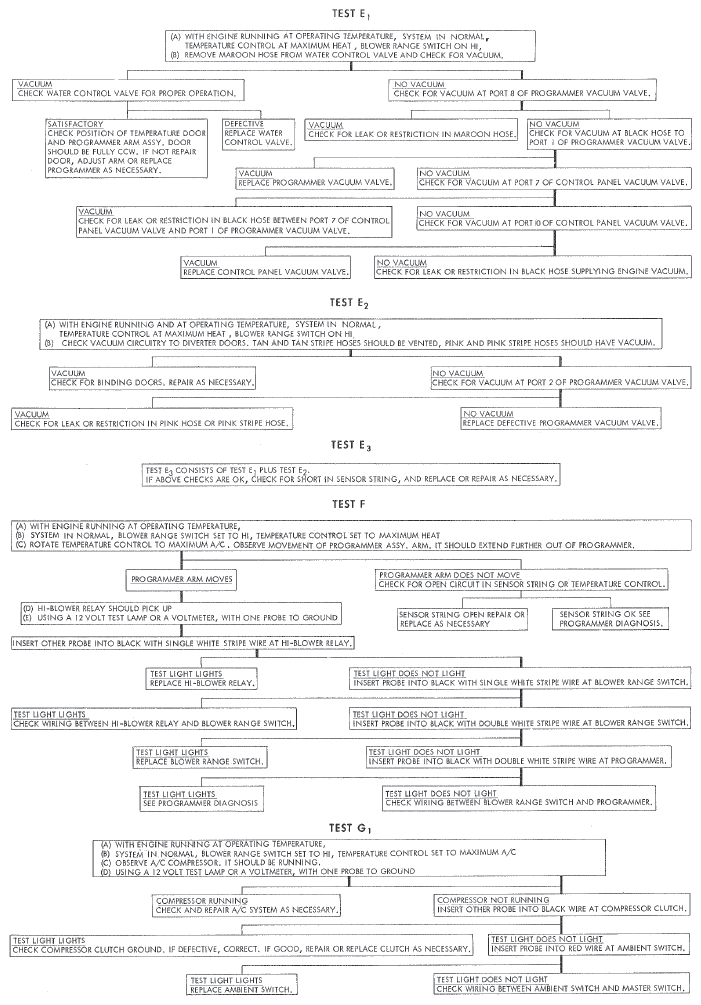

Fig 3: Test E, F & G
G09311140Courtesy of GENERAL MOTORS COMPANY

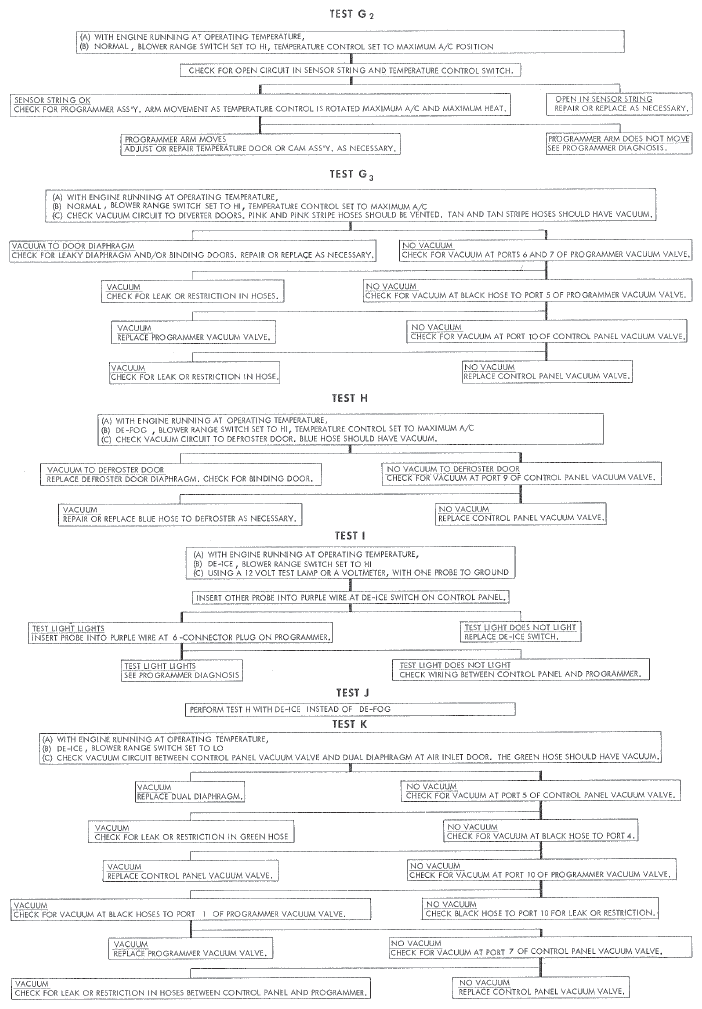

Fig 4: Test G2, G3, H, I, J & K
G09311141Courtesy of GENERAL MOTORS COMPANY

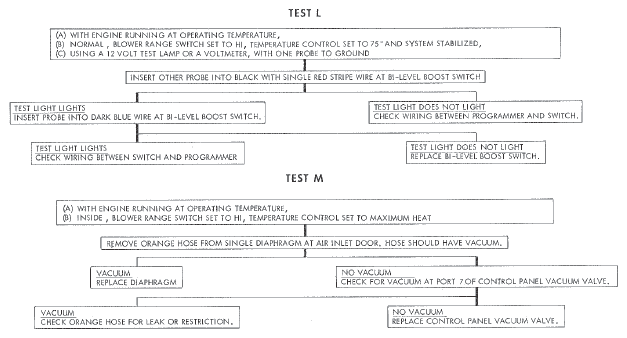

Fig 5: Test L & M
G09311142Courtesy of GENERAL MOTORS COMPANY

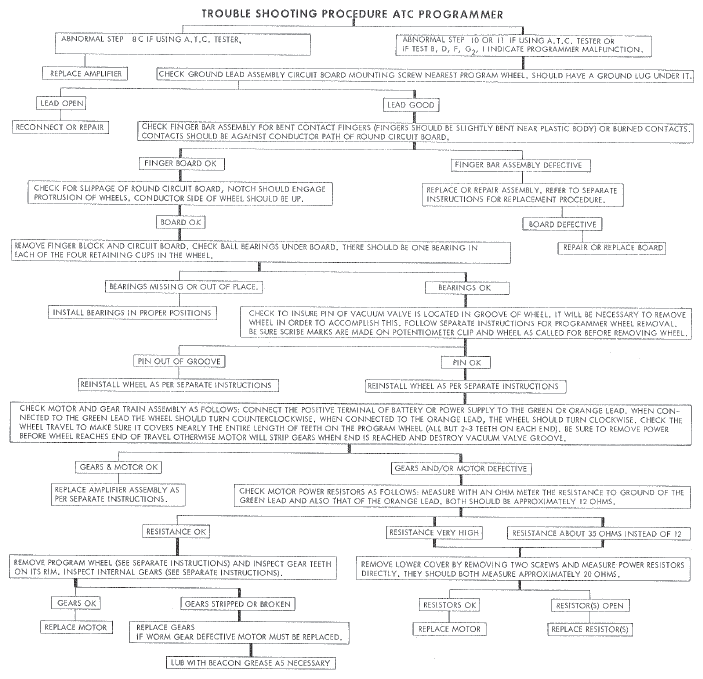

Fig 6: Trouble Shooting Procedure ATC Programmer
G09311143Courtesy of GENERAL MOTORS COMPANY
