Testing Procedure

For test set connections and testing procedure, and programmer component replacement, refer to "General Motors Automatic Temperature Control Testing" in this section  .

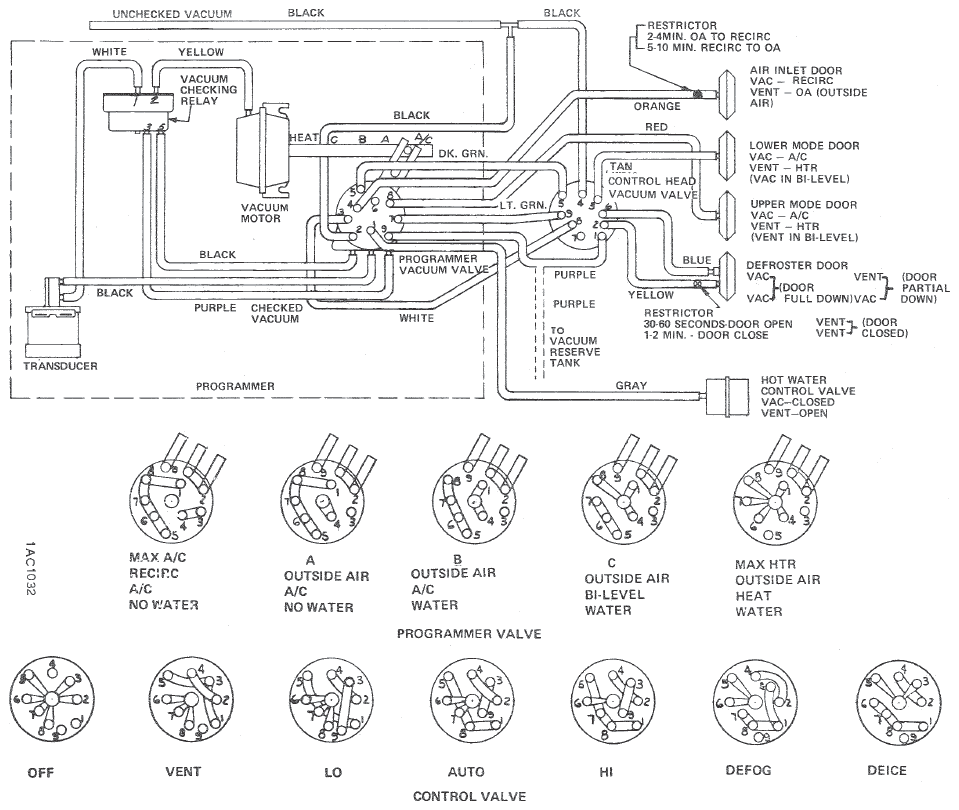

Fig 1: Vacuum Schematic - Catalina, Grandville, Bonneville

Courtesy of GENERAL MOTORS COMPANY

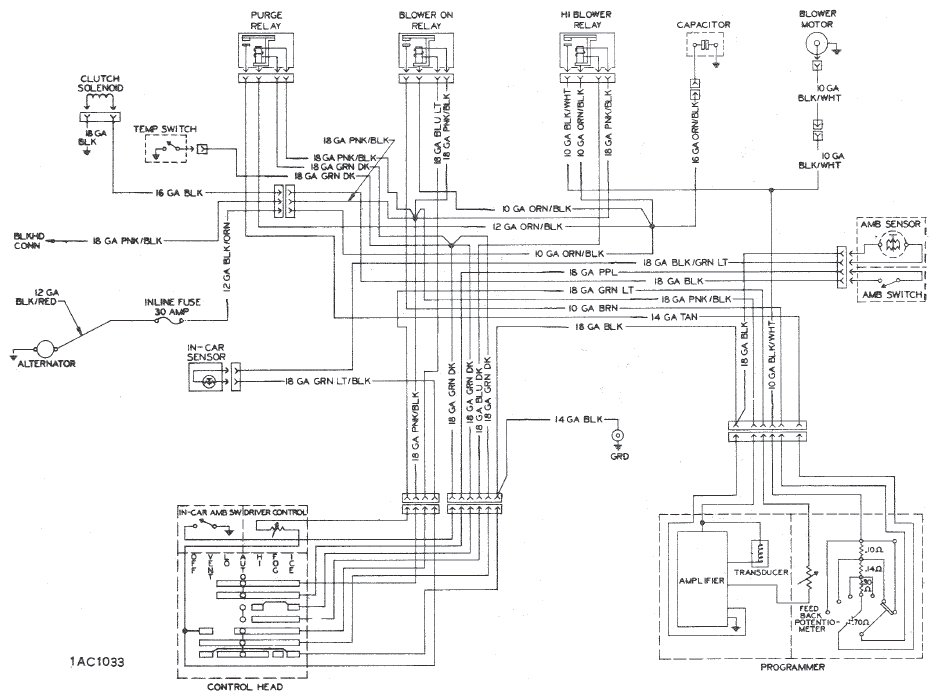

Fig 2: Wiring Diagram - Catalina, Grandville, Bonneville

Courtesy of GENERAL MOTORS COMPANY
