Phase II Catalytic Converter

This converter, also called a 3-way converter, is able to control all three major exhaust emissions: NOx, HC and CO. A special coating on the catalyst beads makes this possible.

NOTE: For further information, refer to CATALYTIC CONVERTERS article in EXHAUST EMISSION SYSTEMS section.

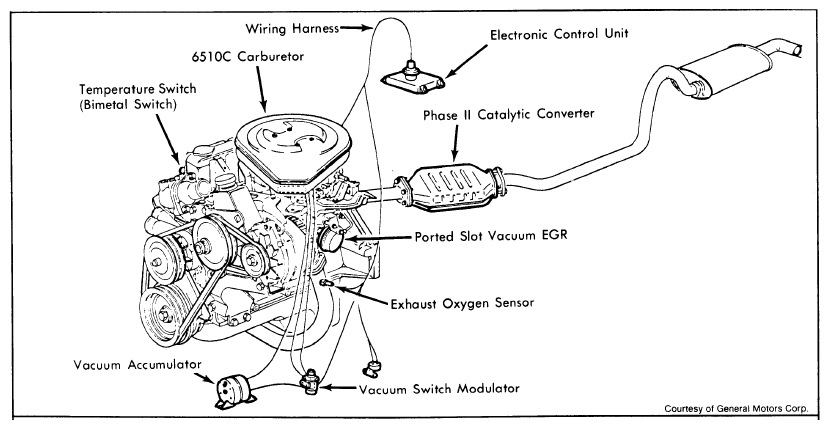

Fig 1: Illustrating the Electronic Fuel Control (EFC) System
G09354742Courtesy of GENERAL MOTORS COMPANY

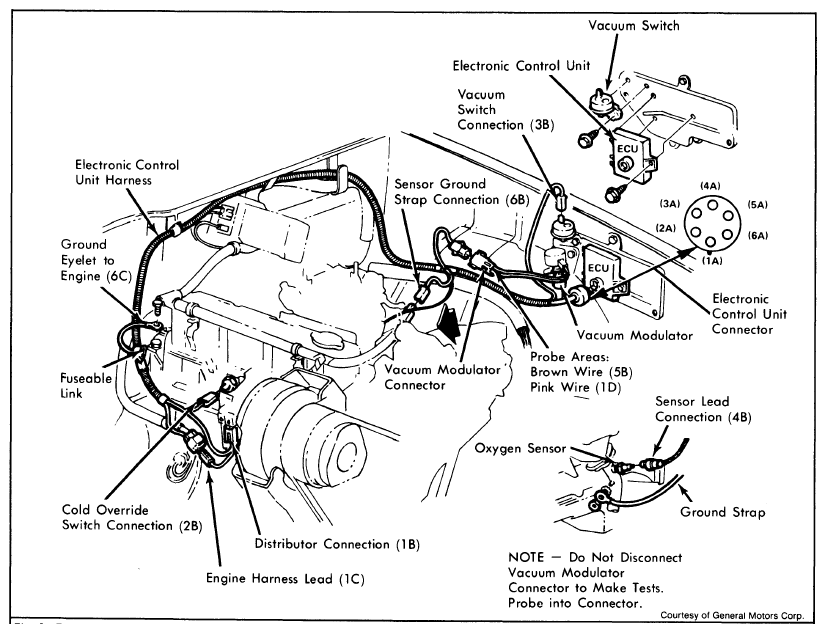

Fig 2: Electrical Wiring Schematic of the Electronic Fuel Control System
G09354743Courtesy of GENERAL MOTORS COMPANY
