Wiper Switch: Service and Repair

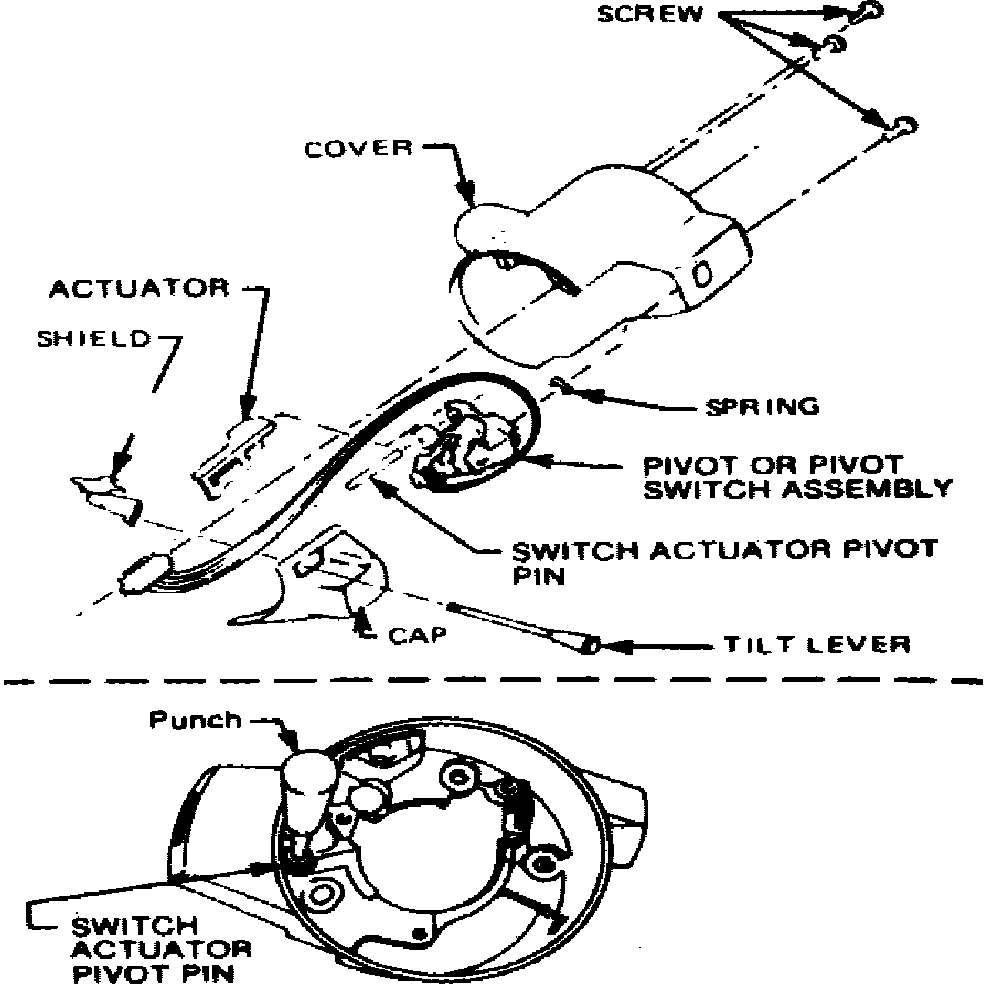

Fig. 16 Windshield wiper switch removal & installation. Models w/tilt wheel:

Fig. 17 Windshield wiper switch removal & installation. Models less tilt wheel:

EXC. PARISIENNE & SAFARI
1. Remove steering wheel as described under Horn Sounder and Steering Wheel, Replace.
2. Remove turn signal switch as described under Turn Signal Switch, Replace.
3. Remove ignition lock and buzzer as described under Ignition Lock, Replace.
4. Remove and install cover and wiper switch as shown in Fig. 16 and 17.
5. Reverse remaining procedure to install.
