Pick-Up Coil

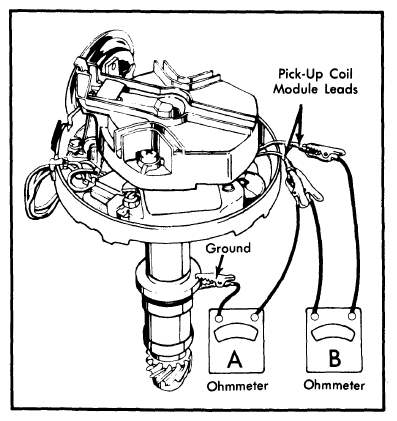

- Connect vacuum pump to vacuum advance unit. If vacuum unit is inoperative, replace unit. Remove pick-up coil connector (Green and White wires) from electronic module. Connect ohmmeter leads to either pick-up coil lead and to distributor housing. See "A" in Fig 1. Set ohmmeter in middle scale. Operate vacuum advance throughout vacuum range. Reading should be infinite at all times.
Courtesy of AMERICAN MOTORS/RENAULT CORP.
- Connect ohmmeter leads to pick-up coil leads (Green and White wires shown in "B" of Fig 1). Again use middle scale of ohmmeter. Operate vacuum advance throughout vacuum range. Ohmmeter should read 500-1500 ohms in all advance positions. If either reading is not to specifications, replace pick-up coil.
