C1D - Map/BARO Output Check

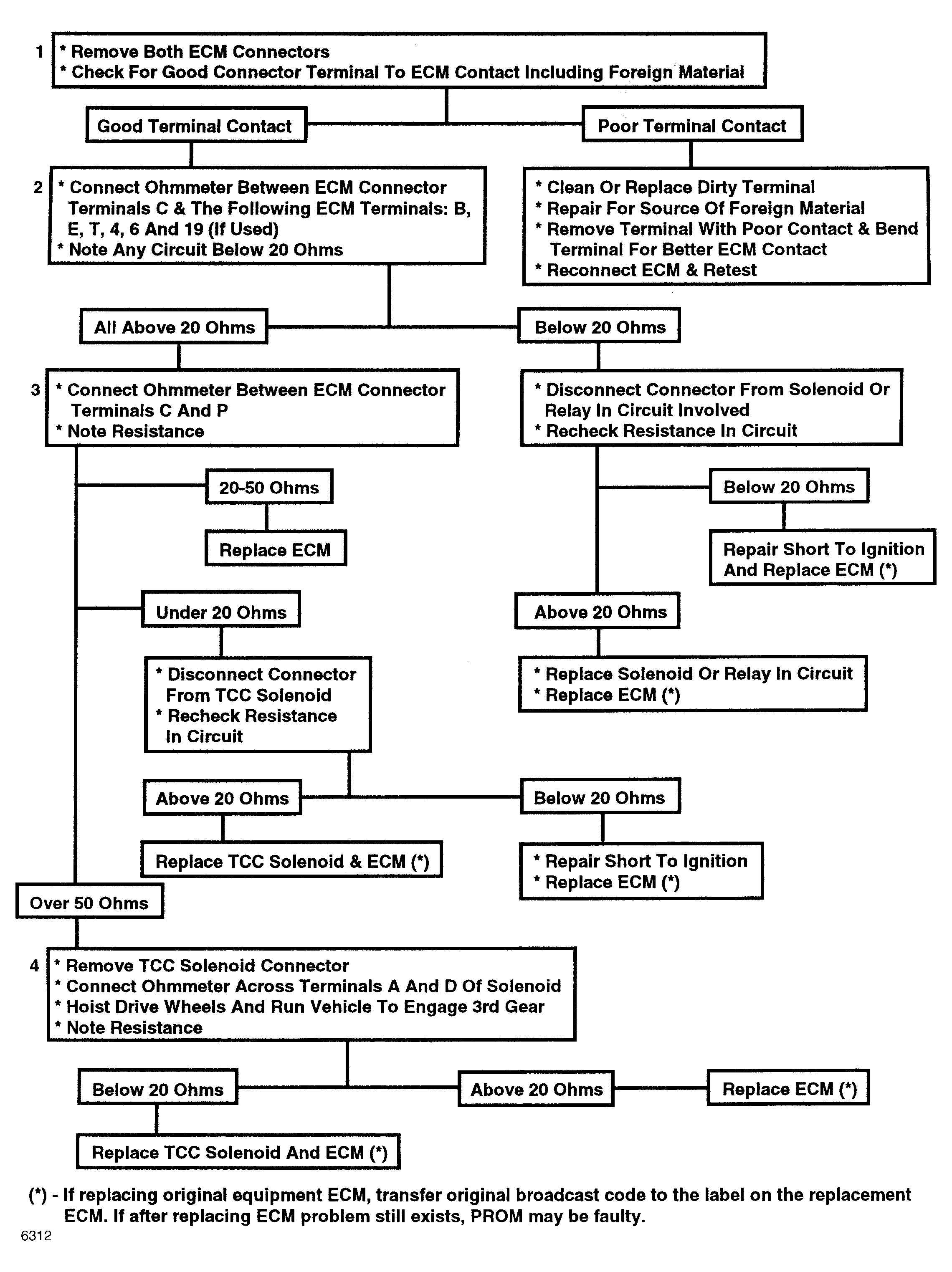

Fig 1: Flow Chart C1D - MAP & BARO Output Check

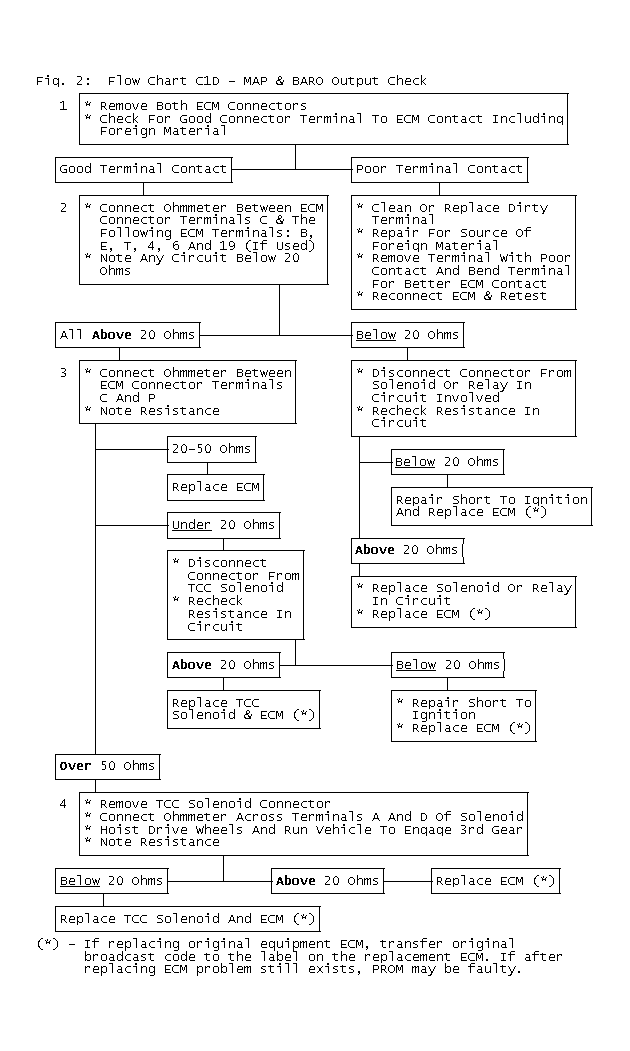

Fig 2: Fig. 2: Flow Chart C1D - MAP & BARO Output Check
