ECM Terminal Id

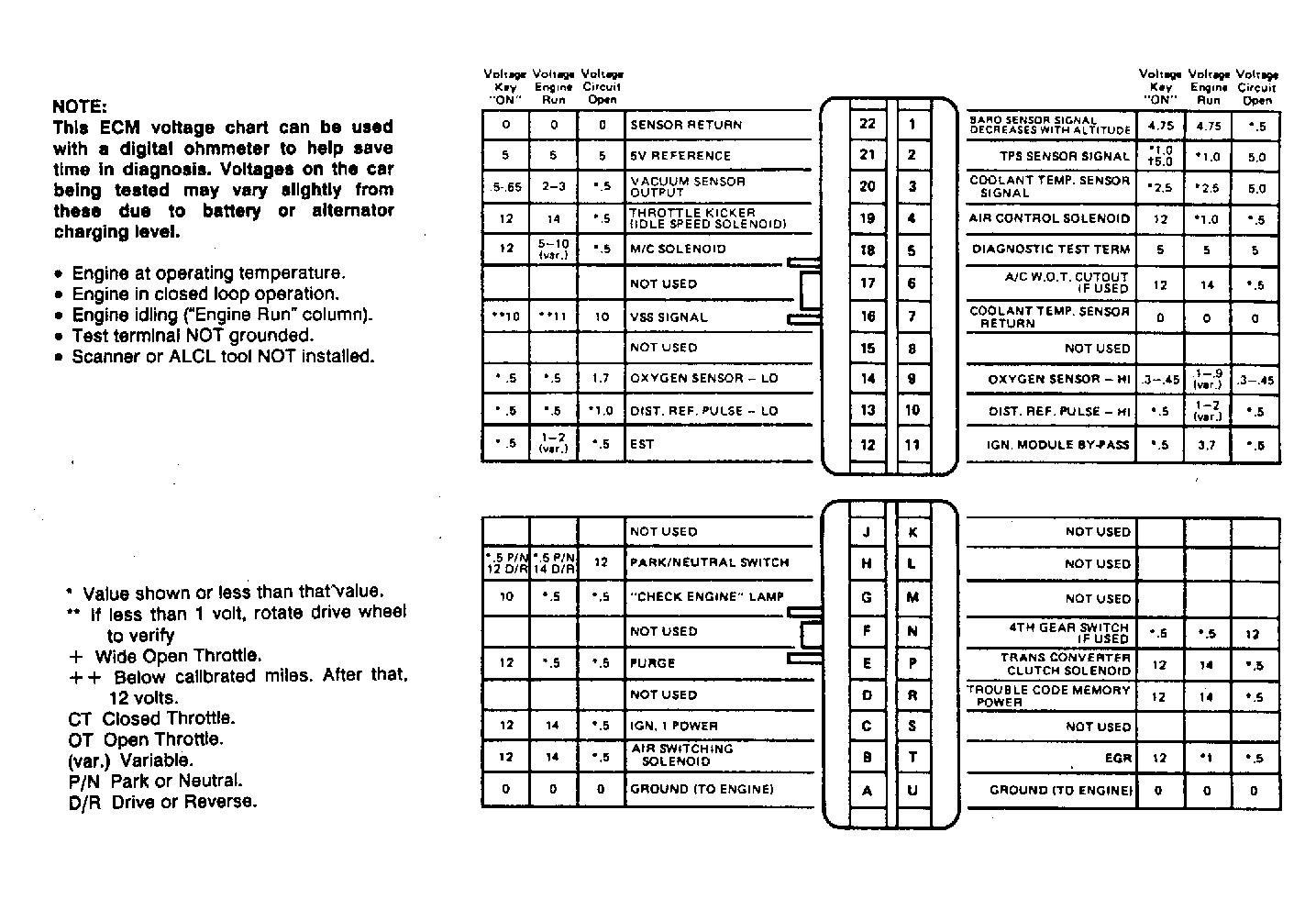

Fig 1: ECM Terminal ID (2.8L Engine)

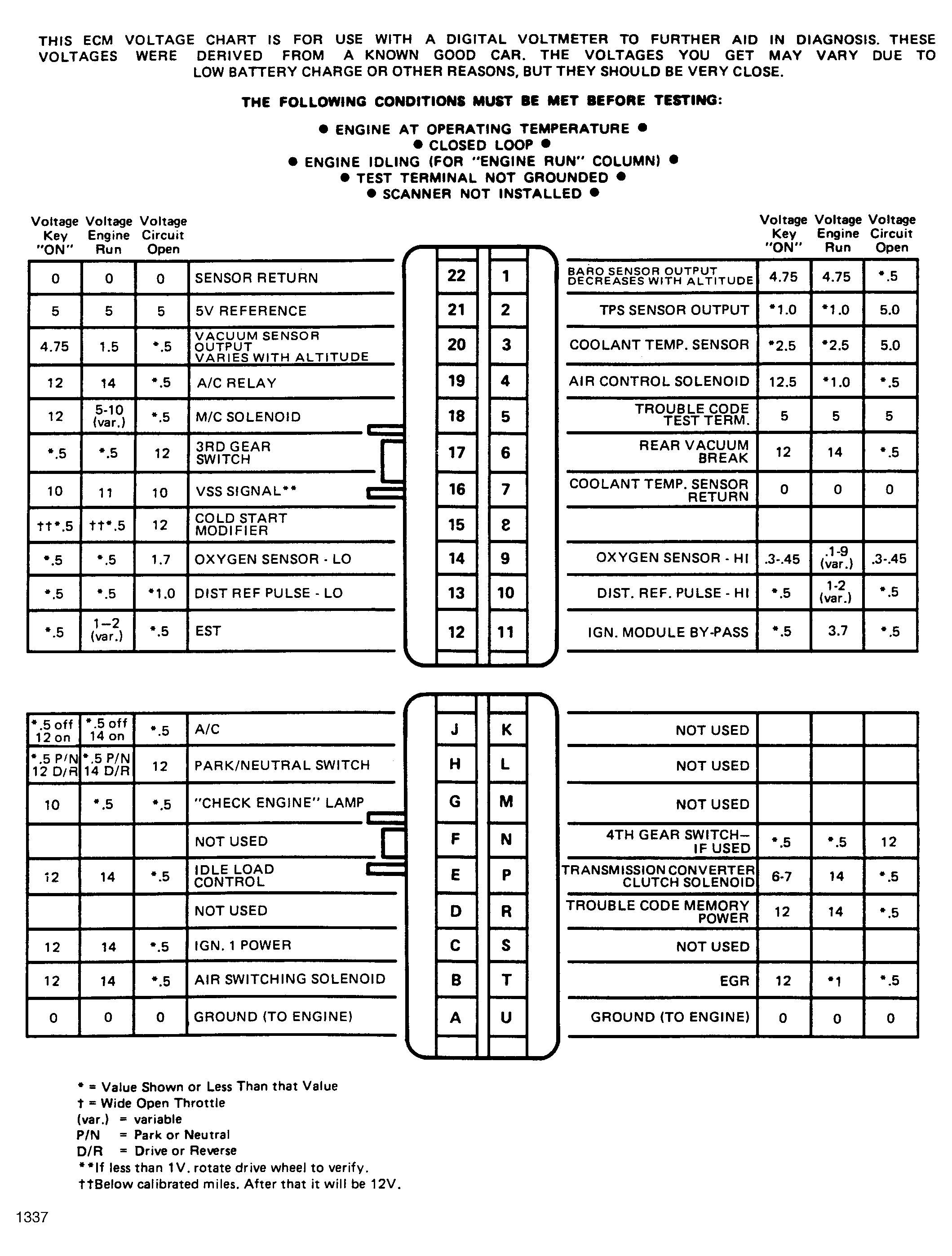

Fig 2: ECM Terminal ID (3.0L, 3.8L, & 4.1L Engines)

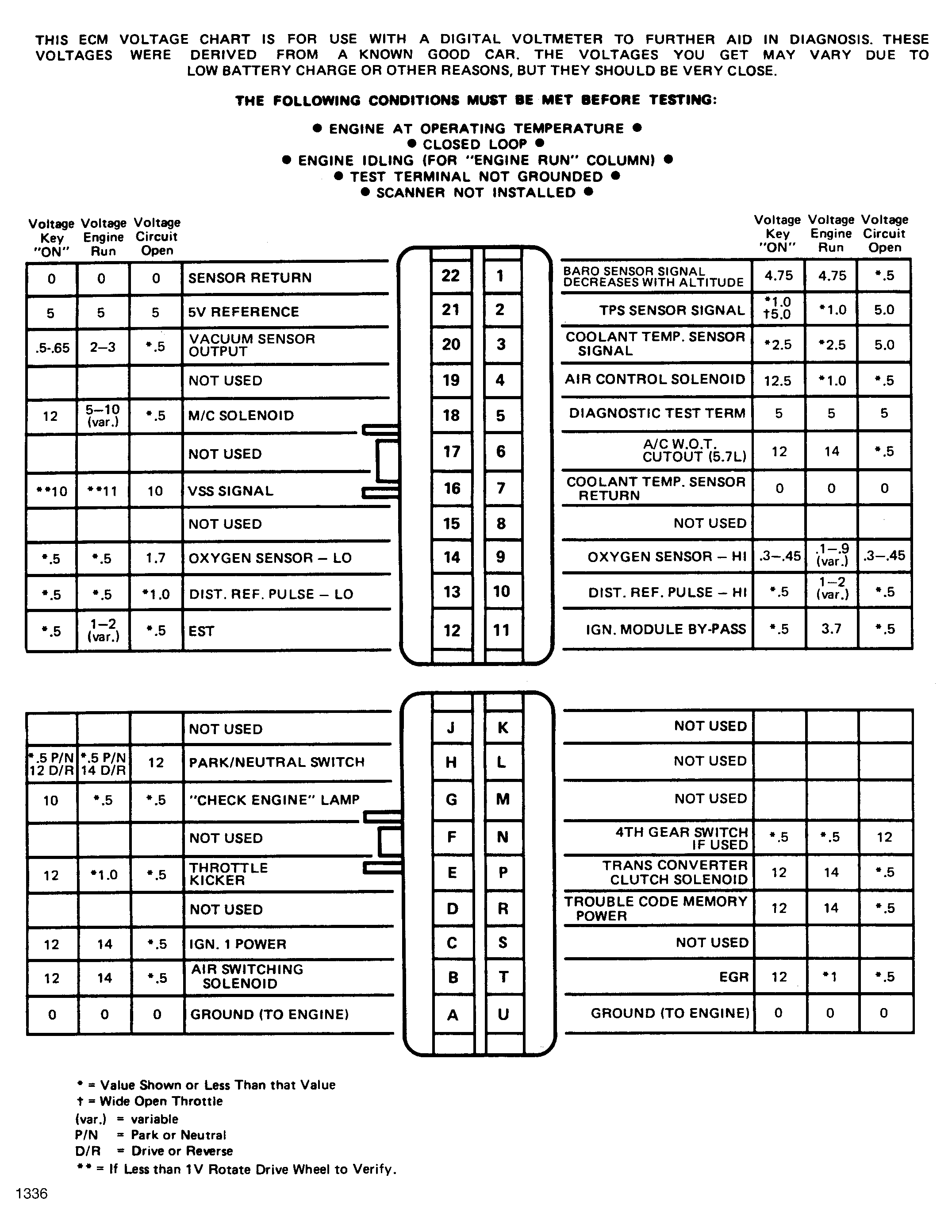

Fig 3: ECM Terminal ID (5.0 Except VIN "Y" & 5.7L Engines)

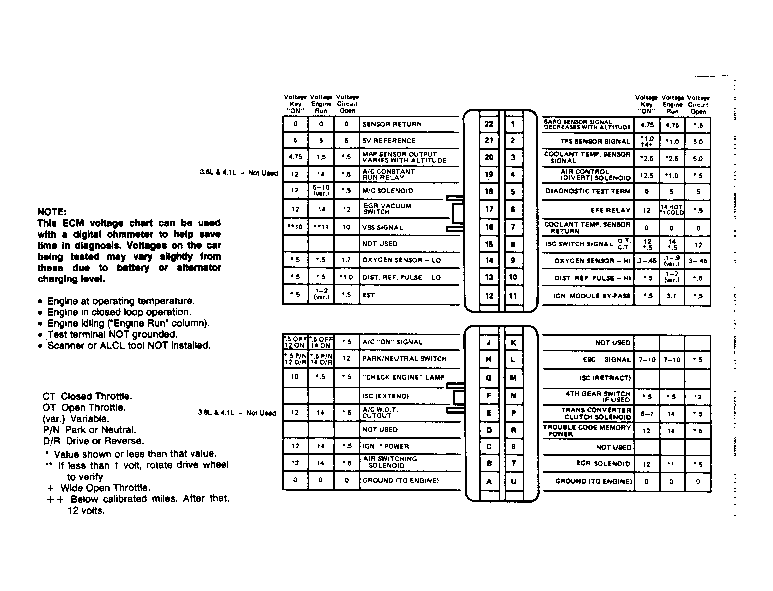

Fig 4: ECM Terminal ID (5.0 VIN "Y" Engine)
