Engine Control Module: Locations

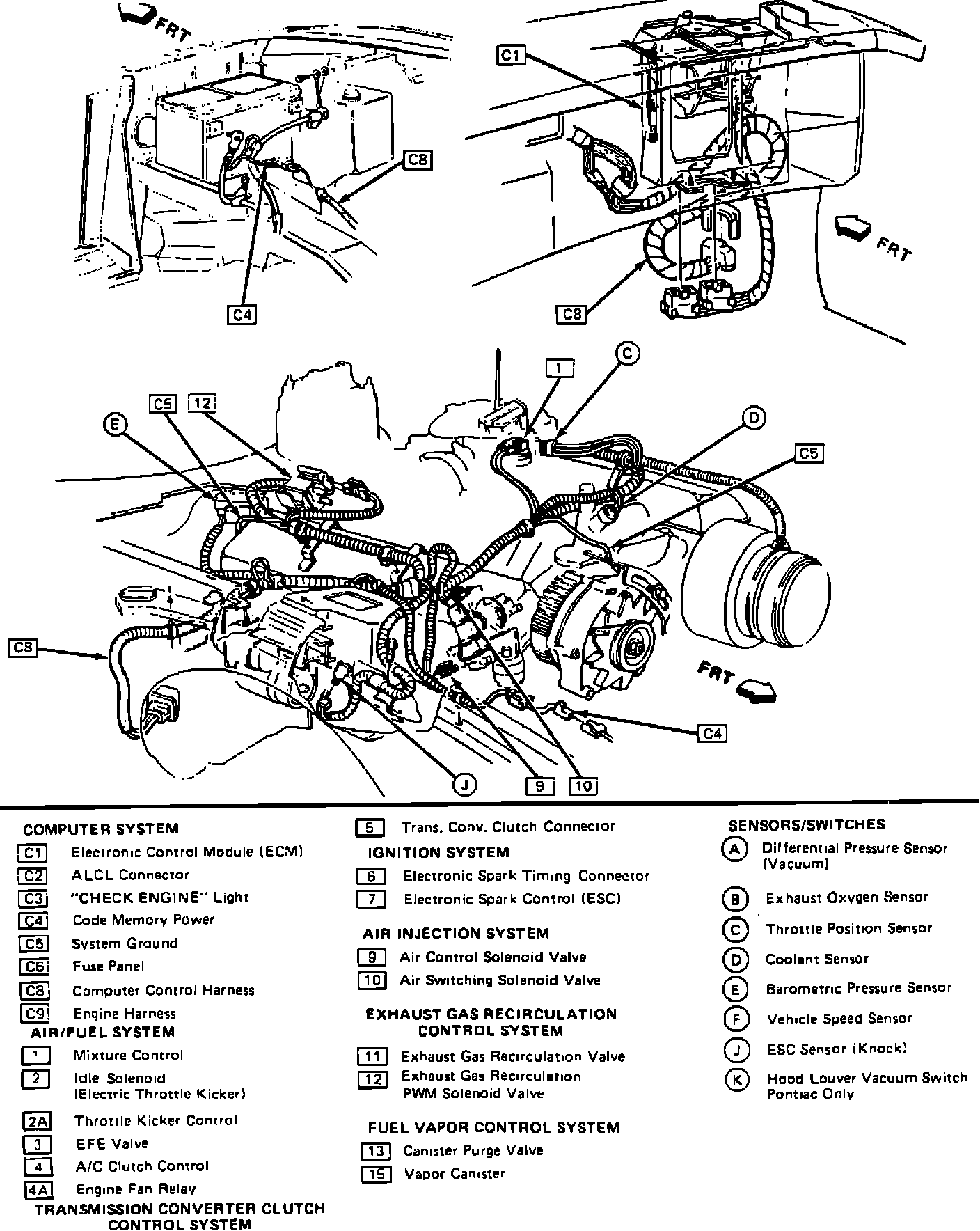

ECM Wiring Harness (Part 1 Of 2).:

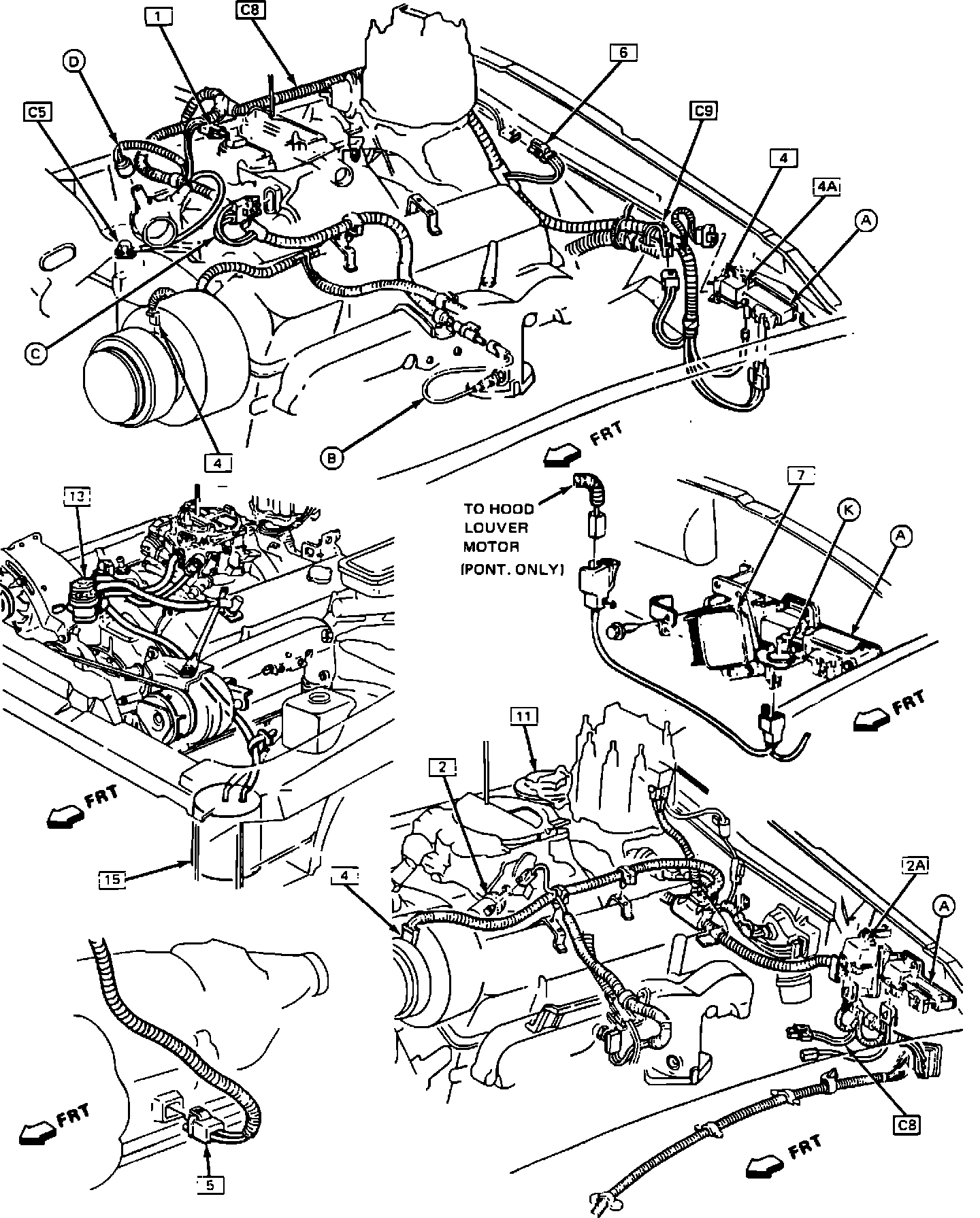

ECM Wiring Harness (Part 2 Of 2).:

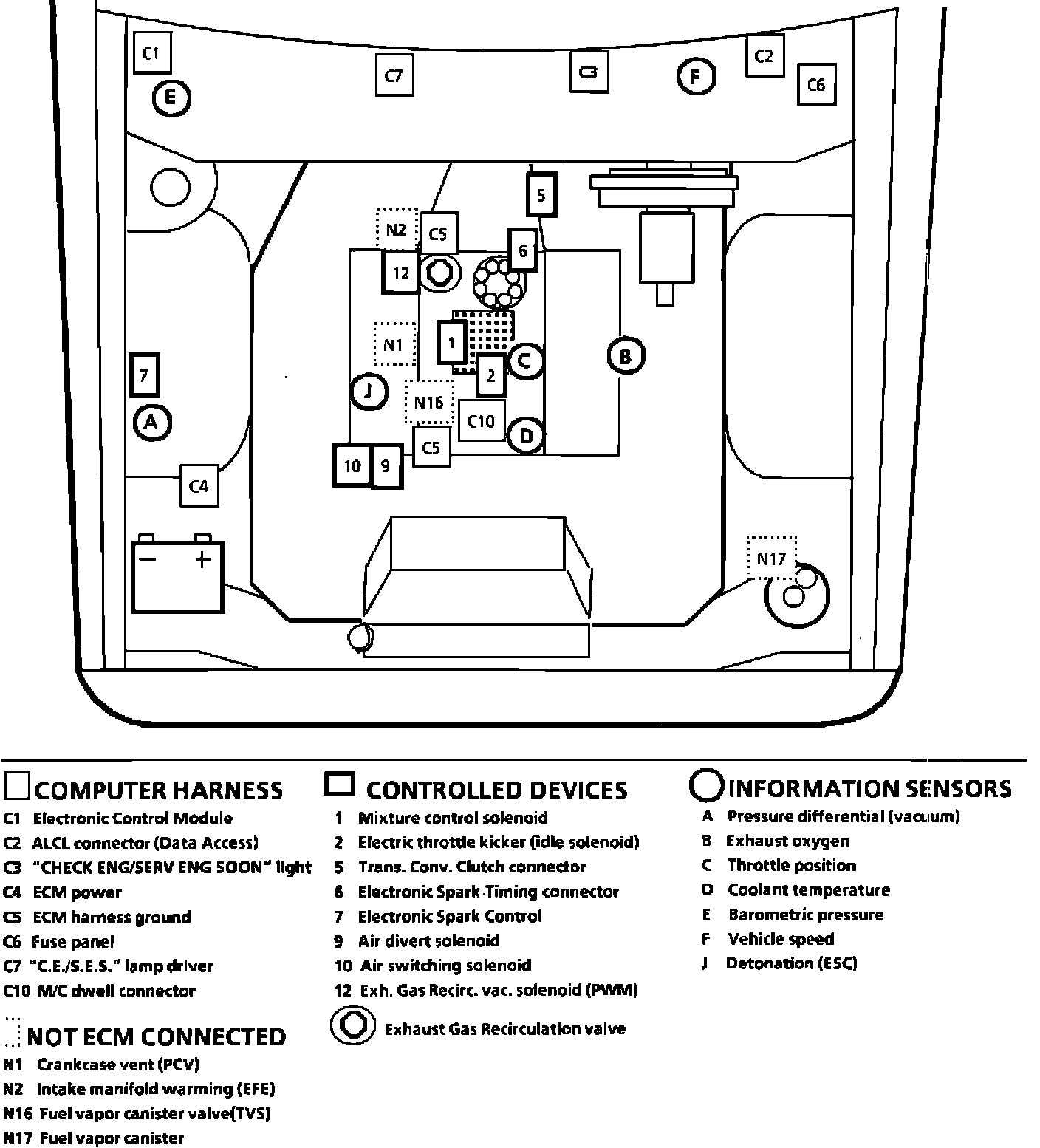

Underhood Component Locations.:




RH Shroud Behind Kick Panel

Applicable to: 1985 V8-305/5.0L Engine
