Port Fuel Injection

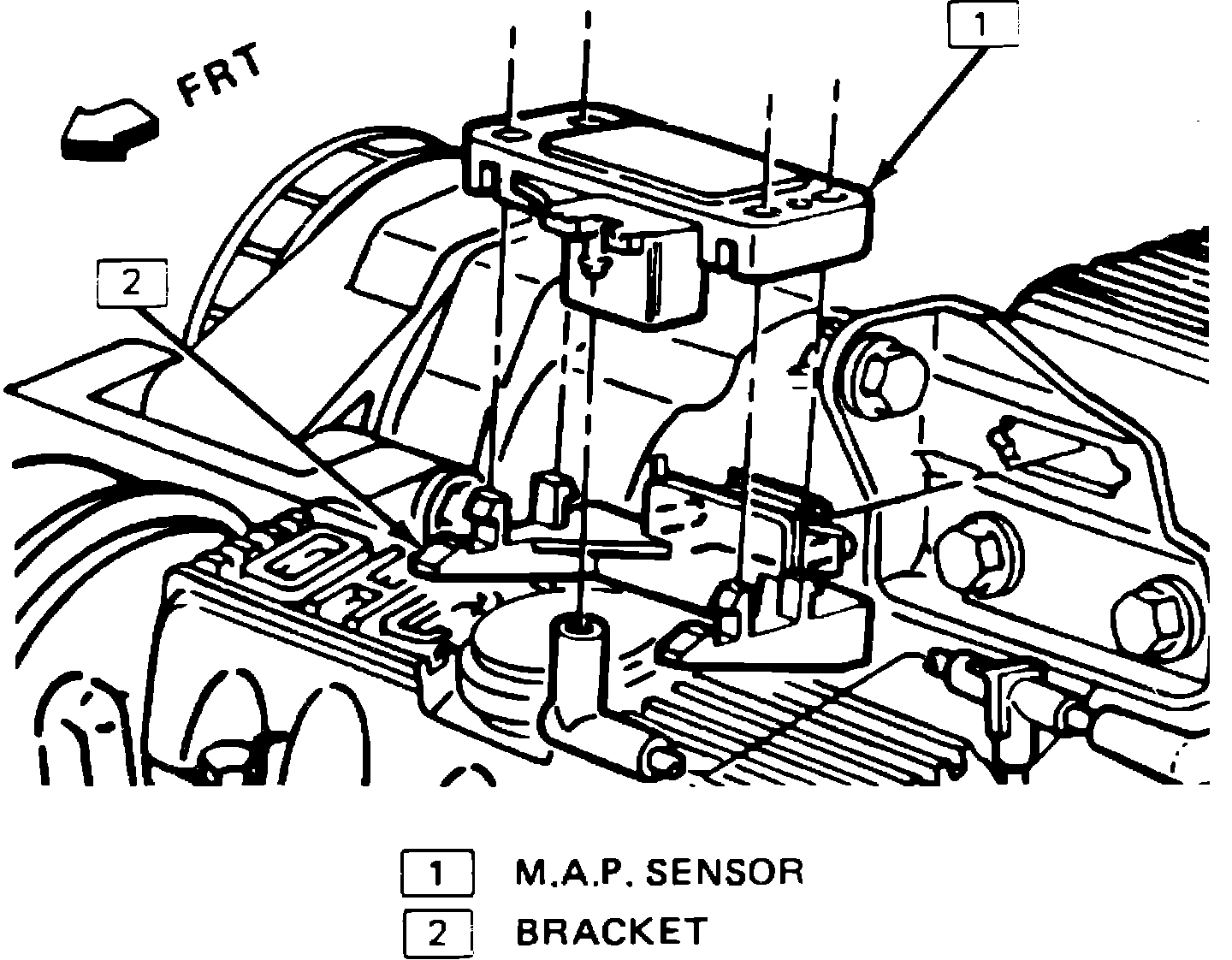

Fig. 341 MAP sensor removal. 4-110 (1.8L) Turbo:
To replace MAP sensor, refer to Fig. 341.

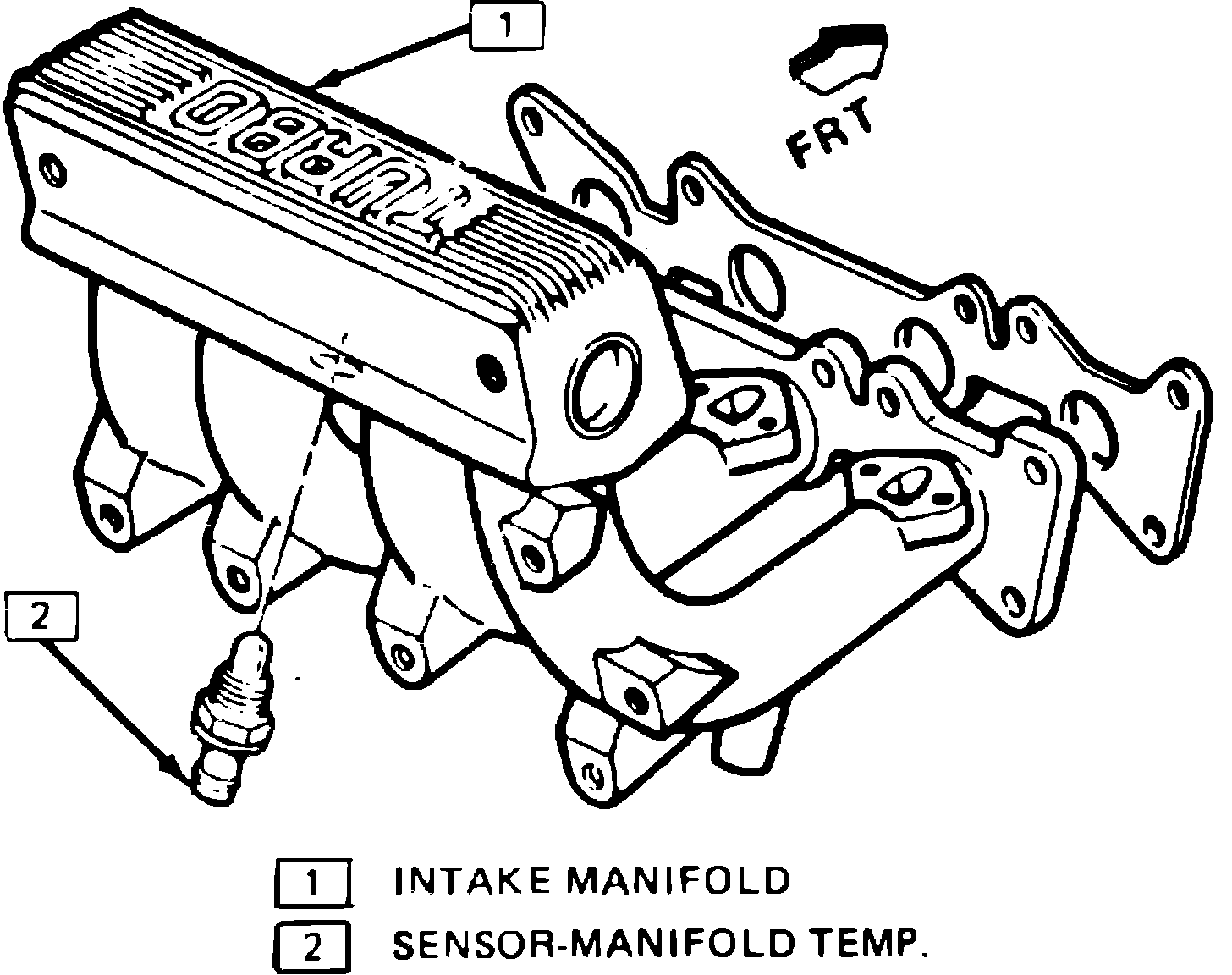

Fig. 342 MAT sensor removal. 4-110 (1.8L) Turbo:
To replace MAT sensor, refer to Fig. 342.
To replace MAP sensor, refer to Fig. 341.
To replace MAT sensor, refer to Fig. 342.
