Ignition Coil: Service and Repair

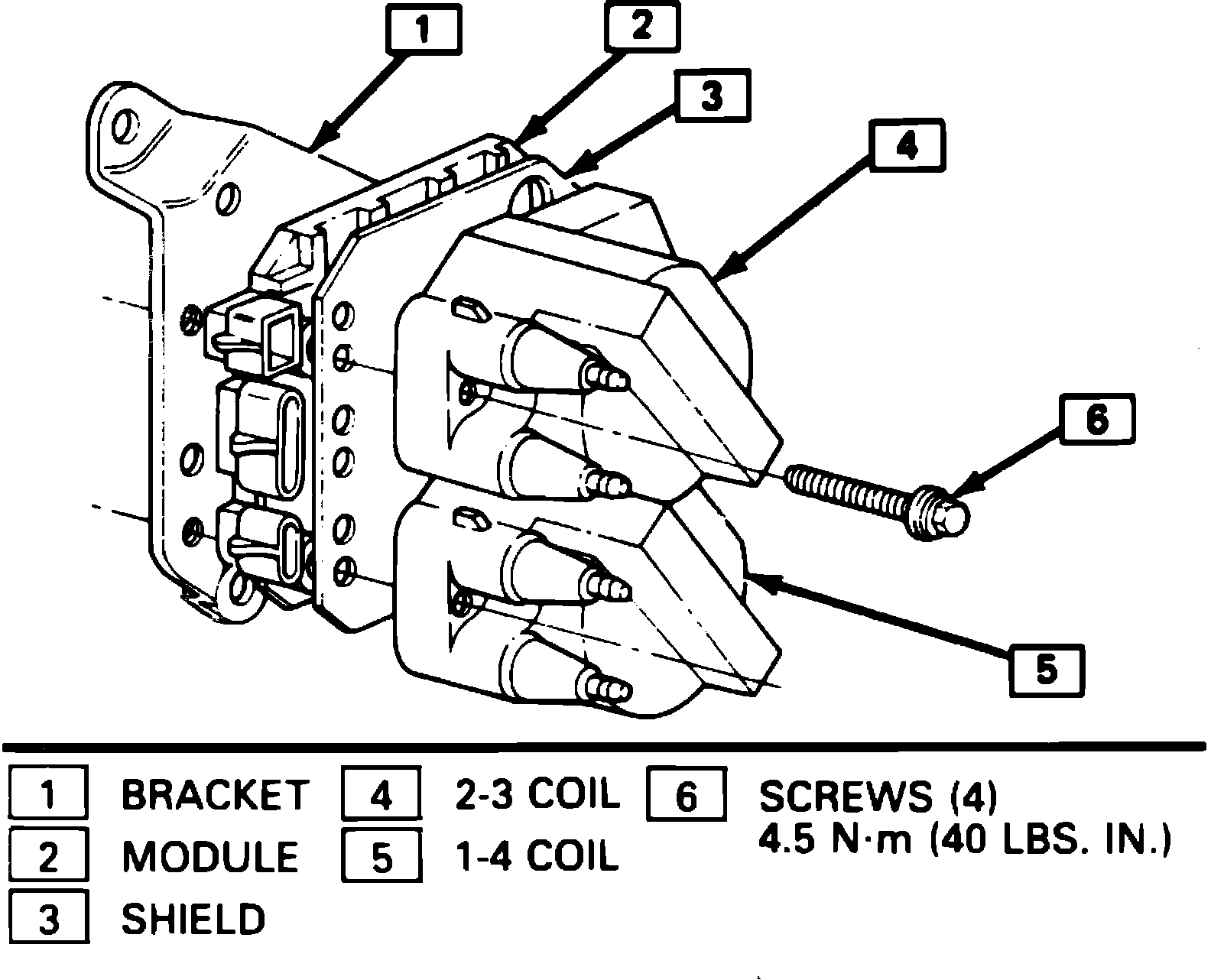

Fig. 12 Exploded view of DIS module assembly. 4-121/2.0L models:

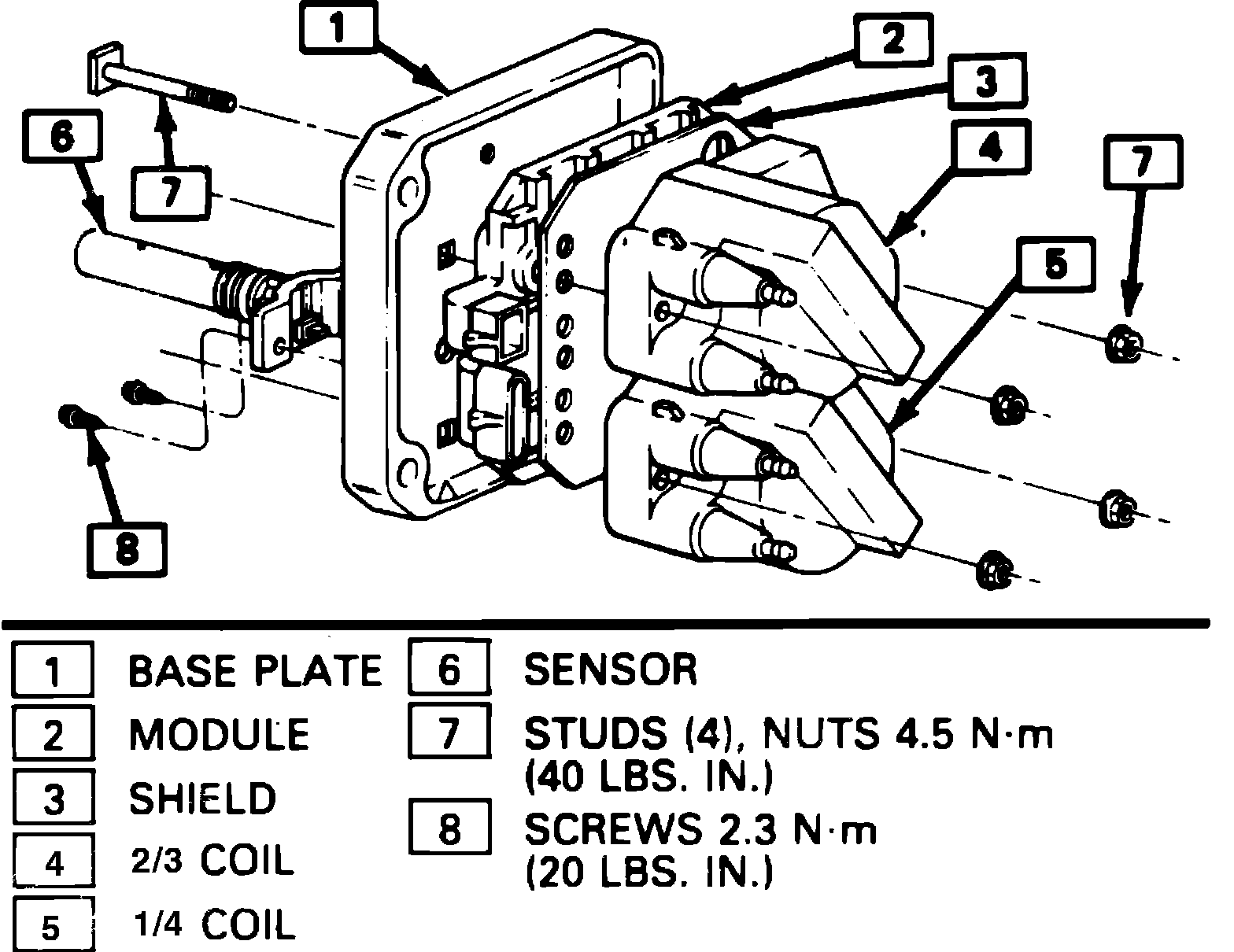

Fig. 13 Exploded view of DIS module assembly. 4-151/2.5L models:

1. Remove coil retaining screws on 4-121/2.0L and V6-173 models or nuts on 4-151/2.5L models, then separate coils from module, Figs. 12 and 13.
2. Connect coil
3. Insert attaching nuts or screws as applicable, then torque to 40 inch lbs.
