Engine Control Module

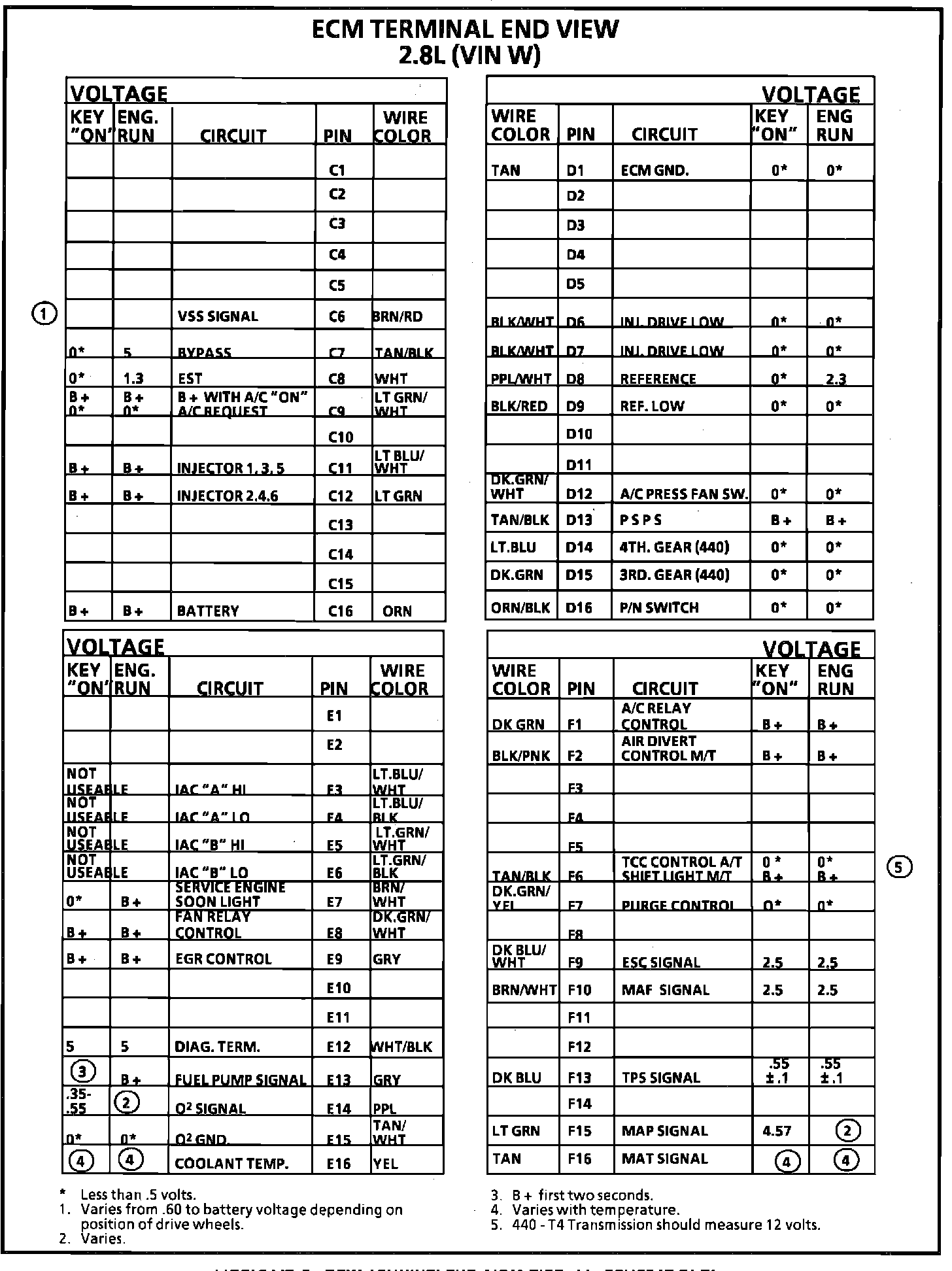

ECM Terminal I.D. & Voltage Specifications (Part 1 of 2):

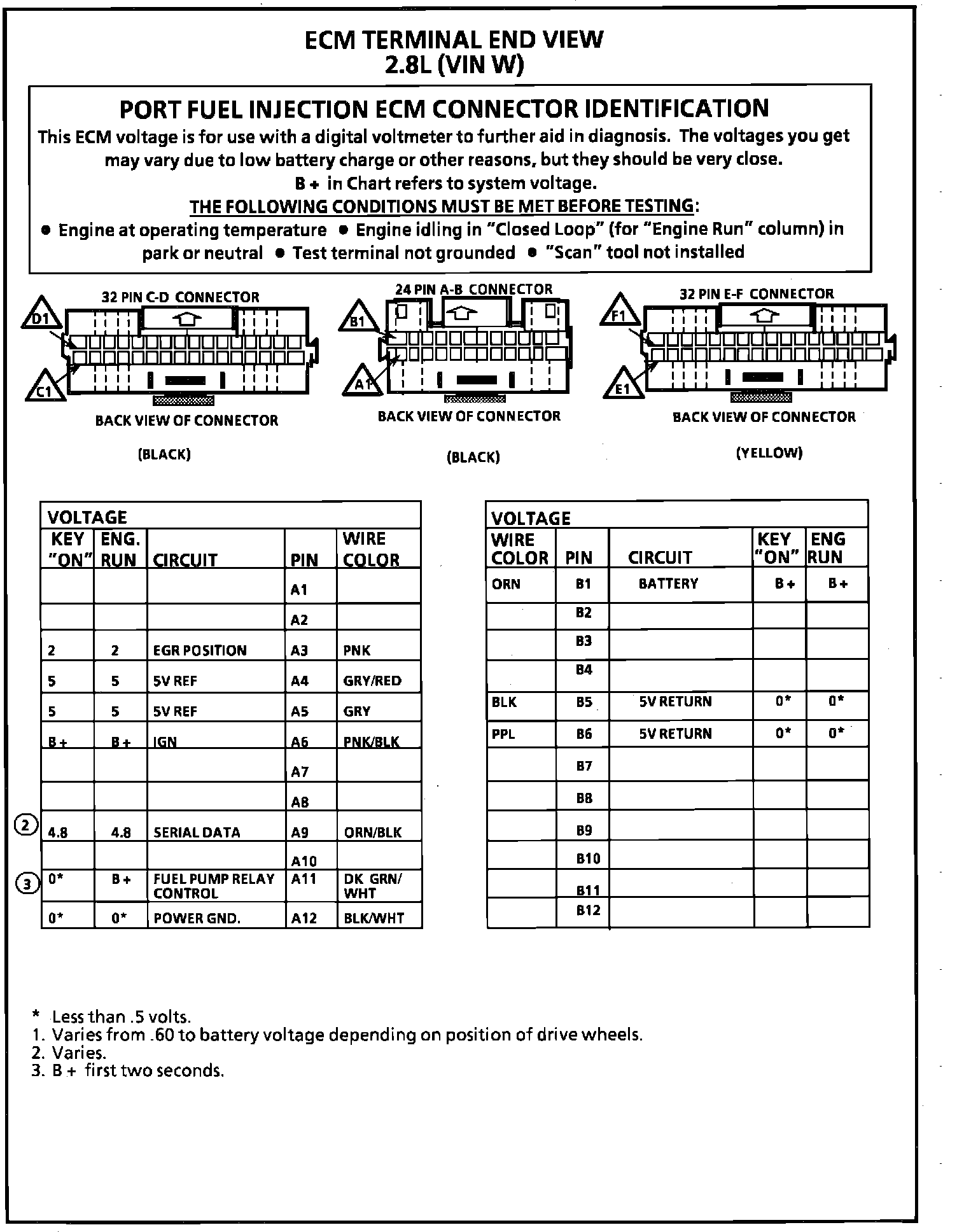

ECM Terminal I.D. & Voltage Specifications (Part 2 of 2):
