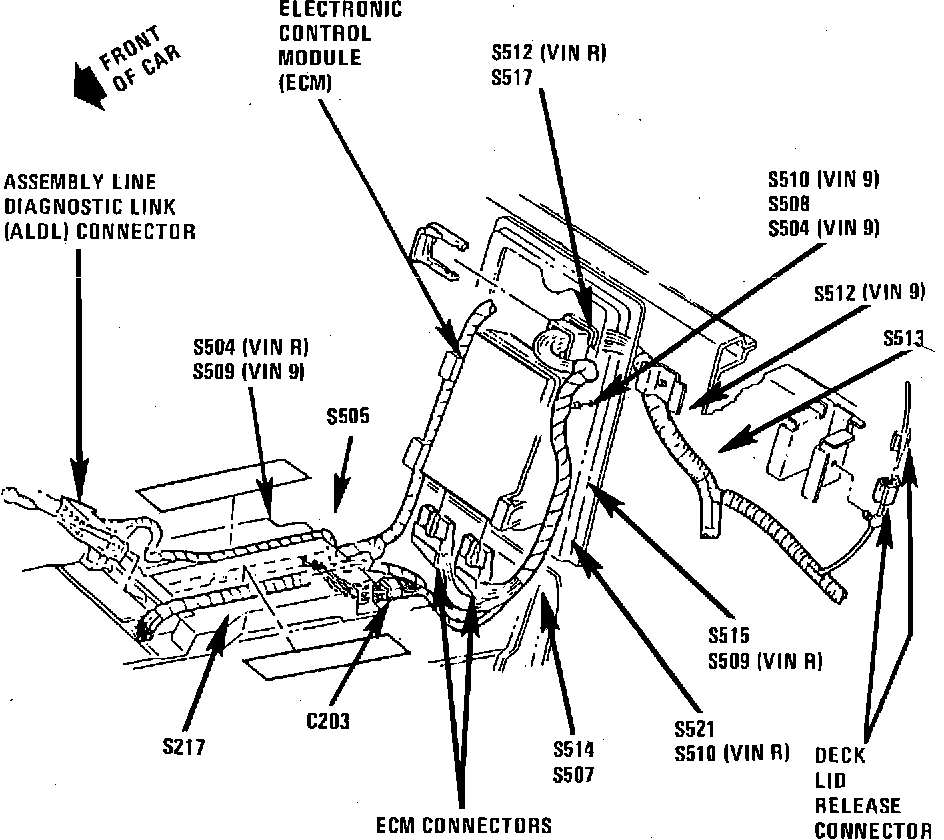

Electronic Control Module (ECM)
Between Seats, Rear Bulkhead.:
Between Seat, On Rear Bulkhead
Applicable to: 1987
