ECM Power Harness

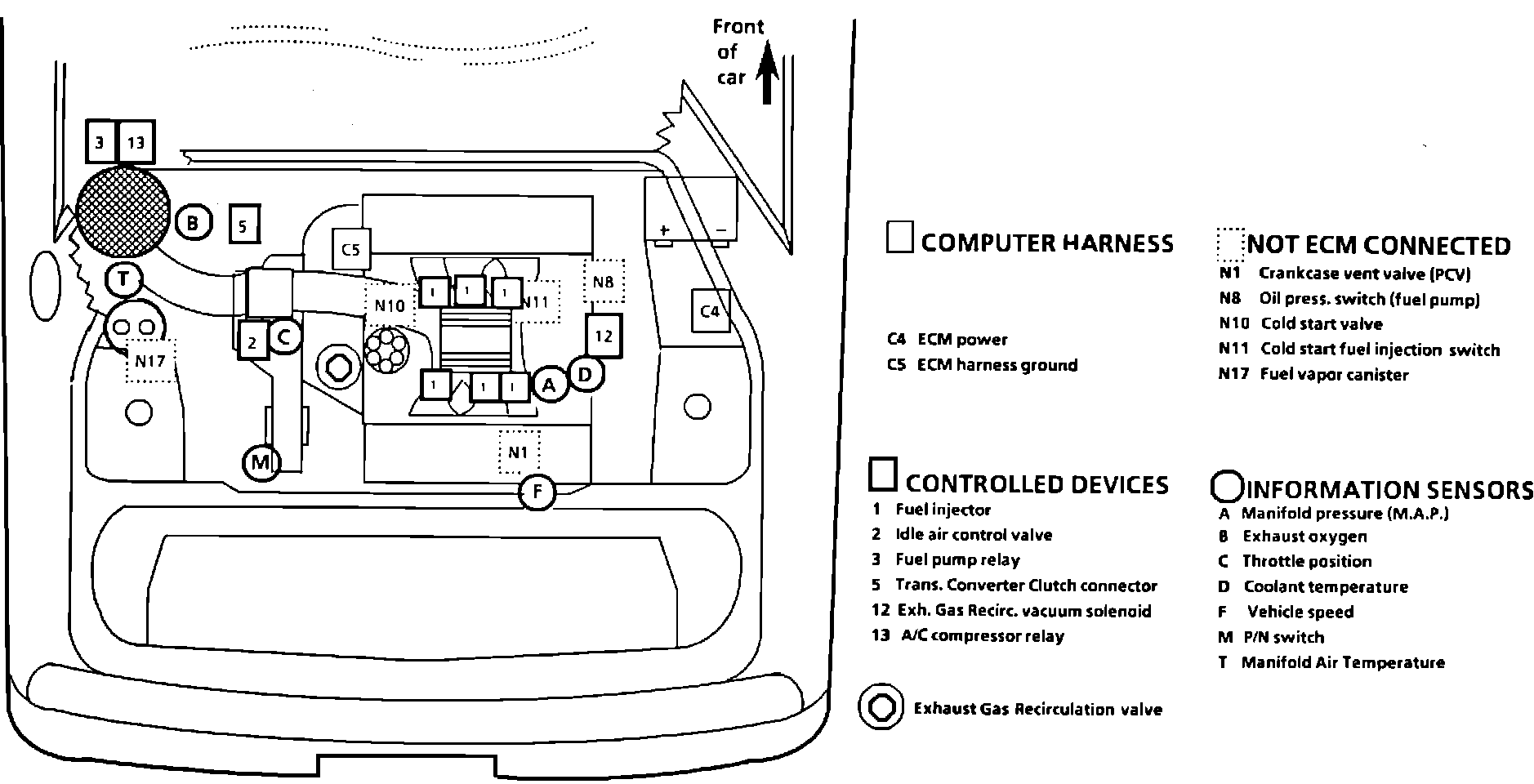

Engine Compartment Component Locations.:
LH Front Of Engine
Applicable to: 1987 V6-173/2.8L
