Service Point Locations

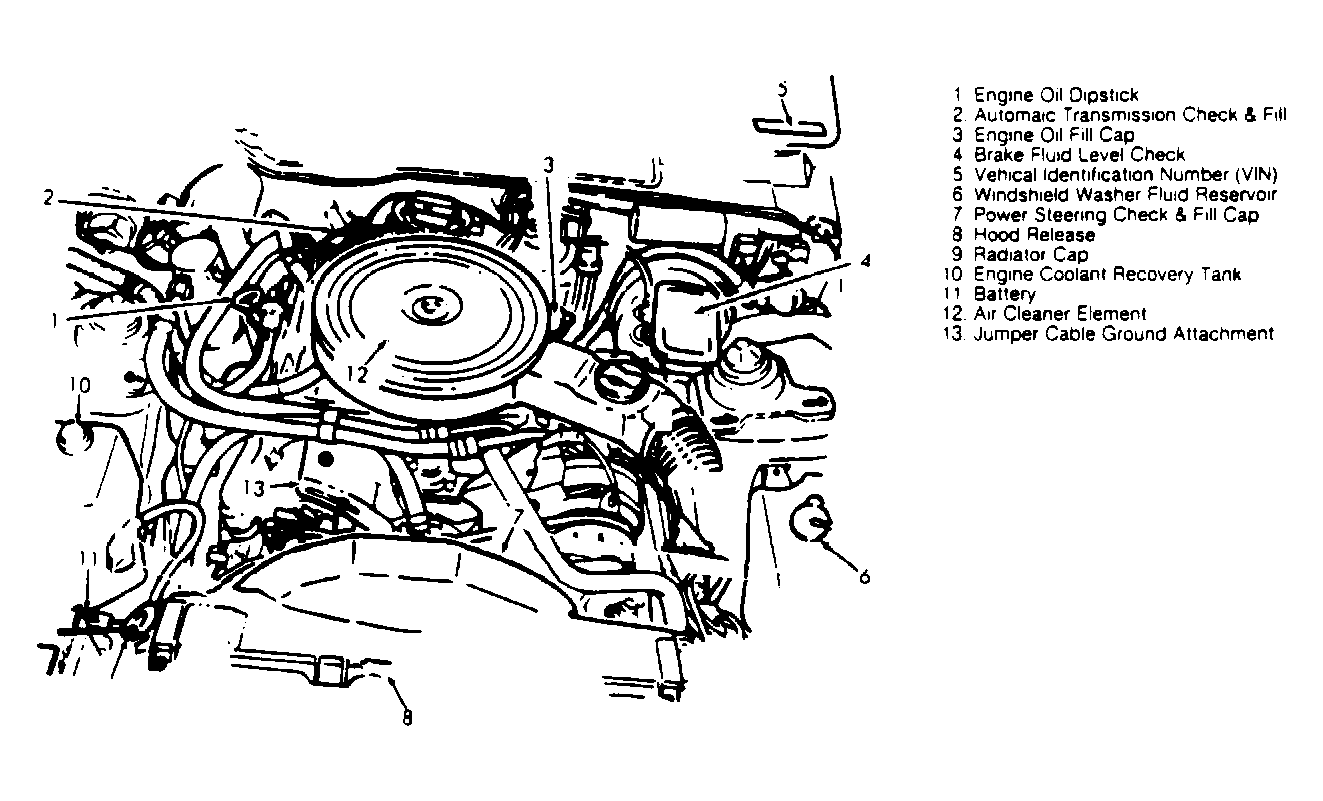

Fig 1: 1983-92 Engine Service Point Locations (Typical)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
